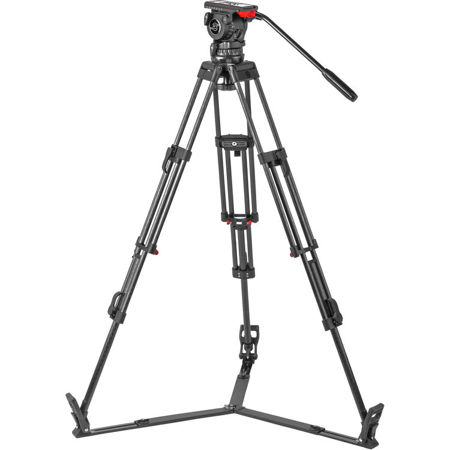

Sachtler FSB 10 T Fluid Head and ENG 2 CF Carbon Fiber Tripod System
See all Sachtler items

Sachtler FSB 10 T Touch & Go Mechanism Fluid Head and ENG 2 CF Carbon Fiber Tripod System

SKU: SC1048
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Sachtler FSB 4 + 75/2 Mk II w/Gnd: Picture 1 regular
Sachtler FSB 4 Fluid Head w/75/2 AL MK II Aluminum Tripod, SP 75 Ground Spreader
$1,890.00
Sachtler FSB 4 CF w/Gnd Sprdr: Picture 1 regular
Sachtler FSB 4 Fluid Head with 75/2 CF MK II CF Tripod and SP 75 Ground Spreader
$2,060.00
Sachtler FSB 4 + 75/2 Mk II w/Mid: Picture 1 regular
Sachtler FSB 4 Fluid Head with 75/2 AL MK II Tripod, Mid Spreader & Rubber Feet
$1,380.00
Sachtler FSB 4 CF w/Mid Sprdr: Picture 1 regular
Sachtler FSB 4 Fluid Head with 75/2 CF MK II Tripod, Mid Spreader & Rubber Feet
$2,060.00$1,957.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Sachtler FSB 10 T Specifications

  • Fluid Head: Load Capacity

    8.8 - 26.5lbs (3.99kg - 12.02kg)

  • Fluid Head: Diameter/Thread

    100mm

  • Fluid Head: Counter Balance System

    Spring-loaded (Stepped counterbalance mechanism)

  • Fluid Head: Counter Balance Range

    10 steps

  • Fluid Head: Center of Gravity

    Maximum payload has been measured at 100mm

  • Fluid Head: Quick Release/Wedge Plate

    Touch & Go camera plate S

  • Fluid Head: Tilt Drag

    5 steps, plus zero

  • Fluid Head: Tilt Range

    +90 deg. to -70 deg.

  • Fluid Head: Tilt Lock

    Yes

  • Fluid Head: Pan Range

    360 deg.

  • Fluid Head: Pan Lock

    Yes

  • Fluid Head: Leveling Bubble/Illuminated

    Yes/Yes (battery powered)

  • Fluid Head: Battery

    CR2032 3 V battery for illuminated bubble level (included)

  • Fluid Head: Pan Bar

    DV 75 single pan bar (included)
    Diameter: 0.63" (16mm) / 1" (25.40mm)
    Length: 16.9" (429.26mm)

  • Fluid Head: Temperature Range

    -40 to 140 deg. F (-40 to 60 deg. C)

  • Fluid Head: Height

    7" (177.80mm)

  • Tripod Legs: Material

    Carbon Fiber

  • Tripod Legs: Load Capacity

    88lbs (39.92kg)

  • Tripod Legs: Bowl Diameter/Thread

    100mm 4" Half Bowl

  • Tripod Legs: Minimum Height

    15.5" (393.70mm)

  • Tripod Legs: Maximum Height

    59.0" (1498.60mm)

  • Tripod Legs: Leg Stages/Sections

    3-Feb

  • Tripod Legs: Leg Lock Type

    Quick Clamp Torque Lock

  • Tripod Legs: Center Brace

    No

  • Tripod Legs: Mid-Level Spreader

    No

  • Tripod Legs: Spiked/Retractable Feet

    Spiked

  • Tripod Legs: Folded/Transport Length

    27.2" (690.88mm)

  • Tripod Spreader: Construction

    Plastic

  • Tripod Spreader: Type

    On-Ground

  • Tripod Spreader: Adjustable

    Yes

  • Tripod Spreader: Minimum Length

    13" (330.20mm)

  • Tripod Spreader: Maximum Length

    22.8" (579.12mm)

  • Padded Bag: Material

    Exterior: Cordura nylon
    Interior: Padded

  • Padded Bag: Type of Closure

    Zipper

  • Padded Bag: Accommodates

    Sachtler tripods with fluid heads up to 35" long

  • Padded Bag: Padded

    Yes

  • Padded Bag: Carrying/Transport Options

    Shoulder strap
    Interlocking handles

  • Dimensions (L x W x H)

    Padded Bag (Interior): 35.4 x 7.9 x 8.5" (899.16 x 200.66 x 215.90mm)

  • Weight

    Fluid Head: 5.9lbs (2.68kg)
    Tripod Legs: 5.3lbs (2.40kg)
    Tripod Spreader: 1.8lbs (0.82kg)
    Padded Bag: 3.6lbs (1.63kg)

  • UPC Code

    05060312083103

About Sachtler FSB 10 T

FSB 10 T Fluid Head - Smooth As Silk
Extending the renowned FSB family, the FSB 10 fluid head is a new entry-level 100mm solution for work in news, documentaries, wildlife and everything in between. Backed by solid German engineering, the FSB 10 is an affordable introduction to the 100 mm class and perfectly supports today's digital cinema-style cameras, such as the Sony FS7, Canon's C500 and the Blackmagic Ursa Mini. With a higher payload than the FSB 8, the FSB 10 allows users to employ a wider range of system configurations using the convenient Touch & Go interface.

• 10 counterbalance steps
• 5 horizontal and vertical grades of drag, +0

ENG 2 CF Carbon Fiber Tripod System
The ENG 2 CF is one of the best-selling tripods in the EB section. The dual extractible carbon fiber tripod with Sachtler quick clamping system is comfortable to use, extremely light and yet reliable and robust.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Sachtler FSB 10T Fluid Head with Touch & Go Mechanism
  • CF-100ENG 2CF Carbon Fiber Tripod Legs
  • Spreader SP 100 On-Ground Tripod Spreader
  • ENG 2 Padded Bag
  • Sachtler 2 Year Warranty (1 Year + 1 Year with Registration)
