Soundcraft Vi1000 96-channel Compact Digital Mixing Console

SKU: SC5083487 MFR: 5083487
Earn VIP Reward Points

Key Features

  • Achieve pristine sound quality with this 96-channel digital recording mixer.
  • This mixer's 24 bus outs give you superior EQ control for live sound perfection.
  • Enjoy low noise and high headroom, ideal for critical recording applications.
  • Seamlessly integrate with your DAW via the built-in USB interface for easy recording.
  • Built for durability, this Soundcraft mixer is perfect for touring and venue installs.
  • Customize your sound with Lexicon FX and dynamic EQ for polished, professional mixes.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Soundcraft Vi1000 Specifications

Applications

Applications

Jump to...
  • Applications

    Rental Companies
    Touring
    Corporate A/v
    Music Venue Installation

Audio Processing

Jump to...
  • Input Channels

    96

  • Busses

    24 mono or stereo, group/aux/matrix

  • Groups

    VCA Groups: 16

  • Inserts

    Insert Points: 64 external / 8 BSS DEQ / 4x Lexicon

  • Tie Lines

    128

  • Equalizer

    Dynamic EQ: 16x BSS DPR901ii

  • FX

    Lexicon FX: 4x stereo multi-FX units

  • Automatic Mic Mixing

    2x Studer vMIX, maximum 16 channels each

  • Capacity

    I/O Capacity: 212 input / 212 output

  • Mic/Line Inputs

    16x XLR
    16x preamps

  • Line Outputs

    16x XLR

  • AES Audio

    AES/EBU Input/Output: 2x stereo inputs / 2x stereo outputs

  • MADI I/O

    Optical MADI and/or Dante I/O: 64 inputs / 64 outputs

  • Expansion Slots

    2x 64 inputs / 64 outputs

  • Sample Rate

    48 kHz

  • Internal Clock

    Accuracy: +/-50 ppm Jitter: +/-10 ns

  • Latency

    <2 ms, (stagebox input to local output)

  • Internal DSP Resolution

    40-bit floating point

  • Frequency Response

    20 Hz to 20 kHz (+0/-1, mic in to line out)

  • THD+N

    0.004%, (mic in to line out, 20 Hz to 20 kHz)

  • EIN

    Mic Input EIN: -128 dBu (150 Ohms source, 20 Hz to 20 kHz)

  • Residual Output Noise

    -95 dBu (Vi-Stagebox output, 20 Hz to 20 kHz)

General

Jump to...
  • Power

    Mains Voltage Operating Range: 90 to 264 VAC, 47 / 63 Hz, auto-ranging
    Main Power Consumption: 200 W (both PSUs operating)

  • Dimensions (HxDxW)

    13.8 x 31.6 x 33.2" (351 x 803 x 843mm)

  • Weight

    55 lbs (24.9kg)

About Soundcraft Vi1000

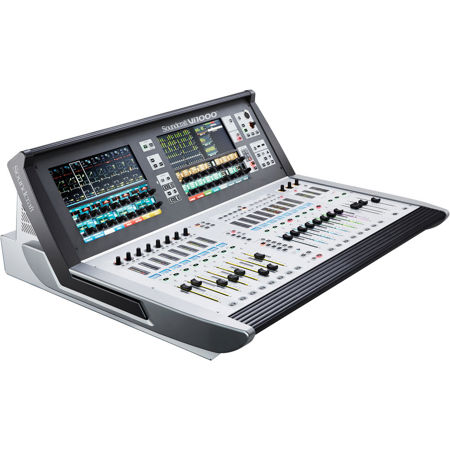

From the reputable brand Soundcraft, the Vi1000 96-channel Compact Digital Mixing Console is a sophisticated blend of advanced technology and professional-grade performance. This compact yet powerful digital mixer is the epitome of Soundcraft's acclaimed Vi Series, offering a rich feature set in a smaller, more manageable form factor.

Ideal for a range of applications, from smaller touring projects and rental companies to corporate AV applications, music venues, theaters, and HOW installations, the Vi1000 is a versatile solution for those seeking high-quality audio mixing capability. Its innovative design incorporates Vistonics II 'knobs-on-glass' functionality, ensuring easy access to the power and versatility of the mixing environment. Coupled with Soundcraft's unique Faderglow color coding, which illuminates the fader slots according to function, this console delivers an intuitive user interface for streamlined operation.

The Vi1000's design prioritizes easy-to-understand, streamlined operation, making it a perfect choice for freelance audio engineers. Its Vistonics II and Faderglow integration, along with built-in microphone monitoring, reflect Soundcraft's meticulous attention to detail, creating a mixing environment that inspires optimal performance.

At the heart of the Vi1000's intuitive design is the Vistonics II 'knobs-on-glass' user interface. This innovative feature ensures each control is clearly labeled, regardless of its assignable nature. The SpiderCore DSP engine, which mixes FPGA and DSP technology, ensures pristine audio quality, offering a total capacity of 96 channels to mix and 24 mono or stereo mix busses.

The Vi1000's comprehensive I/O system, linked directly to the SpiderCore DSP engine, provides a total of 212 x 212 simultaneous inputs and outputs. It includes 16 channels of on-board HQ mic preamps, 16 on-board line outs, 2 pairs of AES/EBU inputs and outputs, and a 64ch MADI and Dante recording interface.

The console comes standard with Dante networking, an uncompressed, multi-channel digital media networking technology with near-zero latency and synchronization. It also features integrated world-class Lexicon reverb and delay, and built-in BSS DPR901II Dynamic EQ Processing.

The Vi1000 also offers built-in monitoring support for wireless microphone systems from AKG, Shure, and Sennheiser, and includes vMIX Automatic Microphone Mixing capability for stress-free dialogue mixing.

With its proven electronic and mechanical design, the Soundcraft Vi1000 96-channel Compact Digital Mixing Console delivers rock-solid reliability and unparalleled performance, making it a worthy investment for any audio professional.

Soundcraft Vi1000 Features

  • 96 input channels with 24 mono/stereo mix busses, plus LRC master busses
  • Vistonics II proprietary 'knobs-on-glass' functionality; key to the console's streamlined, intuitive operational interface and widely praised as the easiest-to-use digital console on the market
  • SpiderCore integrated DSP engine ensures superior audio performance
  • Soundcraft Faderglow color coding illuminates the fader slots according to function
  • Integrated Dante interface facilitates instant connection to industry standard Dante audio networks
  • Two double-slot expansion slots for Stagebox connection or option card installation
  • Built-in Lexicon world-class reverb, delay and pitch effects from the industry's leading brand
  • Onboard BSS DPR901ii dynamic EQ digitally modelled after the original, industry-standard BSS analog unit
  • Integrated microphone monitoring for AKG, Shure and Sennheiser wireless systems
  • Included vMIX automatic microphone mixing for two groups of up to 16 mics in conference or theatrical applications
  • Proven electronic and mechanical design delivers the performance and reliability Vi Series consoles are known for

Key Features

  • Achieve pristine sound quality with this 96-channel digital recording mixer.
  • This mixer's 24 bus outs give you superior EQ control for live sound perfection.
  • Enjoy low noise and high headroom, ideal for critical recording applications.
  • Seamlessly integrate with your DAW via the built-in USB interface for easy recording.
  • Built for durability, this Soundcraft mixer is perfect for touring and venue installs.
  • Customize your sound with Lexicon FX and dynamic EQ for polished, professional mixes.

What's in the box:

  • Soundcraft Vi1000 96-channel Compact Digital Mixing Console
  • Power Cord
  • Dust Cover
  • Soundcraft 1 Year Limited Warranty
