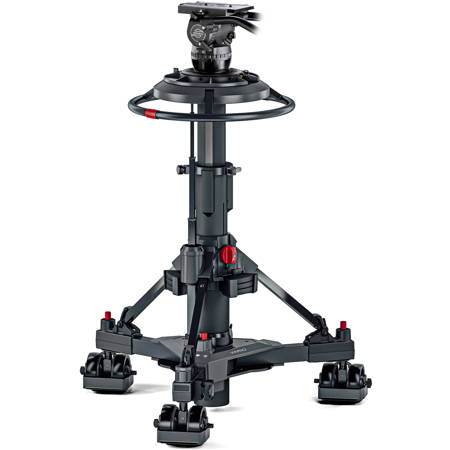

Sachtler Video 60 Plus Studio FB Fluid Head with Vario 1-70 Pedestal System

SKU: SC6085 MFR: 6085
Earn VIP Reward Points

Key Features

  • Achieve smooth, professional footage with this Sachtler fluid head, ideal for studio camera work.
  • Experience superior stability with the Vario pedestal system, perfect for demanding broadcast environments.
  • Enjoy precise control with 18-step counterbalance, ensuring smooth tilts for payloads up to 143 lbs.
  • Easily adjust your camera height from 2.95' to 5.61' with the integrated manual pump pedestal system.
  • Benefit from the robust design, supporting 44 to 127.6 lbs, making it a reliable camera stand solution.
  • Navigate studio sets effortlessly with crab & steer functionality, enhancing your video production workflow.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Sachtler System 60 Vario Specifications

General

General

Jump to...
  • Payload

    44 to 127.60 lbs (20 to 58kg)

  • Height Range

    Without spreader: 2.95 to 5.61' (0.90 to 1.71m)

  • Weight

    111.32 lbs (50.60kg)

Video 60 Plus Studio FB Fluid Head

Jump to...
  • Range

    Studio

  • Payload

    35.20 to 143 lbs (16 to 65kg)

  • Counterbalance

    18 steps

  • Drag

    9 + 0 drag settings

  • Pan Bar Length

    15.60" (400mm)

  • Pan Bar Type

    Pan bar front sections

  • Pan Bar Attachment

    28/-/-mm

  • Pan Bar Count

    2

  • Level Bubble

    Yes, illuminated

  • Adapter Viewfinder Extension

    Optional Adapter

  • Bowl Size

    Flat base

  • Camera Plate

    V-plate

  • Temperature Range

    -40 to 140 Degree F (-40 to 60 Degree C)

  • Tilt Range

    +90 Degree to -60 Degree

  • Sliding Range

    4.68" (120mm)

  • Interface Compatibility

    V-plate

  • Battery

    3x 625U or LR9 (For Built-in illuminated bubble)

  • Battery Info

    Required, Included

  • Battery Material

    Alkaline

  • Battery Type

    625U

  • Battery Quantity

    3

  • Weight

    24.42 lbs (11.10kg)

Vario Pedestal

Jump to...
  • Range

    Studio

  • Payload

    0 to 154 lbs (0 to 70kg)

  • Stages

    2

  • Perfect Balance Stages

    1

  • On Shot Stroke

    15.99" (410mm)

  • Height

    2.20 to 4.85' (0.67 to 1.48m)

  • Steering

    Crab & Steer

  • Head Fitting

    Flat Base

  • Clearance

    37.83" (970mm)

  • Integrated Pump

    Yes

  • Trim Weights

    6

  • Wheel Diameter

    5" (125mm)

  • Narrow Transit Width

    28.47" (730mm)

  • Steering Ring Diameter

    20.79" (533mm)

  • Weight

    86.90 lbs (39.50kg)

  • UPC Code

    5060896402666

About Sachtler System 60 Vario

- Video 60 Plus Studio -
When working with heavier cameras in studio or on location, being able to work quickly, effectively and safely gives you more time to get the best results. The Sachtler Video 60 Plus Studio Fluid Head's 18-step counterbalance system allows you to achieve perfectly adjusted balance quickly and simply. The sliding balance plate has a range of up to 115 mm, giving you even more precise adjustment and safety at any angle. All while supporting a maximum payload of 65 kg.

The Touch & Go quick release and automatic locking reduce mounting and releasing your camera to a matter of seconds. Once you are set and ready to go, the frictionless leak proof fluid damping with nine levels of drag gives you perfectly smooth movement both vertically and horizontally. Whatever the terrain and whatever your schedule, the Sachtler Video 60 Plus Studio wonf t slow you down.


- Vario Ped 1-70 Pedestal -

Highly stable and yet lightweight, the Vario pedestals provide optimum support both in Studio and OB environments.
The Vario 1-70 is a robust, reliable and portable solution that provide soft and precise movement delivering unparalleled talent tracking and able to achieve seated and standing eyeline positions even at close range. The Vario Ped 1-70 features ergonomically positioned controls, offers crab & steer functionality and can be used with payloads up to 70kg / 154lb.

It has 2 stages, the upper stage is perfectly balanced for on shot shot performance. The lower stage is a balance assisted stage for easy elevation and extended height range. It has an integral manual pump and an inlet valve for use with an external source.

In addition, the Vario Ped 1-70 includes a pressure gauge for clear and reliable set-up. The detachable dolly allows the pedestal to be simply broken down into two sections for easy storage and transportation. It comes with 12.5 cm / 5 inch wheels and adjustable cable guards. It also features narrow tracking and transit widths to allow for movement in tight spaces.

Sachtler System 60 Vario Features

  • Sachtler Video 60 Studio FB Fluid Head Features
  • 18-step counterbalance system allows you to achieve perfectly adjusted balance quickly and simply
  • The sliding balance plate has a range of up to 4.5"
  • Touch & Go quick release and automatic locking
  • The integrated assembly lock lets you mount the camera safely
  • Sachtler Vario 1-70 Pedestal Features
  • Robust, reliable and portable
  • Ergonomically positioned controls offers crab & steer functionality
  • Payloads up to 154 lbs (70kg)
  • An integral manual pump and an inlet valve for use with an external source
  • A pressure gauge for clear and reliable set-up
  • Detachable dolly allows the pedestal to be simply broken down into two sections for easy storage and transportation
  • 5" wheels and adjustable cable guards

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve smooth, professional footage with this Sachtler fluid head, ideal for studio camera work.
  • Experience superior stability with the Vario pedestal system, perfect for demanding broadcast environments.
  • Enjoy precise control with 18-step counterbalance, ensuring smooth tilts for payloads up to 143 lbs.
  • Easily adjust your camera height from 2.95' to 5.61' with the integrated manual pump pedestal system.
  • Benefit from the robust design, supporting 44 to 127.6 lbs, making it a reliable camera stand solution.
  • Navigate studio sets effortlessly with crab & steer functionality, enhancing your video production workflow.

What's in the box:

  • Video 60 Plus Studio FB Fluid Head
  • Vario Ped 1-70 Pedestal (Integrated Manual Pump)
  • Sachtler 1 Year Limited Warranty (Extended 2 Year Limited Warranty with Registration)
