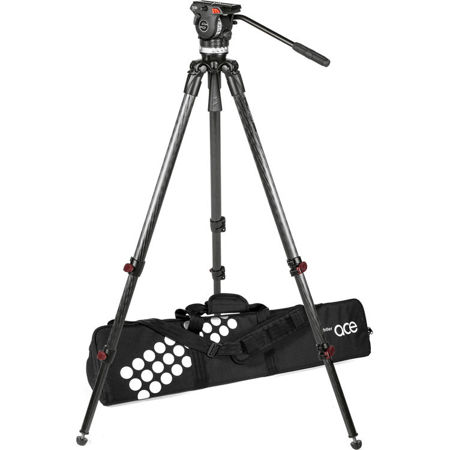

Sachtler Ace XL Fluid Head with Telescoping Tripod Legs (75mm Bowl)
See all Sachtler items

Sachtler Ace XL Fluid Head with Telescoping Tripod Legs (75mm Bowl)

SKU: SCACEXLTT
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Sachtler FSB 4 + 75/2 Mk II w/Gnd: Picture 1 regular
Sachtler FSB 4 Fluid Head w/75/2 AL MK II Aluminum Tripod, SP 75 Ground Spreader
$1,890.00
Sachtler FSB 4 CF w/Gnd Sprdr: Picture 1 regular
Sachtler FSB 4 Fluid Head with 75/2 CF MK II CF Tripod and SP 75 Ground Spreader
$2,060.00
Sachtler FSB 4 CF w/Mid Sprdr: Picture 1 regular
Sachtler FSB 4 Fluid Head with 75/2 CF MK II Tripod, Mid Spreader & Rubber Feet
$2,060.00$1,957.00
Sachtler System FSB 4 FT MS: Picture 1 regular
Sachtler FSB 4 FT Fluid Head w/flowtech 75 3-Section CF Tripod & Mid Spreader
$3,010.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Sachtler Ace XL TT Specifications

  • Payload Capacity

    Fluid Head: 4.4-17.6 lbs (2.00-7.98kg)
    Tripod: 44 lbs (19.96kg), with appropriate head

  • Height Range

    Complete System: 56 - 173cm (22.05 - 68.11")
    Tripod: 22 - 68" (55.88 - 172.72cm)

  • Folded Length

    Complete System: 35" (88.90cm)
    Tripod: 29" (73.66cm)

  • Counterbalance

    8 steps

  • Pan / Tilt Drag

    3 steps + zero

  • Sliding Balance Plate Travel

    4.1" (10.41cm)

  • Tilt Range

    +90 deg. / -75 deg.

  • Head Attachment Fitting

    75 mm bowl, integrated flat base

  • Leveling Bubble

    Illuminated

  • Operating Temperature

    -22 to 140 deg. F (-30 to 60 deg. C)

  • Material of Construction

    Fluid Head: Aluminum
    Tripod: Carbon fiber

  • Weight

    Complete System: 9 lbs (4.08kg)
    Fluid Head: 3.7 lbs (1.68kg)
    Tripod: 5.3 lbs (2.40kg)

  • UPC Code

    5060520682631

About Sachtler Ace XL TT

Tripod System Sachtler Ace XL Carbon Fiber with telescoping legs for Digital Cine Style and DSLR Cameras. Introducing the new Sachtler Ace XL tripod system. Ideally suited for digital cine style cameras like Blackmagic Ursa Mini Pro, Canon C200 and C300 Mark 2, Panasonic GH5 and Sony FS7. Providing you all the strength that made Sachtler the industry standard for professional lightweight camera supports: completely jerk free camera movements, extremely lightweight, maximum stability.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Sachtler Ace XL Fluid Head (75mm Bowl)
  • Ace 75/2 Carbon Fiber Tripod
  • Sideload Plate S/Ace Tripod QR Plate
  • Pan Bar for Ace Tripods
  • Padded Bag
  • Sachtler 3 Year Limited Warranty (1 Year + 2 Year with Registration)
