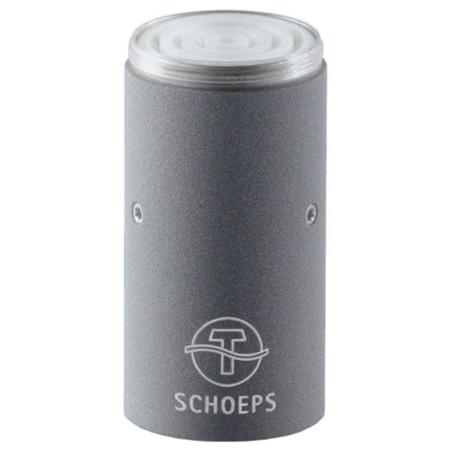

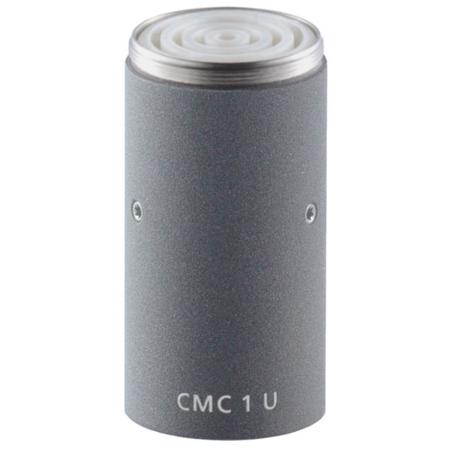

Schoeps CMC 1 U 12-48 Volt Phantom Power Microphone Miniature Amplifier for Colette Capsules, Maximum RFI Rejection, Matte Gray

SKU: SCCMC1UG MFR: CMC 1 UG
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this miniature microphone amplifier for clear sound.
  • Enjoy maximum RFI rejection, ensuring clean recordings with this microphone component.
  • This microphone body is compatible with Schoeps Colette capsules for versatility.
  • Experience superior sound quality with a wide 20 Hz-20 kHz frequency range.
  • Phantom power ensures consistent performance for professional microphone use.
  • Compact and durable, this microphone part delivers value and reliability for years.
See More Product Details
Special Order?Estimated to Ship: 08/09/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Compatibility
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Schoeps CMC 1 U Specifications

  • Surface finish

    Matte Gray

  • Frequency range

    20 Hz-20 kHz

  • Sensitivity

    Sensitivity at 1 kHz at a load of 1 kOhm
    (according to IEC 60268-4, Logarithmic specification in dB relative to 1 V/Pa, or linear in mV/Pa)

  • Maximum output voltage

    1.8 V (5 dbV) with 1 k Ohm load

  • Maximum sound pressure level

    135 dB-SPL (P48) with MK 4
    131 dB-SPL (P12) with MK 4
    (THD < 0.5 %)

  • Low cut filter

    20 Hz, 12 dB/oct

  • Output impedance

    50 Ohm +/- 1 Ohm (8 Hz - 50 kHz)

  • Minimum recommended

    1 k Ohm (Load Impedance)

  • Common mode rejection ratio

    > 55 dB (at 1 kHz)

  • Maximum cable length

    Approx. > 1300' (400m)

  • SCHOEPS RFI Shield

    Yes

  • Powering standard / Valid range

    P48 / 30-52 V
    P12 / 11-13 V

  • Current consumption

    2 mA (P48)
    3 mA (P12)

  • Output

    XLR-3M, analog, 1 channel

  • Length

    Approx. 1.5" (39mm)

  • Diameter

    0.8" (20mm)

  • Weight

    1.3 oz (36g)

Designed For Use With:

  • Schoeps Colette Series Capsules

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

Models
Schoeps CMC 1 U Miniature Mic Amplifier for Colette Capsules, Matte Gray
$1,019.00

Special Order

Generally ships in 7-14 days, subject to availability

Neumann Analog Output Stage for KK Series Microphone Capsules, Nickel
$749.00

$939.00

Save:$190.00 (20%)

Ships from Manufacturer

Usually ships within 2-4 Weeks. Delivery is subject to availability.

CompatibilitySchoeps Colette Series CapsulesSchoeps Colette Series CapsulesKK Series
Accessory TypeMicrophone BodyMicrophone BodyMicrophone Body

About Schoeps CMC 1 U

Before you delve into the world of professional audio recording, consider the CMC 1 U 12-48 Volt Phantom Power Microphone Miniature Amplifier. This innovative and high-quality device is specifically designed for compatibility with Schoeps Colette series capsules, ensuring optimal performance for your audio recording needs.

Significantly smaller and lighter than its predecessor, the CMC 6, the CMC 1 U offers uncompromising miniaturization without sacrificing any of the electrical characteristics. In fact, through modern electronic design, the CMC 1 U's electrical properties meet or even surpass those of the CMC 6. This makes it an ideal choice for applications where the size and weight of the microphone are crucial factors.

The CMC 1 U is not just a reliable and durable microphone amplifier, but it also boasts maximum RFI rejection. This means it can operate seamlessly in noisy environments, effectively rejecting radio frequency interference to deliver high-quality audio recordings.

The CMC 1 U also offers practical alignment of vertical capsules, making it suitable for use in many suspensions like the OSIX that have a rigid orientation of the XLR connector and the amplifier. This feature ensures that the microphone cannot be rotated arbitrarily in such a suspension, providing stability and consistency in your audio recording setup.

Whether you're using axially aligned capsules like the MK 4 or a vertical capsule like the MK 8, the CMC 1 U ensures that your capsules are always perfectly aligned for the best audio recording experience.

In conclusion, the CMC 1 U 12-48 Volt Phantom Power Microphone Miniature Amplifier is a professional, reliable, and innovative solution for all your audio recording needs.

Schoeps CMC 1 U Features

  • High maximum SPL: 135 dB-SPL with the MK 4 (0.5% THD or less)
  • Very low current consumption: 2.0 mA at 48 Volts
  • Operates on 48 V or 12 V phantom power
  • Very high immunity from RF interference with the SCHOEPS RFI Shield
  • Complete alternative to the renowned CMC 6
  • Fully compatible with all existing MK capsules and Colette active accessories such as the CUT 60 and RC tubes
  • Suitable mounting accessories are already available, such as the CINELA E-OSIX-CMC1U and the Rycote INV-6 elastic suspensions

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Capture pristine audio with this miniature microphone amplifier for clear sound.
  • Enjoy maximum RFI rejection, ensuring clean recordings with this microphone component.
  • This microphone body is compatible with Schoeps Colette capsules for versatility.
  • Experience superior sound quality with a wide 20 Hz-20 kHz frequency range.
  • Phantom power ensures consistent performance for professional microphone use.
  • Compact and durable, this microphone part delivers value and reliability for years.

What's in the box:

  • CMC 1 U 12-48 Volt Phantom Power Microphone Miniature Amplifier
  • SG 20 and Premium Case
  • Schoeps 2 Year Limited Warranty
