Sachtler FSB 4 Specifications

Tripod
  • Material

    Carbon Fibre

  • Payload

    0 - 44 lb (0 - 20kg)

  • Height range

    10.2 - 62.20" (26 - 158cm)

  • Head fitting

    2.9" (75mm)

  • Transport length

    27.1" (69cm)

  • Stages

    2 stages

  • Weight

    8.3 lb (3.8kg)
    (including ground spreader)

Spreader

Jump to...
  • Spreaderless mode

    10.2 - 60.2" (26 - 153cm)

  • Ground spreader mode

    16.9 - 62.20" (43 - 158cm)

Fluid Head

Jump to...
  • Payload

    0 - 8.8 lb (0 - 4kg)

  • Counterbalance steps + 0

    5

  • Grades

    3 horizontal and vertical grades of drag, +0

  • Tilt range

    +90 Degree to -75 Degree

  • Slide range

    4.7" (120mm)

  • Temperature range

    -104 - 140 Degree F (-40 Degree - 60 Degree C)

  • Camera fitting

    Sideload S

  • Head fitting

    2.9" (75mm)

  • Pan bar type / number

    1, Type DV 75

  • Level

    Yes

  • Adapter viewfinder extension

    None

  • Weight

    5.2 lb (2.4kg)

Padded Bag

Jump to...
  • Dimensions (W x H x L)

    9.0 x 7.8 x 36.6" (23 x 20 x 93cm)

  • Weight

    3.9 (1.8kg)

Carry Handle

Jump to...
  • Weight

    2.8 oz (80g)

  • Payload

    0 - 8.8 lb (0 - 4kg)

  • Spreader

    Ground spreader

  • Height range

    16.1 - 68.50" (41 - 174cm)

  • Head fitting

    2.9" (75mm)

  • Transport length

    33.07" (84cm)

  • Weight

    13.44 lb (6.1kg)

  • UPC Code

    5060520685212

About Sachtler FSB 4

FEATURED REVIEWS

Love this brand.

By Timothy B.

Love it. Sturdy, light, and functional.

What a head!

By EVAN S.

I absolutely love this thing. I bought the head because of its 75mm bowl, plus the ability to go flat for my Edelkrone slider. I combined it with Miller legs and a Benro flat 75mm bowl adapter for the perfect tripod. This thing is fluid, rock solid and hyper-intuitive design. Great tension and the ability to go to zero-resistance is a great way to emulate hand-hels without handholding your entire rig. If you're thinking about buying this, do it now.

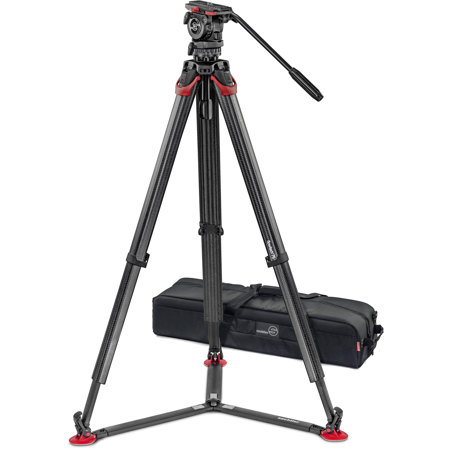

The Sachtler System FSB 4 fluid head with flowtech 75 carbon fiber tripod legs offer a professional tripod system for videographers who use cameras weighing up to 4 kg / 8.8 lb.

The FSB 4 head provides frictionless leak-proof fluid drag with three levels of drag, for perfect pictures while panning, without jerks and vibrations. Identical across both horizontal and vertical planes, and allows complete disengagement of drag for fast panning. The system includes a ground spreader and bag.

Features
FSB 4 fluid head (0307) + tripod flowtech 75 with ground spreader flowtech (4587) + padded bag 75 (9116); flowtech 75 is a 2-stage 75 mm carbon fibre tripod with unique quick release brakes for instant and easy deployment, ergonomic carbon fibre design with strong magnetic legs locks for comfortable transport, exceptional torsional stiffness and a versatile hinge lock mechanism for low and high shots.


- Fluid Head FSB 4 -
The small professional fluid head FSB 4 makes working with set-ups up to 4 kg especially comfortable due to the established Sachtler damping, Speedbalance technology for rapid weight compensation and the Snap & Go side-loading mechanism. This enables set-ups to be mounted quickly and easily from the side of the tripod.


- flowtech 75mm Tripod GS -
Sachtler presents the award winning flowtech. Revolutionise the way you work with the award winning world's fastest tripod legs.

Performance tested in extreme conditions, flowtech is incredibly fast, lightweight and easy to set up and adjust compared to any other tripod, giving the camera operator ultimate versatility and improving their workflow. Try it out and join the revolution.

Features
flowtech 75 2-stage 75 mm lightweight carbon fibre tripod. Unique quick release brakes for instant and easy deployment; ground spreader for simple setup of different footprints.

Ergonomic design provides a comfortable shoulder position with strong magnetic leg locks for easy transport. Exceptional torsional stiffness for precision shooting and a versatile hinge lock mechanism for low and high shots.


- Carry Handle flowtech -
The flowtech carry handle can be easily secured to a flowtech tripod using one of the accessory docks. Since the flowtech is designed to be lightweight, the tripod can be transported single-handed.

Sachtler FSB 4 Features

  • FSB 4 Fluid Head Features
  • Supports cameras to up to 4 kg / 8.8 lb
  • Frictionless Leak Proof Fluid Drag
  • Sachtler's Snap & Go sideload mechanism
  • Dynamic Counterbalancing System
  • Operates without any friction from -40 Degree F to +140 Degree F (-40 Degree to +60 Degree C)
  • Integrated flat base
  • flowtech 75mm Tripod Features
  • Deploy and adjust your tripod in an instant: Unique quick release brakes
  • Easy to transport and exceptional torsional stiffness: Ergonomic carbon fibre leg design
  • Capture extremely low and high shots: Versatile hinge lock mechanism
  • Superior performance and reliability: Extensive endurance and environmental testing
  • Fast and stable setup: Unique easy to adjust ground spreader
  • flowtech Ground Spreader Features
  • Easy foot control to extent spreader arms
  • Removable feet to operate without spreader in low positions
  • Fast and simple setup

Key Features

  • FSB 4 Fluid Head Highlights
  • Supports cameras to up to 4 kg / 8.8 lb
  • Frictionless Leak Proof Fluid Drag
  • flowtech 75mm Tripod Highlights
  • Deploy and adjust your tripod in an instant: Unique quick release brakes
  • Easy to transport and exceptional torsional stiffness: Ergonomic carbon fibre leg design

What's in the box:

  • FSB 4 Fluid Head (0307)
  • flowtech 75mm Tripod with Ground Spreader (4587)
  • Side Load Plate
  • Padded Bag 75mm (9116)
  • Carry Handle (S2051-1057)
  • Sachtler 3 Year Warranty (1 Year + 2 Year with Registration)
