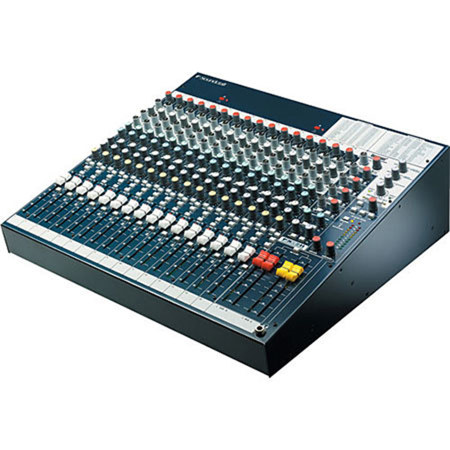

Soundcraft FX16ii 16-Channel Mixer with Lexicon Effects Processor, 16 Direct Outputs, Rotating Connector Pod

SKU: SCFX16II MFR: RW5757US
Earn VIP Reward Points

Key Features

  • Achieve pristine sound quality with this mixer, perfect for live sound and studio recording.
  • This 16-channel mixer offers flexible EQ control, ensuring optimal audio shaping for any performance.
  • Integrate seamlessly with your computer via the USB interface for easy recording and playback.
  • Enjoy ultra-low noise performance, ideal for capturing clean, professional-grade audio recordings.
  • Built for durability, this Soundcraft mixer withstands the rigors of touring and frequent use.
  • Enhance your mix with integrated Lexicon effects, adding depth and character to your audio.
See More Product Details
Special Order?Estimated to Ship: 08/15/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Soundcraft FX16ii Specifications

  • Analogue/Digital

    Analogue

  • Frame Sizes

    16

  • Stereo Channels

    0

  • Digital I/O

    No

  • FX Processors

    1

  • Fixed Send (Group) Buses

    2

  • EQ Bands

    3

  • Variable Send (Aux) Buses

    4

  • Returns

    5

  • Direct Outputs

    Yes

  • Matrix Buses

    0

  • Main Bus Out

    LR

  • Frequency Response

    Mic / Line Input to any Output: +/-1dB, 20Hz - 20kHz

  • T.H.D.

    Mic Sensitivity -30dBu, +14dBu at Mix output: < 0.09% at 1kHz

  • Noise

    Mic Input: 2kOhm
    Line Input: 10kOhm
    Stereo Input: 65kOhm (stereo), 35kOhm (mono)
    Outputs: 150Ohm (balanced), 75Ohm (unbalanced)

  • Crosstalk ( at 1kHz)

    Channel Mute: > 96dB
    Fader Cut-off (rel +10 mark): > 96dB
    Aux Send Pots Offness: > 86dB

  • EQ (Mono inputs)

    HF: 12kHz, +/-15dB
    MF (swept): 150Hz - 3.5kHz, +/-15dB
    LF: 80Hz, +/-15dB
    Q: 1.5

  • Power Consumption

    Less than 40W

  • Operating Conditions

    Temperature Range: 5deg.C to 40deg.C

  • Input & Output Levels

    Mic Input: +15dBu max
    Line Input: +30dBu max
    Stereo Input: +30dBu max
    Mix Output: +20dBu max
    Headphones ( at 150 Ohm): 300mW

  • Input & Output Impedances

    Mic Input: 2kOhm
    Line Input: 10kOhm
    Stereo Input: 65kOhm (stereo), 35kOhm (mono)
    Outputs: 150Ohm (balanced), 75Ohm (unbalanced)

  • Dimensions (W x H x D)

    Without rack ears: 17.4 x 6.16-2.47 x 17.4" / 44.19 x 15.64-6.27 x 44.19cm
    With rack ears: 18.92 x 6.16-2.47 x 17.4" / 48.05 x 15.64-6.27 x 44.19cm

  • Weight

    Without rack ears: 11.6 kg (25.52 lbs)
    With rack ears: 11.6 kg (25.52 lbs)

  • UPC Code

    688705210940

About Soundcraft FX16ii

The Soundcraft FX16ii 16-Channel Mixer with Lexicon Effects Processor uses the same AudioDNA processor featured in many of the Digitech and Lexicon outboard equipment including the highly respected Lexicon MX400 processor. With over 35 years experience, the Lexicon name is synonymous with the best reverb and processing in the business, ensuring the finest quality effects not usually found in a console at this price level.

The Soundcraft FX16ii offers a combination of powerful live and recording features; each channel has a Direct Output which is individually switch-able pre or post fader to enable use with 16-track recording systems. The Lexicon effects work just as well in the live as well as the recording environment with a tap tempo function, 3 parameter controls, user effects settings store ability, effects clip LED and 32 powerful and editable effects to choose from.

Soundcraft FX16ii Features

  • 26 inputs
  • 16 mono microphone channels
  • 4 stereo returns
  • 4-bus architecture, with sub-group routable to mix
  • Built-in 24 bit Lexicon digital effects processor
  • 32 FX settings
  • Tap Tempo
  • 3 FX parameter adjust rotaries
  • User FX settings store function
  • Direct outputs for multi-track recording individually switch-able for pre-post-fade operation
  • Inserts on all mono channels
  • Inserts on stereo mix output
  • Classic Soundcraft 3-band EQ with swept mid-band
  • Stereo 18dB/octave 100Hz high-pass filter
  • Dual global +48V phantom power split channels 1-8 and 9-16
  • Channel Mute control
  • 10-segment tri-colored metering
  • Two sub-group outputs
  • Separate mono sum output
  • Integral universal power supply

Key Features

  • Achieve pristine sound quality with this mixer, perfect for live sound and studio recording.
  • This 16-channel mixer offers flexible EQ control, ensuring optimal audio shaping for any performance.
  • Integrate seamlessly with your computer via the USB interface for easy recording and playback.
  • Enjoy ultra-low noise performance, ideal for capturing clean, professional-grade audio recordings.
  • Built for durability, this Soundcraft mixer withstands the rigors of touring and frequent use.
  • Enhance your mix with integrated Lexicon effects, adding depth and character to your audio.

What's in the box:

  • Soundcraft FX16ii 16-Channel Mixer with Lexicon Effects Processor
  • Soundcraft 1 Year Warranty
