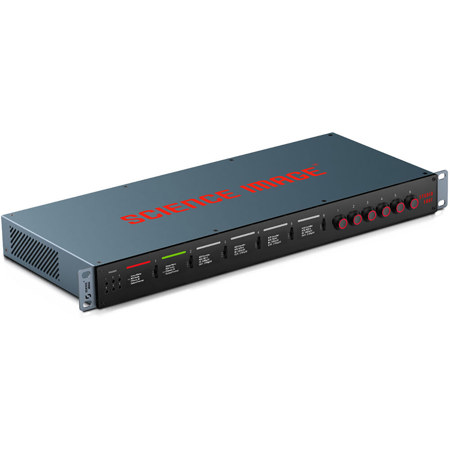

Science Image Studio Edge 6-Channel 1U 12G-SDI/HDMI/NDI 4K Rack Mount Converter

SKU: SCSISTUDIOE6 MFR: SI-STUDIOEDGE6
Earn VIP Reward Points

Key Features

  • Seamlessly convert 12G-SDI, HDMI, and NDI 4K signals for professional video workflows.
  • Experience pristine 4K resolution support up to 60fps, ensuring exceptional visual clarity.
  • Easily manage multiple video sources with 6-channel input/output compatibility for diverse setups.
  • Benefit from robust build quality and a 1U rack mount design, perfect for studio integration.
  • Simplify your setup with intuitive controls and reliable power for consistent performance.
  • Future-proof your production with advanced NDI/HX, NDI/HX2, and NDI/HX3 streaming protocols.
See More Product Details
Temporarily On Backorder?Expected Availability: 08/2026
Free Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Science Image Studio Edge Specifications

Inputs/Outputs

Inputs/Outputs

Jump to...
  • Video I/O

    Input:
    6x BNC (12G-SDI) Female
    6x HDMI 2.0 Female

    Output:
    6x BNC (12G-SDI) Female
    6x HDMI 2.0 Female

    Input/Output:
    6x opticalCON

  • Audio I/O

    Input:
    6x 1/8" (3.5mm) TRS Stereo Analog Female (Loop Output)
    6x 1/8" (3.5mm) TRRS Headphone/Microphone Stereo Analog Female

  • Other I/O

    6x RJ45 (LAN)

  • Expansion Slots

    No

Format Support

Jump to...
  • Video Resolution

    BNC/HDMI/Fiber (Input/Output):
    3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps
    2560 x 1440 at 23.98/24/25 fps
    1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
    1920 x 1080PsF at 23.98/24/25/29.97/30 fps
    1920 x 1080i at 50/59.94/60 fps
    1280 x 720 at 50/59.94/60 fps

  • Audio Format

    Analog

  • Embedded Audio

    Fiber/HDMI/SDI

Standards

Jump to...
  • Video Standard Compliance

    SMPTE: 259M/292M/296M/372M/424M/425M/ST-2081-1/ST-2082-1/ST-2082-10

IP Streaming

Jump to...
  • Transport Protocols

    NDI/HX, NDI/HX2, NDI/HX3

Display

Jump to...
  • Display

    1.3" (33.02mm) OLED

  • Power I/O

    1x IEC C13 Input

General

Jump to...
  • Color

    Black

  • Material

    Aluminum

  • Rack Form Factor

    1 RU

  • Certifications

    CE, FCC, RoHS

  • Dimensions

    18.97 x 7.4 x 1.75" (482 x 188 x 44.5mm)

  • Weight

    5.7 lbs (2.6kg)

About Science Image Studio Edge

Pro grade 6 in 1 , double the efficiency
6 NDl Encoders, 6 NDI Decoders, 6 Optical Transceivers 6 SDl/HDMl Converters and 6 Up/Down/Cross Converters Integrated into One.

Maximum 6 channels outstanding Performance
Channels 1-6 Available for Selection.

Lossless Real Time Sharing of 4K Homologous video Signal among Buildings

IP processing , multiple signal output options
NDI stream generation , Fast , efficient , multi-channel.

Overall Heat Dissipation , Silent Operation
Provide overall heat dissipation for the system and escort each operation.

Scroll Wheel Fulfills Quick Configuration
1.3" OLED will display all working status, such as Encoding or Decoding, Signal, Format, Network, Input/Output, Optical Transmit or Receive and more other info in your live.

Concurrent operation of 6 channels Encoding & Decoding Mixture
Channels 1-3 are encoder modes; Channels 4-6 are decoder modes.

Flexible deployment, convenient and practical
Based on actual needs and application scenarios, system deployment can become very flexible and diverse.

• Machine Room
• Broadcasting Vehicle
• Control Room
• Competition
• Live Production

Easy plug , connect unlimited possibilities
POE/Ethernet , OPTICAL TX/RX , HDMI IN , HDMI OUT , SDI IN , SDI OUT , Line In.

Bright spots everywhere
All-in-one solution with comprehensive features and better results.

• NDI.6 Encode/Decode
• Tally
• OLED Display
• Independent Switch at Disposal
• Optical Transceiver
• Audio Embedded/De-Embedded/Intercom
• 12G-SDI/HDMI 4K Up/Down/Cross Converter

Start your journey of IP based production
Full NDI Bi-Directional Encoding Decoding | Up/Down/Cross Conversion | Optical Transceiver | Working Simultaneously | 4K.

At Least 1849 Common Resolution Formats' Free Shift
SDI/HDMI Conversion, Up/Down/Cross Conversion Feasible for Each Channel, Convenient Resolution Format Shift, Site's Random Demands Fulfilled.

Science Image Studio Edge Features

  • Aviation technology: Aviation aluminum integrated design and milling, ultra-thin process, aviation process manufacturing
  • Broadcast quality: Accurate and rapid signal recognition, the program runs like a rock, not affected by the environment
  • Versatile audio processing: Concurrent Audio Embedding , De-embedding, Volume Adjustment , Mixing Output
  • 12G-SDI/HDMI 4K60 Up/Down/Cross Converter
  • High Band-Width NDI Encoder/Decoder
  • Encode Up/Down/Cross/Optical working simultaneously
  • Audio Embedded/De-embedded/Mixer
  • Web UI/ Dyna Hub software Control/Open API supply to 3rd Control System

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Seamlessly convert 12G-SDI, HDMI, and NDI 4K signals for professional video workflows.
  • Experience pristine 4K resolution support up to 60fps, ensuring exceptional visual clarity.
  • Easily manage multiple video sources with 6-channel input/output compatibility for diverse setups.
  • Benefit from robust build quality and a 1U rack mount design, perfect for studio integration.
  • Simplify your setup with intuitive controls and reliable power for consistent performance.
  • Future-proof your production with advanced NDI/HX, NDI/HX2, and NDI/HX3 streaming protocols.

What's in the box:

  • Science Image Studio Edge 6-Channel 1U 12G-SDI/HDMI/NDI 4K Rack Mount Converter
  • Science Image 3 Year Limited Warranty
