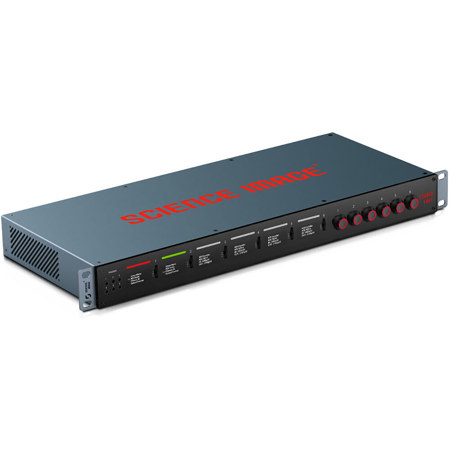

Science Image Studio Edge G 6-Channel 1U 12G-SDI/HDMI/NDI 4K Rack Mount Converter with Genlock

Up to 6 Channels, Simplify Complexity
Studio Edge G offers up to six fully independent and functionally complete channels. All functions operate concurrently without interference, eliminating the need for external converters, fiber-optic terminals, or dedicated audio processors. Users can select the channel count based on their needs, with a maximum support of 6 channels.

Highly Integrated Functionality, Highlights Everywhere
This revolutionary integration dramatically reduces hardware costs while completely simplifying system architecture, cabling complexity, and operational overhead.

Frame Level Precise Synchronization Worry Free System Collaboration
The Studio Edge G features a Genlock sync input that locks multiple devices to a common reference clock, ensuring all video signals remain precisely frame-aligned-even in complex environments

Efficient Conversion Shows Strength
Each channel supports a resolution range of 720p to 4K60, achieving bidirectional lossless conversion between 12G-SDI and HDMI 2.0, covering up conversion, down conversion, frame rate, color space, and scan mode adaptation.

Long-Distance, Open, and Interconnected
Each channel of the Studio Edge G integrates built-in 12G-SDI and HDMI 2.0 optical transceivers, supporting lossless signal transmission over distances of up to 20 kilometers-effortlessly meeting the demands of large venues, remote production setups, and distributed systems that require long-haul, high-quality video distribution.

Ultra-Comprehensive Broadcast
Studio Edge G is equipped with a full suite of professional-grade interfaces to confidently handle even the most demanding production scenarios.

Supports NDI 6.3 Latest Protocol
The Studio Edge G is powered by the latest NDI 6.2 core, deeply integrating a high-performance FPGA architecture with High Bandwidth NDI technology.

Loop-Through. Conversion. Switching Seamless Integration in One
All within a single unit: signal loop-through, cross-format conversion, NDI encoding, and fiber transmission run in perfect parallel-delivering unprecedented flexibility and reliability for live production.

Concurrent Integration of SDI And IP: Building an Efficient Production Hub
Users can seamlessly connect SDI, fiber, and NDI signals directly to switchers, production software, or distribution systems-on-site and without any external conversion hardware-significantly simplifying signal workflows.

Stable and Reliable Pure Hardware Core
All I/O Interfaces Are Equipped With Premium High-Speed Interface Chips And Connectors From Globally Renowned Brands. Coupled With Advanced Multi-Layer High-Speed PCB Design And Manufacturing Processes, The Unit Delivers Unwavering Reliability.

Independent Channels Zero Interference
Every Channel Features Its Own Dedicated Power Button And High-Visibility Status Indicator, Enabling Instant Visual Identification Of Operational States And Granting Users Precise, Per-Channel Control.

1.3-Inch High-Brightness Display
The Studio Edge G Features A Dedicated 1.3-Inch High-Brightness Display For Each Channel, Independently Showing Real-Time Operational Status.

Dedicated NDI Tally Indicators
Each Channel Features A Dedicated NDI Tally Indicator, Fully Compatible With Leading NDI-Enabled Production Software-Including VMix, OBS Studio, TriCaster, Wirecast, And More.

Own Dedicated Power Button
Each Channel Features A Dedicated NDI Tally Indicator, Fully Compatible With Leading NDI-Enabled Production Software-Including VMix, OBS Studio, TriCaster, Wirecast, And More.

Dual Redundant Power Supplies Worry-Free Operation on Site
The Studio Edge G features a dual 100-240V AC redundant power supply design, supporting connection to two independent mains circuits.

Synchronized Operation, Maximizing Efficiency
SDI/HDMI format conversion, NDI encoding/decoding, and SMPTE-compliant optical transmission/reception operate concurrently and independently on every channel, with zero interference.

Firmware Smart Cloud Upgrade
It supports remote intelligent firmware upgrades, enabling real-time and convenient firmware upgrades and system maintenance, either individually or in batches, via Dyna Hub software and Web Ul.

Plug and Play
The optical transmission complies with SMPTE standards. When paired with Science Image's proprietary TI optical modules, the Studio Edge G interoperates seamlessly with SMPTE-compliant fiber devices from leading manufacturers such as A.JA and Blackmagic Design-whether operating as a transmitter or receiver, it offers true plug-and-play compatibility.

12G-SDI and HDMI 2.0 inputs/outputs
Bidirectional cross-conversion and frame rate conversion between 120-SDI and HDMI 2.0.

TI(12G-SDI Optical Module)
12G-SDI SFP optical transceiver integrated module, Compatible with STDUIO 2/STUDIO G/FLOW 2/FLOWG/Vela series, as well as older models such as NDI Studio 4K SH and Flow 4K.

Gigabit Ethernet port
With high speed and broad compatibility, it meets the demanding requirements for bandwidth and stability in today's network environments.

Local One-Touch Control
The Studio Edge G features a compact yet highly functional front-panel jog wheel. A simple press and turn lets you instantly access and adjust common settings for any channel.

Full-Channel Status at a Glance
• Encode/decode mode
• Input/output signal format (SDI/HDMI/Optical)
• Optical transceiver mode (Tx/Rx)
• Input source priority
• NDI stream name, IP address, and other network details

Configuration Parameters
• Switching output formats between SDI, HDMI, NDI, and optical signals, configuring up/down-conversion
• Toggling encode/decode modes
• Selecting fiber transmit/receive direction

Intelligent Silent Cooling for Calm and Efficient Performance
The device is equipped with six high-performance silent fans and features a transverse through-flow air duct design, ensuring uniform and efficient cooling across the entire system.

Ultimate Design, Robust Yet Lightweight
Crafted from high-strength aluminum-magnesium alloy via milling, it significantly enhances structural strength while delivering exceptional wear resistance, impact resistance, and durability. Compared to traditional metal materials, it is lighter, tougher, and more durable.

Suitable for Various Scenarios
It can be conveniently placed on a desktop, rack, or head unit, adapting to various scenarios such as broadcast vans, studios, and server rooms.

Bright Spots Everywhere
All-in-one solution with comprehensive features and better results.

Genlock Input
Genlock sync input for frame-accurate synchronization across multiple devices.

SDI/HDMI Conversion
lossless conversion between 12G-SDI and HDMI 2.0.

Up-Down Conversion
Supports resolutions from 720p up to 4K60.

NDI 6.3
Seamlessly integrates into modern IP-based production ecosystems.

Encode/Decode
Support lossless signal transmission over distances of up to 20 kilometers.

Optical Transceivers
Support lossless signal transmission over distances of up to 20 kilometers.

Remote Control, Real-Time Adjustment
For comprehensive remote control, users can access every channel over the network via the Web Ul or Science Image's Dyna Hub software, enabling full configuration of:

Dyna Hub

Centralized Management, Beyond Brand Boundaries
Dyna Hub is a centralized management software for terminal devices, supporting remote management and control of all Kestrel devices and some third-party devices. It automatically discovers and categorizes devices within the same network, allowing operations such as setting working modes, changing parameters, previewing recorded videos, and downloading.

Dyna Router

IP-based Graphical Routing, Customizable Rotation Scheduling
The Dyna Router multifunctional network matrix system not only achieves matrix signal scheduling functionality, but also incorporates full P-based, graphical, visual, high-channel-count, and automatic main/backup switching functions. With flexible application scenarios, it provides stable and reliable centralized scheduling for broadcast centers, command centers, OB vans, sports events, large-scale conferences, and more.

Dyna View

Protocol Unbound, Monitoring Unrestricted
Dyna View is a multi-protocol monitoring and interactive system developed by Beijing Kesitu Technology Co., Ltd. This system supports various protocol standards, audio and video monitoring, customizable layout, signal loss alarm, and other functions.
