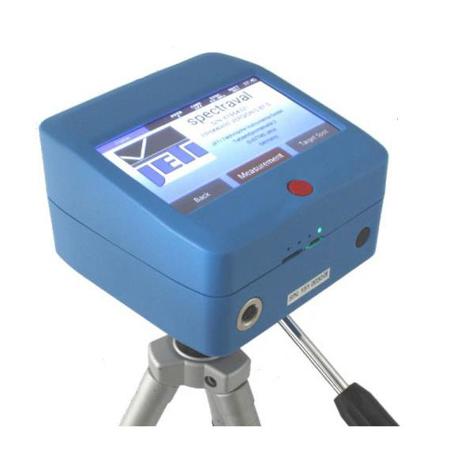

SpectraCal JETI Spectraval 1511 VIS Spectroadiometer with Display

Spectraval 1511 is a modern spectroradiometer for the VIS wavelength range, which can be used stand alone or with PC/ laptop. It is constructed in the same way as Spectraval 1501, but includes a display. All other functions are similar. Spectraval 1511 can be used for spectroradiometric measurements in the field without additional computer or via Bluetooth/ USB connection with different PC programs like the included universal radiometric software JETI LiVal or other programs as CalMAN (SpectraCal), ChromaPure (Display Calibrations), LightSpace (LightIllusion), Argyll and HCFR (under preparation).

• Internal target spot laser
• Mechanical shutter for dark signal compensation
• Automatic measurement in selectable time intervals
• USB powered or battery powered
• Data storage on SD card
• Pass / fail decisions
• Ranking function (up to 16 ranks)
• Spectral operations
• Data export in csv and xls files

Measuring values
• Luminance, Radiance
• xy and u' v' coordinates
• Dominant wavelength
• Color purity
• Correlated Color Temperature
• Color Rendering Index
• Circadian metrics, PAR

Examples for applications are the following
• Calibration of studio monitors
• Measurement of fluorescence and UV lamps
• Measurement of extended luminaries like OLEDs

It is possible to implement the instrument directly into customer specific applications via USB or Bluetooth by the following ways:

• Radiometric DLLs (Windows applications)
• Serial commands (SCPI compatible syntax) (Windows and Linux applications)
