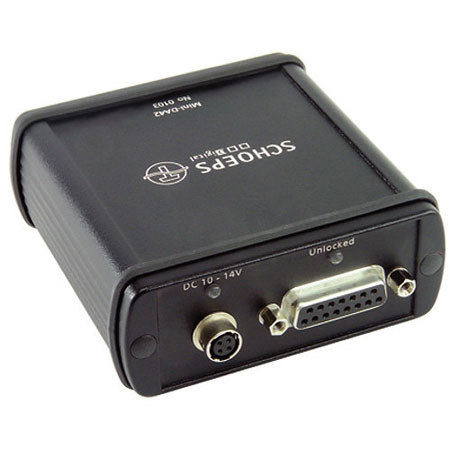

Schoeps Mini-DA42 Digital Microphone Powering Box with Digital and Analog Converter for SuperCMIT, 2Hz-20kHz Frequency, AES42 In, AES3/2x Analog XLR-3M Out

SKU: SCMINIDA42 MFR: MINI-DA42
Earn VIP Reward Points

Key Features

  • Experience stable voltage with this microphone power supply for pristine audio.
  • Enjoy low noise performance, ensuring your recordings are clean and professional.
  • This compact size powering box fits seamlessly into any audio recording setup.
  • Phantom power your SuperCMIT mic easily with this simple, effective adapter.
  • Set up is a breeze, making this microphone power supply user-friendly for all.
  • Durable build ensures this digital microphone powering box offers long-term reliability.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Schoeps MINI-DA42 Specifications

  • Inputs

    AES42
    Mode 1 (XLR-3F, 110 Ohms, black label)

  • outputs

    AES3 (XLR-3M, 110Ohms, blue label)
    2x analog XLR-3M (yellow and red label), balanced, referring to ground
    Maximum cable length: 300m

  • Indicators

    Green LED for power
    Red LED for "unlocked" (turns off when a digital microphone is connected and the circuitry of the Mini-DA42 locks on to that signal)

  • Power

    DC 12 - 18 V/200 - 500 mA, available through included AC adapter (type designation: VMS-DCW) for 100 - 240 V, 50 / 60 Hz with HIROSE plug
    Operation is also possible with other AC adapter models or batteries / rechargeable batteries

  • Sampling Rate

    192 kHz max

  • Dynamic Range

    Mini-DA42: 112 dB (A, RMS), >98dB (CCIR, q-peak) SuperCMIT with Mini-DA42: >107 dB (A, RMS), >96dB (CCIR, q-peak)

  • Frequency Range

    2 Hz - 20 kHz (-1 dB)

  • Audio THD + Noise

    -95 dB at 1 kHz

  • Max. output Level

    14.5 dBU at 0 dBFS

  • Current Consumption

    200 mA (SuperCMIT included)

  • Dimensions

    3.30 x 3.30 x 1.33 / 84 x 84 x 34mm

  • Weight

    6.10oz / 173g

About Schoeps MINI-DA42

What sets the Schoeps Mini-DA42 Digital Microphone Powering Box apart is its innovative design and high-quality performance. This compact and durable device is specifically engineered to power digital microphones, particularly the esteemed Schoeps SuperCMIT.

Boasting a broad frequency range of 2Hz to 20kHz, the Mini-DA42 offers versatile recording and playback options to cater to a wide array of professional audio applications. Its sophisticated digital and analog converter seamlessly transforms digital output into analog signals, making it an ideal companion for devices such as mixers and audio interfaces that lack digital inputs.

The Mini-DA42 features an AES42 input and an AES3/2x analog XLR-3M output, providing reliable connectivity options for your audio equipment. The device also comes with a convenient Sub-D breakout cable for easy input and output management.

The front panel connectors are easily accessible, ensuring a user-friendly experience even in the most demanding audio environments. Trust in the Schoeps Mini-DA42 Digital Microphone Powering Box to deliver consistent, high-quality audio performance every time.

Schoeps MINI-DA42 Features

  • High-performance digital microphone powering box designed for professional audio applications
  • Compatible with Schoeps SuperCMIT and other digital microphones
  • Broad frequency range of 2Hz to 20kHz for versatile recording and playback options
  • Integrated digital and analog converter for seamless output transformation
  • Features AES42 input and AES3/2x analog XLR-3M output for reliable connectivity
  • Includes a convenient Sub-D breakout cable and easy-access front panel connectors

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience stable voltage with this microphone power supply for pristine audio.
  • Enjoy low noise performance, ensuring your recordings are clean and professional.
  • This compact size powering box fits seamlessly into any audio recording setup.
  • Phantom power your SuperCMIT mic easily with this simple, effective adapter.
  • Set up is a breeze, making this microphone power supply user-friendly for all.
  • Durable build ensures this digital microphone powering box offers long-term reliability.

What's in the box:

  • Schoeps Mini-DA42 Digital Mic Powering Box with Digital and Analog Converter
  • AC Adapter
  • Sub-D Breakout Cable
  • Schoeps 2 Year Limited Warranty
