Schoeps MK8 Bi-Directional Microphone Capsule, 40Hz to 16kHz Frequency Response, 10mV/Pa Sensitivity, Side-Addressed Pickup, Figure-8 Polar Pattern, Nickel

Are you looking for a professional-grade microphone capsule that delivers clear, neutral sound with precise directional capture The Schoeps MK8 Nickel Bi-Directional Microphone Capsule is a high-quality, durable choice for audio professionals and enthusiasts alike. This true dipole transducer operates with a single diaphragm, offering a side-addressed pickup with a figure-8 polar pattern that is extraordinarily independent of frequency.

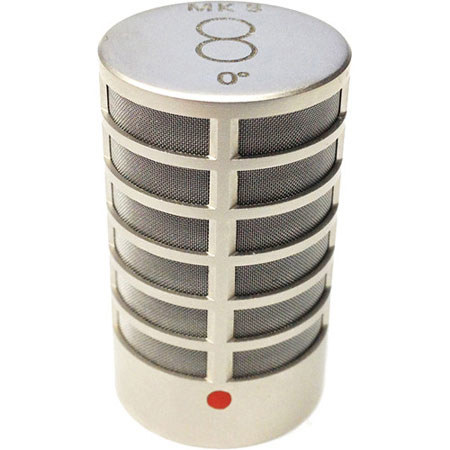

The MK8's main axis is designed at a right angle to the capsule, clearly marked with a red dot at 0 degrees and a black dot at 180 degrees, ensuring accurate alignment for optimal sound capture. This meticulous design is ideal for M/S stereo recordings, with the 0-degree axis typically facing left from the rear of the microphone setup. The engraved "8" on the top of the housing indicates the precise orientation for the capsule when paired with a Mid capsule, allowing for a seamless audio capture experience.

With a frequency response ranging from 40Hz to 16kHz and a sensitivity of 10mV/Pa, the MK8 captures a wide array of sounds, from the deep resonance of bass instruments to the subtle nuances of vocal performances. The stylish nickel finish not only adds a touch of elegance to your recording setup but also ensures the capsule's longevity.

The inherent qualities of this pure pressure-gradient transducer are evident, with a decrease in sensitivity at low frequencies and a presence of proximity effect. The MK8's sound quality is characterized by its clarity and neutrality, with a frequency response that gently rolls off above 16kHz. When used as a spot microphone, it is important to position the MK8 to avoid early reflections or unwanted direct sound from its rear, as this could lead to partial cancellation of the intended sound and comb-filter effects at higher frequencies.

The figure-8 pattern of the MK8 has a directivity index equivalent to that of a cardioid pattern, capturing a balanced mix of direct and reverberant sound. However, the figure-8 pattern uniquely does not respond to sound from the sides, above, or beneath its main axis, unlike a cardioid. This results in a rear lobe equal in sensitivity to the front, providing a distinct audio capture that, while quantitatively similar, differs in character from a cardioid in reverberant settings.

In summary, the MK8 Bi-Directional Microphone Capsule is a reliable, professional tool that offers stylish design and high-quality audio capture, making it a superior choice for those seeking versatility and precision in their recordings.
