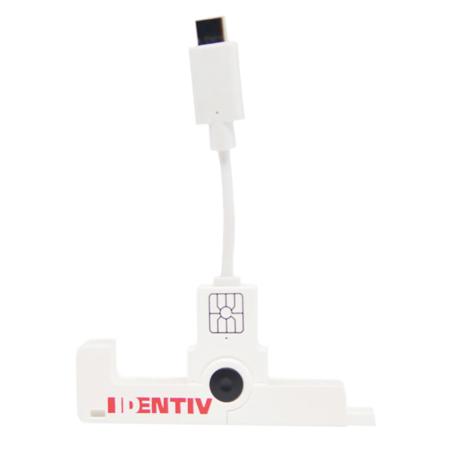

Identiv SCR3500 C uTrust USB SmartFold Type C Smart Card Reader

SKU: SCR3500C MFR: SCR3500 C
$29.99
Earn VIP Reward Points

Key Features

  • Ensure secure access with this Identiv smart card reader, ideal for public safety.
  • This uTrust USB reader offers reliable communication for critical security applications.
  • Enjoy easy setup with this plug-and-play smart card reader, enhancing your workflow.
  • Benefit from broad compatibility; supports various smart cards for versatile use.
  • Compact and durable, this Identiv reader is perfect for field use in public safety.
  • Trust in secure data transfer with advanced protocols, safeguarding sensitive info.
See More Product Details
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Shopper : Where is this manufactured?
Shopper : Why Did You Choose This?JOSE S : Needed a USB-C interface for my CAC

Reviews about this item

Review Summary

Identiv SCR3500 C Specifications

General

General

Jump to...
  • Host Interface

    USB 2.0 Full speed (12Mbps)

Smart Card Interface

Jump to...
  • Supported Standards

    ISO/IEC 7816 Part 1 to 4
    EMV 2011 Ver 4.3 Level 1

  • Supported Tag ICs

    All major ISO/IEC 7816 compliant Smart Card IC support

  • Smart Card Protocols

    T=0, T=1

  • Smart Card Interface Speed

    Up to 600 kbps (depending on card)
    TA1=97

  • Smart Card Clock Frequency

    ISO/IEC 7816 compliant; Operates up to 16MHz

  • Supported Smart Card Types

    5V, 3V, and 1.8V, ISO/IEC 7816 Class A/B/C

  • Power to Smart Card

    60mA in Class A; 55mA in Class B; 35mA in Class C

  • Smart Card Detection

    Card present switch
    Automatic power on/off
    Short circuit protection

  • Card Size

    ID-1

  • Contact Type

    Sliding Contact Socket (6-Pin)

Driver and Software

Jump to...
  • PC/SC Driver

    PC/SC Specification Ver. 2.01.14 for:
    Windows XP/Vista/7/8/10 (32 and 64 bit); Windows Server 2003/2008/2012; Windows CE 6.0/7.0
    MacOS 10.5.x, 10.6.x, 10.7.x, 10.8.x, 10.9.x, 10.10.x, 10.11.x, 10.12.x, 10.13.x, 10.14.x
    Linux 2.4.x, 2.6.x, 3.x (32 and 64 bit)
    Android 4.0 and higher

  • Software

    PC/SC API
    CT-API (through wrapper on top of PC/SC)

Operating Conditions

Jump to...
  • Power Supply

    Bus-powered USB

  • Power Consumption

    < 6mA, excluding smart card; <500micro A in standby mode

  • Temperature Range

    Operating: 32 Degree to 122 Degree F (0 Degree to 50 Degree C)
    Storage: -4 Degree to 140 F (-20 Degree to 60 Degree C)

  • Operating Humidity Range

    Up to 95% RH non-condensing

  • Durability

    Sliding Contact 100,000 card insertions

  • MTBF

    500,000 hours

  • Connector

    5.8 cm cable with USB Type C connector

  • Status Indicator

    LED

  • LED

    SmartOS

  • Firmware In-Field Upgradeable

    No

  • Dimensions

    1.9 x 0.8 x 0.5" (4.8 x 2 x 1.27cm)

  • Weight

    0.42 oz (12g)

Certifications and Compliances

Jump to...
  • Systems/Standards

    EMV 2011 Ver 4.3 Level 1, ISO/IEC 7816, USB 2.0 Full Speed, CCID, Microsoft HCK

  • Regulatory/Environmental

    CE, FCC, UL60950, VCCI, RoHS2, REACH, WEEE

  • UPC Code

    55592334600495

About Identiv SCR3500 C

Are you in search of a versatile, compact, and efficient smart card reader Look no further than the Identiv's SCR3500 C uTrust USB SmartFold Type C Smart Card Reader. This PC-linked USB contact smart card reader is perfect for a wide range of mobile applications, offering full compliance with all major industry standards including ISO/IEC 7816, USB CCID, PC/SC, and Microsoft WHQL.

The SCR3500 C is designed to work seamlessly with virtually all contact smart cards and PC operating systems, making it a highly versatile tool for your digital needs. It stands out in the industry as the first smart card reader to offer a reversible type C connector, enhancing user experience for on-the-go operations.

The Identiv's SCR3500 C is not just compact, but also reliable, thanks to its robust Identiv design and mechanical functionality. It's the perfect travel companion for mobile users who demand the same level of data protection as desktop applications.

This smart card reader boasts an extended card data transmission rate of up to 600 kbps with the support of TA1=97, ensuring the shortest possible transaction time for maximum end-user convenience. The Identiv-specific SmartOS offers easy and comprehensive support of all major contact smart cards.

The Identiv driver platform, coupled with Windows Plug-and-Play driver support, allows for seamless integration into any end-user environment with minimal to no administration. With the SCR3500 C, users can enjoy convenience, transaction-time efficiency, security, and reliability for applications such as network login, Windows authentication, Single Sign-On (SSO), banking, cashless payment applications, and high-security use cases for federal governments.

The SCR3500 C comes ready to use with a reversible USB type C connector, popular with new laptops and mobile devices. It supports all major smart card ICs and technologies in just one device, optimizing transaction time for maximum end-user acceptance. Its ultra-compact and robust design is streamlined for mobile operation, making it a smart choice for those who value convenience and efficiency. Experience the power of SmartOS with the Identiv's SCR3500 C uTrust USB SmartFold Type C Smart Card Reader.

Identiv SCR3500 C Features

  • PC-linked USB contact smart card reader, perfect for a wide range of mobile applications
  • Fully compliant with major industry standards including ISO/IEC 7816, USB CCID, PC/SC, and Microsoft WHQL
  • First smart card reader in the industry offering a reversible type C connector
  • Compact and robust design, making it a reliable travel companion for mobile users
  • Features extended card data transmission rate of up to 600 kbps for maximum end-user convenience
  • Supports all major smart card ICs and technologies in a single device

Key Features

  • Ensure secure access with this Identiv smart card reader, ideal for public safety.
  • This uTrust USB reader offers reliable communication for critical security applications.
  • Enjoy easy setup with this plug-and-play smart card reader, enhancing your workflow.
  • Benefit from broad compatibility; supports various smart cards for versatile use.
  • Compact and durable, this Identiv reader is perfect for field use in public safety.
  • Trust in secure data transfer with advanced protocols, safeguarding sensitive info.

What's in the box:

  • SCR3500 C uTrust USB SmartFold Type C Smart Card Reader
  • Identiv 1 Year Limited Warranty
