Sachtler FSB 10 T Touch & Go Mechanism Fluid Head
See all Sachtler items

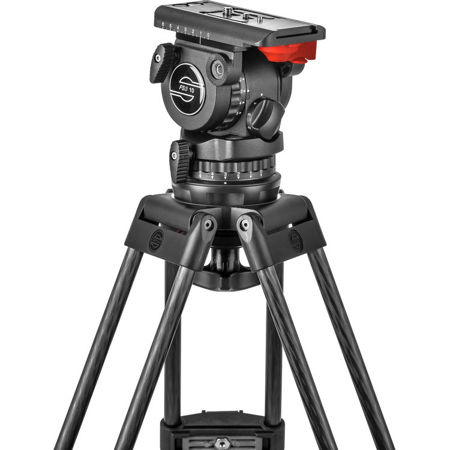

Sachtler FSB 10 T Touch & Go Mechanism Fluid Head

SKU: SCS20460001
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Sachtler : Picture 1 regular
Sachtler Video 18 S2 Fluid Head
$7,150.00
Sachtler Cine 20: Picture 1 regular
Sachtler Cine 20 100mm Fluid Head with Sideload
$7,700.00

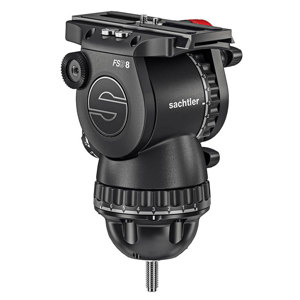

Sachtler FSB 8 MK II: Picture 1 regular
Sachtler FSB 8 MK II Fluid Head
$2,375.00$2,256.25
Sachtler aktiv10T: Picture 1 regular
Sachtler aktiv10T 100mm Touch & Go Fluid Head, SpeedLevel & SpeedSwap Technology
$3,410.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Sachtler FSB 10 T Head Specifications

  • Tilt Range

    +90 deg. to -70 deg.

  • Tilt Lock

    Yes

  • Pan Range

    360 deg.

  • Pan Lock

    Yes

  • Slide Range

    60mm (2.36")

  • Tilt Drag

    5 steps, plus zero

  • Camera Fitting

    Touch & Go S

  • Head Fitting

    100mm

  • Pan Bar

    DV 75 single pan bar (included)
    Diameter: 0.63" (16.00mm) / 1" (25.40mm)
    Length: 16.9" (429.26mm)

  • Level

    Illuminated

  • Counter Balance System

    Spring-loaded (Stepped counterbalance mechanism)

  • Counter Balance Range

    10 steps

  • Center of Gravity

    Maximum payload has been measured at 100mm

  • Battery

    CR2032 3V battery for illuminated bubble level (included)

  • Payload

    4 - 12kg (8.8 - 26.5lbs)

  • Height

    7" (177.80mm)

  • Weight

    2.7kg (5.95lbs)

  • UPC Code

    5060312083059

About Sachtler FSB 10 T Head

Extending the renowned FSB family, the FSB 10 fluid head is a new entry-level 100mm solution for work in news, documentaries, wildlife and everything in between. Backed by solid German engineering, the FSB 10 is an affordable introduction to the 100mm class and perfectly supports today's digital cinema-style cameras, such as the Sony FS7, Canon's C500 and the Blackmagic Ursa Mini. With a higher payload than the FSB 8, the FSB 10 allows users to employ a wider range of system configurations using the convenient Touch & Go interface.

Sachtler FSB 10 T Head Features

  • 10 counterbalance steps
  • 5 horizontal and vertical grades of drag, +0

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Sachtler FSB 10T Fluid Head
  • SKO12B0366 Tie Down
  • 0364 Touch & Go Camera Plate S
  • 0992SP Pan Bar Plus Right
  • CR2032 Battery (3V)
  • User Guide
  • Sachtler 2 Year Warranty (1 Year + 1 Year with Registration)
