Reviews about this item

Review Summary

2024-02-11T07:29:22

Rated 5 out of 5

top of the line

i got this tripod 11 years ago and its still running strong,one of the best,strongly recommended even though there are many other choises on the market these days.

panagiotis p.

2013-05-27T21:00:00

Rated 5 out of 5

Solid Tripod for the Price

Currently using a Canon GL2, which is a joke on this tripod. We got this model in preparation for a camera upgrade, which will be far more substantial. I have no doubts about the capability of the Sachtler 1011 to be able to easily hold a far greater load than we are giving it now. The head is very smooth, the adjustments are simple and easy to use, and the illuminated bubble level is a very nice touch. After a couple of weeks of use, I am quite pleased with the overall operation of the product.

Brent l.

Sachtler Ace L System Specifications

  • Head: Counter Balance Range

    Range: 0 - 13.2 lbs (0 - 6 kg)
    Steps: 7 steps plus 0 setting

  • Head: Quick Release Plate

    Type: Sliding Balance
    Sliding Adjustment: 4.1" (104.1mm)

  • Head: Quick Release Safety

    Yes

  • Head: Camera Mounting Screw

    1/4"-20
    3/8"

  • Head: Built-in Balance Plate

    No

  • Head: Tilt Drag

    Four Grades
    1,2,3 plus 0 setting

  • Head: Tilt Range

    +90 to -75deg.

  • Head: Tilt Lock

    Yes

  • Head: Pan Drag

    Four Grades
    1,2,3 plus 0 setting

  • Head: Pan Range

    360deg.

  • Head: Pan Lock

    Yes

  • Head: Pan Bar

    1 x Pan Bar
    Right side mounted only

  • Head: Leveling Bubble/Illuminated

    Yes/Illuminated

  • Legs: Material

    Carbon fiber

  • Legs: Head Attachment Fitting

    75 mm ball base

  • Legs: Stages/Sections

    2 stages

  • Legs: Lock Type

    Rotary clamp

  • Legs: Independent Leg Spread

    No

  • Legs: Spreader

    Mid-level
    Adjustable
    Non-removable

  • Legs: Spiked/Retractable Feet

    Non-retractable spikes with removable rubber spike protectors / ant-slip pads

  • Load Capacity

    Head: 13.2 lbs (6 kg)
    Legs: 44 lb (20 kg)

  • Height Range

    Maximum: 66.9" (170 cm)
    Minimum: 31.1" (79 cm)

  • Folded Length

    33.9" (86.10 cm)

  • Dimensions (L x W)

    Quick Release Plate: 5.5 x 2" (13.97 x 5.08 cm)

  • Weight

    Head: 3.7 lbs (1.7 kg)
    Legs: 4.9 lbs (2.2 kg) - with attached mid-level spreader
    System: 8.6 lbs (3.9 kg)

  • UPC Code

    5060312080027

About Sachtler Ace L System

FEATURED REVIEWS

Solid Tripod for the Price

By Brent l.

Currently using a Canon GL2, which is a joke on this tripod. We got this model in preparation for a camera upgrade, which will be far more substantial. I have no doubts about the capability of the Sachtler 1011 to be able to easily hold a far greater load than we are giving it now. The head is very smooth, the adjustments are simple and easy to use, and the illuminated bubble level is a very nice touch. After a couple of weeks of use, I am quite pleased with the overall operation of the pro...

View full Review

top of the line

By panagiotis p.

i got this tripod 11 years ago and its still running strong,one of the best,strongly recommended even though there are many other choises on the market these days.

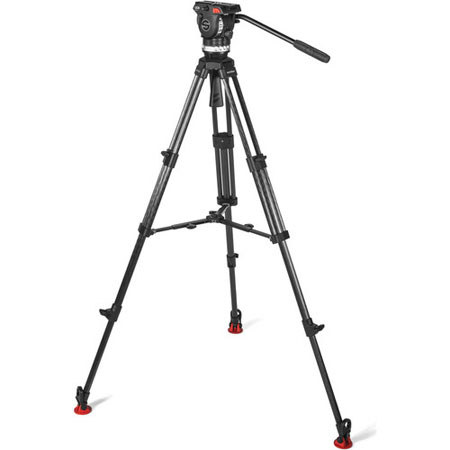

The Sachtler 1011 System Ace L MS CF Tripod Head and Legs is a tripod system for videographers who use cameras weighing up to 13.2pounds. The Ace L system enables broadcast-style performance while using lightweight components more suited to HDSLRs and compact camcorders. The Ace L fluid head features fiberglass-reinforced composite construction and weighs only 3.7 pounds. The two-stage carbon fiber legs with integrated mid-level spreader weighs 4.7 pounds. This makes the system lightweight at only 8.6 pounds.

ACE L Fluid Head
Fiberglass-reinforced composite construction that is both lightweight and strong
A counterbalance system with seven stepped settings for up to 13.2 pounds of counterbalance
The counterbalance system also features a zero setting for no counterbalance
Sachtler's Synchronized Actuated Drag (SA-drag) fluid drag system for both pan and tilt
The SA-drag system provides three drag grades, plus a zero setting for no drag
A panning range of 360deg. and tilt range of +90 to - 75deg.
The ACE L 5.5" long camera balance plate that allows 4.1" of sliding balance adjustment
A 75 mm ball for fast leveling and an illuminated bubble level built into the head
One mounting point for the pan bar on the right side of the head

CF Tripod Legs
Carbon fiber construction that is lightweight, strong and corrosion resistant
The 75 mm bowl base provides a stable platform to support the head and camera
The 2 stage leg design provides 31.1 to 66.9" in height range adjustment
The built-in adjustable mid-level spreader stabilizes the tripod legs on even and uneven surfaces
Rotary clamp leg locks to prevent the legs from slipping once the height is set
The Built-in foot spikes anchor the tripod in soft ground or sand
Removable anti-slip pads, provide grip on slippery surfaces and interior locations

Transport
The tripod and head collapse to 33.9" for compact transport or storage
The included transport clips secure the legs together during transport
The system packs into the included Ace L carry bag.

What's in the box:

  • Sachtler Pan Bar for Ace Tripods
  • Camera Plate for Ace Fluid Tripod Head
  • Camera Locator Pin for Camera
  • Balance Plate
  • 1/4"-20 Camera Tie-Down Screw
  • Middle Spreader Set for Ace Tripods
  • Leg Securing Clips (3)
  • Carry Bag
  • Sachtler 1 Year Warranty (Additional 1 Year with Product Registration)
