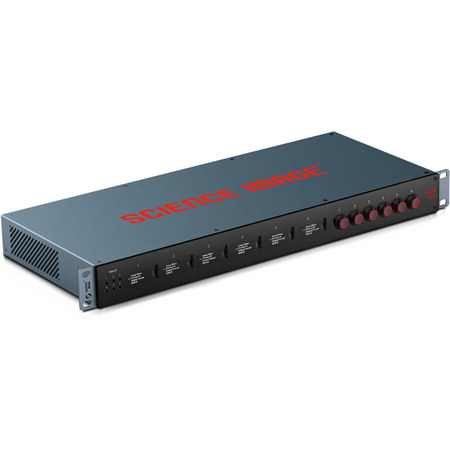

Science Image Flow Edge 6-Channel 1U 12G-SDI/HDMI 4K Rack Mount Converter
SKU: SCSIFLOWEDGE MFR: SI-FLOWEDGE6
Earn VIP Reward PointsKey Features
- Seamlessly convert 12G-SDI and HDMI 4K signals, ensuring broad compatibility for your professional setups.
- Experience crystal-clear visuals with robust 4K video resolution support up to 60fps across multiple inputs.
- Simplify your workflow with this easy-to-use 6-channel rack mount converter, perfect for live productions.
- Achieve precise synchronization and minimal delay with low latency signal processing for critical applications.
- Its portable 1U rack form factor integrates effortlessly into any studio or mobile production environment.
- Built with exceptional quality, this video format converter delivers reliable performance and durability.
Temporarily On Backorder?Expected Availability: 02/2026
Free Shipping
See Options
1
Add Adorama Protect:
Available to U.S. customers only.
Need help? Ask our experts.
Overview
Compare
Specs
Protection
Q&A
About Science Image Flow Edge
FLOW EDGE features a powerful and stable rack-mount converter integrated with updowncross conversion and optical transceiving. It allows conversion between SDI and HDMI and resolution conversion, as well as the remote optical transmitting. Further more, the outputs of multi-channels of UpdownCross conversion and optical transceiving can take place concurrently.
The most significant advantage of FLOW EDGE is its integrated functions designed for centralized deployment and management, it can be applied on site, mainframe room, broadcasting room, broadcasting vehicle and control console, etc. FLOW EDGE accommodates up to 6 models which can be freely allocated to from 1st to 6th channel according to the demands. Take FLOW EDGE supporting 6 channels for example, it is equal to 6 12G-SDI/HDMI 4K60 converters. And each channel allows the UpdownCross conversion of at least 1849 resolution formats and the 20KM long optical transmitting.
Each channel has an independent switch and scroll wheel for independent control. Scroll wheel makes parameter configuration more convenient. The built-in silent fan provides the overall heat radiation for the system and guarantees its continuous and stable operation. The wide voltage input range from 100V to 250V contributes its sound compatibility worldwide.
Functions/channel
Optical Transceiver
Optical transceiver meant for transmitting and receiving. ScienceImage T1 optical module allows high speed transmitting ranging from 12GB/s to 25GB/s and distant transmitting range up to 20KM.
Parameter display and settings
1.3 inch OLED allow to display the device's working status and parameters. User can configure parameters and working status through scroll wheel button, WebUI.
12G-SDI/HDMI 4K60 Up Down Converter
Support the interface conversion between 12G-SDI and HDMI2.0 can work simultaneous. Furthermore, any channel supports at least 1849 SMPTE standard formats of PAL/NTSC specifications.
Audio Embedded/De-Embedded
3.5mm Line IN and Headset ports allow audio embedding and audio monitoring.
Science Image Flow Edge Features
- 6-channel rackmount 4K 12G-SDI/HDMI up/down/cross converter with fiber TX/RX and analog audio in/out
- Up/down/cross conversion of 35+ formats
- 6x 12G-SDI inputs and outputs, 6 x HDMI 2.0 inputs and outputs, handling signals up to 2160p60
- 6x 3.5mm stereo headphone outputs, 5 x 3.5mm stereo line-in inputs
- 6x 1.3" OLED screen with status, video format, IP address, and more
- 6x scroll wheel button for direct menu operation as well as web UI control
Warranty Information
This product has a limited warranty of 36 months.
