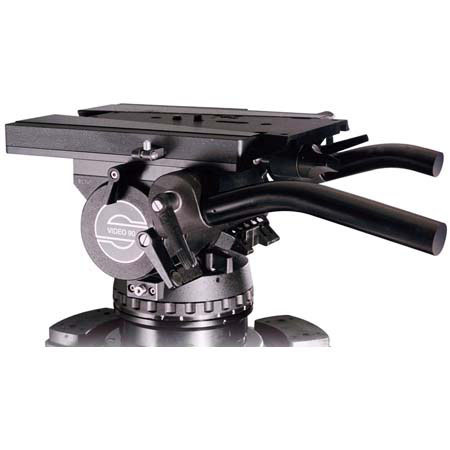

Sachtler Video 90 FB Video Fluid Head with Flatbase, Maximum Load 200 Lbs Specifications

  • Max load Capacity

    90 kg / 198 lb

  • Quick Release

    #3080 Quick Release / Wedge Plate
    Balance plate: 180 mm / 7.1

  • Pan

    360o with pan lock

  • Tilt

    +60½ / -45½

  • Female Thread size (Connect to Tripod)

    Flatbase
    Tripod / pedestal fitting: Flat base fitting for all OB tripods and pedestals

  • Weight

    14.4 kg / 31.7 lb

  • Notes

    Grades of drag: 7 horizontal and vertical, and 0
    Temperature range: -40 to +60½ C / -40 to +140½ F
    Pan bars: Two pan bar front sections, both with attachment diameters of 28.5 mm / 1.1 < r> Bubble Level
    Counterbalance Range 18 Steps, 198lb

About Sachtler Video 90 FB Video Fluid Head with Flatbase, Maximum Load 200 Lbs

Video 90 FB The Studio Professional... Professional camera operators choose the Video 90 FB for OB and studio applications for good reasons. The fluid head features direct-response horizontal and vertical brakes. Mounted on the back of the head, they are absolutely vibration-free, thus guaranteeing exceptionally smooth operation. The integrated assembly lock lets you mount the camera quickly and safely, while a fine tuning knob ensures perfect counterbalance.

The Sachtler Quick fix, a standard feature of the Video 90 FB, lets you mount flat base heads with a single screw. This saves a lot of time, especially if you have to change equipment quickly, which is all in a normal day's work in OB environments. Two built-in threaded holes for the teleprompter tubes, a feature of the Video 90 FB sliding plate, allow you to place the teleprompter right next to the rotating axis. Do you need to use counterweights This is no problem for the Video 90 FB, which supports maximum loads up to 90 kg / 198 lb.

Video 90 FB.... For OB and studio applications. Professional cameramen have long chosen the Video 90 for OB and studio applications, and for good reason: light-weight, at the same time supporting enormous loads up to 90 kg / 200 lb, a simple, sturdy, squeeze-proof construction, and unsurpassed leak-proof, frictionless, maximum damping that is identical on the horizontal and vertical planes. Maximum damping action for studio and OB applications. A high-performance, jerk-free damping system is indispensable for long focal lengths in OB applications. Broadcasting professionals know they can rely on Sachtler damping systems. It is always at hand in full force.

What's in the box:

  • Sachtler Video 90 FB Video Fluid Head
  • Right Front Section Pan Bar (B-3073-020)
  • Left Front Section Pan Bar (B-3074-020)
  • Quick Release & Wedge Plate (3080)
  • Sachtler 1 Year Warranty (Additional 1 Year with Product Registration)
