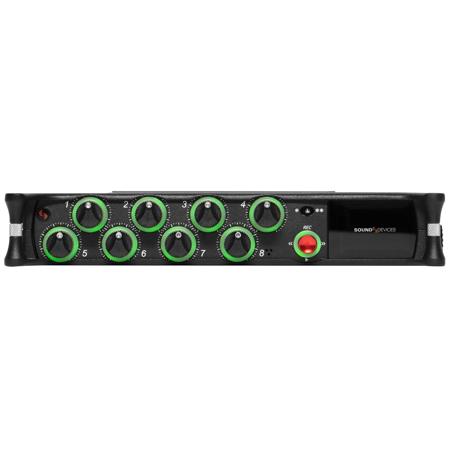

Sound Devices MixPre-10 II 8 Preamp 12-Track 32-Bit Float Audio Recorder with USB Audio Interface & XLR/TRS Combo Input

SKU: SDMIXPRE10II MFR: MIXPRE-10 II
Earn VIP Reward Points

Key Features

  • Capture pristine audio with the MixPre-10 II's eight crystal-clear preamps, perfect for field recording.
  • Record up to 12 tracks of 32-bit float audio, ensuring your sound recordings have unmatched dynamic range.
  • Use as a versatile USB audio interface for podcasting, music production, and streaming with ease.
  • Enjoy flexible connectivity with XLR/TRS combo inputs, ideal for mics, instruments, and line-level sources.
  • Control your field recorder wirelessly via Bluetooth LE, using the intuitive Wingman app for remote operation.
  • Benefit from timecode capabilities, triggering auto-record start/stop from cameras via HDMI or Aux In.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$179.99

3 Year

$249.99

5 Year

$489.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Jason Elon G : Clean preamps & 32bit floatL M : WorkANATOLI R : RecommendTHOMAS G : I was looking for a field recorder with a large number of inputs, and for my budget, the choices were wither this or the Zoom F8. I ended up choosing this for the ergonomics; the tiny dials on the Zoom seemed like they'd be difficult to operate accurately with my large fingers.Jorge M : The number of inputs

Reviews about this item

Review Summary

2022-08-17T17:01:49

Rated 5 out of 5

Very good

Is in excellent products

Johanna M.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Sound Devices MixPre-10 II Specifications

Audio Inputs

Audio Inputs

Jump to...
  • Frequency Response

    10Hz to 80kHz +/- 0.5dB re 1kHz @ 192kHz sample rate

  • THD + Noise

    0.005% max (@1kHz, 22-22kHz BW, gain=20dB, -10dBu in)

  • ADC

    32 bit precision; 142dB dynamic range min (A-weighted, gain=10dB, fader=0dB)

  • Equivalent Input Noise

    -130dBV (-128dBu) max (A-weighting, gain=76dB, 150 ohm source impedance)

  • Inputs

    Mic: XLR active-balanced; 4k input
    Line: XLR active-balanced; 4k input
    Aux/Mic in: 3.5mm TRS, 2-channel unbalanced; 100k input
    Line: 1/4-inch TRS active-balanced; 4k input
    USB Audio: 4 channels
    All inputs fully RF-filtered and overload protected

  • Gain

    Mic input: +6dB to +76dB
    Line input: -20dB to +30dB
    Fader: -inf to +20dB
    Headphone: -inf to +20dB
    Total, Mic-to-recording (max): +96dB
    Aux In (Mic): Gain = +10dB to +40dB
    Aux In (Line): Gain = -10dB to +20dB
    Total Aux Gain including Fader (Mic-to-recording): +60dB

  • Maximum Input Level

    Mic XLR: +14dBu (limiters on or off)
    Line XLR/ 1/4-inch: +28dBu (limiters on or off)
    Aux In (Mic): -10dBu
    Aux In (Line): +10dBu

  • Low Cut Filters

    40Hz to 160Hz (adjustable), 18 dB/oct. First stage analog, subsequent stages digital

  • Microphone Powering

    Mic XLRs: 48V via 6.8k resistors, 10mA each
    Mic 3.5mm: 3V @ 3k source

  • Limiters

    Limiter at all gain stages, range > 40dB. First stage analog, subsequent stages digital. Adjustable Threshold, Ratio, and Release

Audio Outputs

Jump to...
  • DAC feeding Stereo Out, Headphone Out

    32 bit precision; 115dB dynamic range (A-weighted)

  • L/R Out

    TA3 2-channel balanced, 1.1K max output impedance, +18 dBu max output level

  • X1/X2 Out

    3.5mm TRS stereo unbalanced, 500 ohm output impedance, +7.8dBu max output level

  • Headphones Out

    3.5mm TRS stereo unbalanced, 300mW + 300mW, for use with any impedance headphones

  • Audio Interface (USB-C)

    12-in/4-out; 44.1 to 96 kHz; 16/24-bit; Class-compliant USB 2.0 high speed or ASIO driver (supplied via download)

  • Mass Storage (USB-C)

    USB 2.0 high speed

  • Keyboard (USB-A)

    Text entry and control

  • Thumbdrive (USB-A)

    Manual or auto-copy to drive
    Midi Control Surface (USB-A)

Recording

Jump to...
  • Maximum Record Tracks

    12 Tracks Stereo mix + 10 ISOs

  • Sampling Frequency

    44.1, 47.952, 48, 48.048, 96, 192 kHz

  • Bit Depth

    16, 24, 32 Float

  • Recording Storage

    Type: SD, SDXC, SDHC Card (USB thumbdrive, copy only)
    Max Storage Size: 512 GB (SDXC)
    Card format: exFAT

  • Recording File Type

    Polyphonic WAV

Timecode

Jump to...
  • Timecode Modes

    Free Run
    Time of Day (file stamped w/current ToD)
    Rec Run
    Ext LTC (file stamped w/incoming LTC on 3.5mm Aux In)
    Camera TC (file stamped w/incoming TC from cameras that output TC)

  • Timecode Frame Rates

    Auto-detects (fps): 23.98 (same as 23.976)
    24
    25
    29.97DF
    29.97ND
    30
    30DF

  • Sync Source

    Internal, Word Clock, Ext LTC

  • BNC In (TC In)

    Switchable between Timecode (default) or Word Clock Input
    Timecode: 20k ohm impedance, 0.3 V - 3.0 V p-p ( 17 dBu - +3 dBu)
    Word Clock: 10k ohm impedance, 1.5V p-p

  • BNC Out (TC Out)

    Switchable between Timecode (default) or Word Clock Output
    Timecode: 1k ohm impedance, 3.0V p-p (+12 dBu)
    Word Clock: 75 ohm impedance, 5V p-p

  • HDMI

    TC Reader via HDMI

  • Sample/Timecode Accuracy

    0.2 ppm (0.5 frames per 24 hours)

Remote Control

Jump to...
  • Bluetooth LE

    Wireless control using Wingman app

  • HDMI (micro)

    Auto-record start/stop trigger from cameras that output record flag over HDMI

  • Timecode

    Auto-record start/stop trigger via Aux In timecode

  • Touch Screen

    320x256; 1.6", color, sunlight-viewable IPS LCD

  • AA Batteries

    8x AA sled (included). NiMH recommended

  • L-Mount

    Optional sled for 2x (hot-swappable) Li-ion batteries

  • AC Adapter

    XL-WPH3 (included): Universal, 45 W in-line AC-to-DC power supply Hirose 4-pin DC plug, with detachable IEC power cord. 100-240, 50/60Hz

Environmental

Jump to...
  • Operating

    -4 to 140 Degree F (-20 to 60 Degree C), 0 to 90% relative humidity; (non-condensing)

  • Storage

    -40 to 185 Degree F (-40 to 85 Degree C)

Physical

Jump to...
  • Dimensions (H x W x D)

    1.3 x 8.1x 6.8" (36 x 206 x 175mm)

  • Weight

    32.1 oz (0.91kg) (unpackaged, without batteries)

  • UPC Code

    854454006541

19 Accessories for Sound Devices MixPre-10 II 8 Preamp 12-Track 32-Bit Float Audio Recorder with USB Audio Interface & XLR/TRS Combo Input

  • All Accessories (19)
  • Batteries & Power Supply (6)
  • Memory & Storage (1)
  • Cables & Adapters (6)
  • XLR Cables (1)
  • Headphones (5)

About Sound Devices MixPre-10 II

FEATURED REVIEWS

Very good

By Johanna M.

Is in excellent products

Are you in the market for a professional, high-quality, and versatile audio recorder Look no further than the MixPre-10 II 8 Preamp 12-Track 32-Bit Float Audio Recorder with USB Audio Interface & XLR/TRS Combo Input. This advanced and reliable device is perfect for a range of applications, from music production and film post-production to live sound reinforcement.

The MixPre-10 II is equipped with eight ultra-low-noise Kashmir preamps, allowing you to record multiple actors, podcasters, or audio for film with superior quality. It supports a 32-bit float bit depth and a 192 kHz sample rate, ensuring high-performance audio recording. This latest generation of Sound Devices' award-winning MixPre Series boasts an impressive 142 dB of dynamic range, offering unparalleled audio clarity.

This versatile audio recorder offers flexible USB output routing and USB hub support, making it easy to connect multiple USB devices simultaneously. It also features the new MixAssist Plugin, a field-proven automixer compatible with both the MixPre Original Series and MixPre II Series. This plugin enhances your recording experience by reducing unwanted microphone and room noise during recording.

The MixPre-10 II is designed for customization to suit your specific needs. You can record internally to a compatible SD card or stream your podcast over USB to your computer. Power options are flexible too, with wall power, AA, or Sony L-mount batteries. You can adjust limiters, bit depth, sample rates, gain, pan, low-cut, phase inversion, and phantom power to your preference.

Stay in sync with your camera using the internal timecode generator, or feed timecode in via HDMI, Aux In, or BNC. The MixPre-10 II is rugged, lightweight, and compact, making it easy to carry in a bag or mount on a tripod or camera.

For musicians and songwriters, the Musician Plugin is available to create songs using the MixPre-10 II as a standalone recorder or USB interface. The Ambisonics Plugin is also available for recording in 360-degree audio with an ambisonic microphone.

With the MixPre-10 II, you're not just getting a high-quality audio recorder, you're investing in a versatile tool that can adapt to your audio recording needs. Whether you're recording field audio, sound effects, live music, or just starting your audio journey, the MixPre-10 II is the perfect companion.

Sound Devices MixPre-10 II Features

  • v5.0 Firmware
  • Eight ultra-low-noise Kashmir microphone preamps with adjustable limiters capture high quality audio in the field, on set, or with a computer
  • Create a mix using the built-in 10 x 4 portable mixer
  • Record up to 12 tracks to an SD card and backup to a USB thumb drive
  • 12-in, 4-out USB audio interface streams to your computer via USB-C
  • Choose bit depths from 16 to 32-bit float, and sampling rates from 44.1 kHz to 192 kHz
  • Internal LTC timecode generator. Timecode In/Out via BNC or Aux In/Stereo Out
  • Timecode and record triggering via HDMI
  • USB-A for control surfaces, keyboards, and auto-copy to USB drive
  • In-unit ISO mixing, gain, pan, low-cut, phase inversion, and phantom power
  • Sunlight-readable color touch screen and LED metering
  • Lightweight, durable, and small: perfect for bag use, mobile recording, or a home studio
  • Powerful 300 mW+300 mW headphone amp allows clear and accurate reference of audio
  • Includes a MX-8AA Battery Sled (batteries not included), XL-WPH3 AC Power Supply, and USB-C to USB-C cable
  • Customize with plugins from the Plugin Store

Product Documents

User Manual

Key Features

  • Capture pristine audio with the MixPre-10 II's eight crystal-clear preamps, perfect for field recording.
  • Record up to 12 tracks of 32-bit float audio, ensuring your sound recordings have unmatched dynamic range.
  • Use as a versatile USB audio interface for podcasting, music production, and streaming with ease.
  • Enjoy flexible connectivity with XLR/TRS combo inputs, ideal for mics, instruments, and line-level sources.
  • Control your field recorder wirelessly via Bluetooth LE, using the intuitive Wingman app for remote operation.
  • Benefit from timecode capabilities, triggering auto-record start/stop from cameras via HDMI or Aux In.

What's in the box:

  • MixPre-10 II 8 Preamp 12-Track 32-Bit Float Audio Recorder
  • AC Power Supply (XL-WPH3)
  • USB-C to USB-C Cable
  • (MX-8AA Battery Not Included)
  • Sound Devices 1 Year Limited Warranty with 1 Year Extension with Registration
