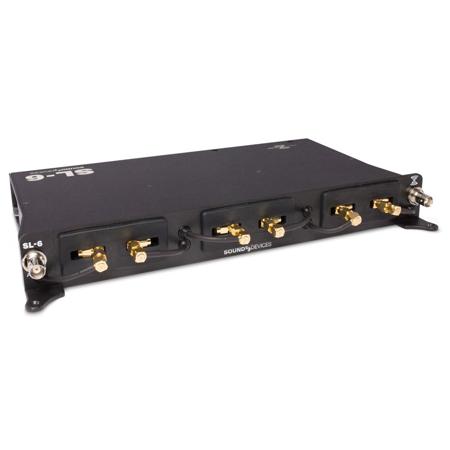

Sound Devices SL-6 Powering and Wireless System for 688 Field Mixer

The optional SL-6 powering and wireless system simplifies interconnection between the 688 and multiple channels of wireless by accepting three dual-channel slot-in receivers. The SL-6 offers all powering and audio interconnection for standard slot-in receivers and additional control and monitoring when used with SuperSlot-compatible receivers. The SL-6 easily attaches directly to the 688's top panel and also offers antenna signal distribution to further declutter the bag.

• Accepts three dual-channel slot-in wireless receivers for a total of six channels
• Compatible with existing slot-in and new SuperSlot wireless receivers
• Ability to set SuperSlot-compatible receiver frequency and power on/off from the 688
• Ability to monitor SuperSlot-compatible receiver battery, audio and RF levels from the 688
• Accepts analog or digital audio depending on wireless receiver
• Built-in antenna signal distribution
• NP-1 battery slot for powering 688, receivers and external peripherals
• USB charging port
• Two 12V isolated outputs
• Two non-isolated direct battery outputs
• PowerSafe 10-second power reserve
• Easy to attach to the 688

Powering
With its NP1 battery slot, USB charging port, two 12 V isolated outputs and two non-isolated direct battery outputs, the SL-6 is a great powering hub for peripheral devices in a sound mixer's bag. Regarded as the industry's first non-proprietary, open wireless control and interfacing standard, SuperSlot, developed by Sound Devices, is the result of its collaboration with a number of leading wireless manufacturers including Audio Ltd, Lectrosonics, Sennheiser and Wisycom. The standard allows for all powering and audio interconnection, plus control and monitoring between SuperSlot-compatible mixers and receivers.
