16% Off

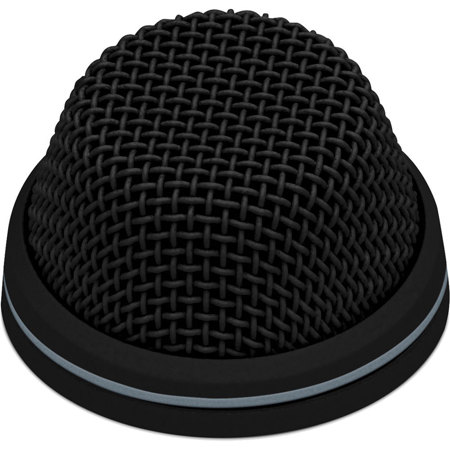

Sennheiser MEB 104-L Cardioid Install Boundary Microphone, 40Hz-20kHz Frequency Response, 200Ohms Impedance, 14 mV/Pa Sensitivity, Black

SKU: SE104LB MFR: MEB 104-L B
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this Sennheiser boundary microphone, perfect for conference rooms.
  • Achieve clear sound with the cardioid polar pattern, minimizing background noise pickup.
  • Enjoy a wide 40Hz-20kHz frequency response for natural, accurate voice reproduction.
  • This install boundary microphone's low noise ensures professional-quality recordings every time.
  • Benefit from robust build quality, designed for reliable performance in demanding environments.
  • Integrate easily with phantom power; this condenser microphone offers exceptional clarity.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$49.99

3 Year

$59.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Sennheiser MEB 104-L Specifications

  • Transducer principle

    Pre-polarized condenser microphone

  • Acoustic principle

    Boundary layer microphone

  • Pick-up pattern

    Cardioid

  • Frequency response

    40 Hz - 20 kHz

  • Nominal impedance at 1 kHz

    200Ohms

  • Sensitivity

    14 mV/Pa

  • Maximum sound pressure level

    125 dB

  • Equivalent noise level

    28 dB (A)

  • Equivalent noise level (as CCIR 468-3)

    38 dB (CCIR)

  • Dynamic range

    97 dB (A)

  • Phantom power

    P 48

  • Current consumption

    6 mA

  • Connector

    XLR-5

  • Pin assignment XLR-5M out

    1 = gnd
    2 = + (Mic +)
    3 = - (Mic - )
    4 = LED green (trigger signal)
    5 = LED red (default)

  • LED light ring color

    red / green

  • TTL levels for LED activation

    high > 2.4 V
    low < 0.4 V

  • Operating temperature

    0 deg. +40 deg.C / 32deg. to 104deg.F

  • Thread

    M 20

  • Dimension (H x D)

    90 x 28.5mm / 3.543 x 1.12" (19 mm above surface)

  • Weight

    60g / 2.11oz

  • UPC Code

    615104230255

About Sennheiser MEB 104-L

After careful design and engineering, the Sennheiser MEB 104-L Cardioid Install Boundary Microphone emerges as a compact, stylish, and unobtrusive audio solution. This high-quality, black boundary microphone seamlessly integrates into any interior design, making it an ideal choice for installations in tables or ceiling tiles.

Boasting a cardioid polar pattern, the MEB 104-L is renowned for its ability to precisely capture sound from a specific direction while effectively minimizing noise interference from other directions. This feature makes it an excellent tool for isolating sound in a particular area or for reducing ambient noise, thereby ensuring professional-grade audio capture.

The MEB 104-L Cardioid Install Boundary Microphone also impresses with its wide frequency response of 40Hz-20kHz. This broad range allows it to accurately record diverse types of audio, from speech and music to sound effects, making it a versatile choice for various audio recording needs.

Further enhancing its performance, this microphone features a sensitivity of 14 mV/Pa and an impedance of 200Ohms. These specifications contribute to the production of clear, high-quality audio recordings, making the MEB 104-L a reliable choice for professional audio capture.

This durable microphone houses a proven Sennheiser microphone capsule, ensuring optimal speech intelligibility. The MEB 104-L variant is also equipped with a bi-color LED ring, providing a convenient status indication. With its blend of style, performance, and durability, the Sennheiser MEB 104-L Cardioid Install Boundary Microphone stands as a superior choice for professional audio recording.

Sennheiser MEB 104-L Features

  • Unobtrusive, timeless design
  • Optimized for speech

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Capture pristine audio with this Sennheiser boundary microphone, perfect for conference rooms.
  • Achieve clear sound with the cardioid polar pattern, minimizing background noise pickup.
  • Enjoy a wide 40Hz-20kHz frequency response for natural, accurate voice reproduction.
  • This install boundary microphone's low noise ensures professional-quality recordings every time.
  • Benefit from robust build quality, designed for reliable performance in demanding environments.
  • Integrate easily with phantom power; this condenser microphone offers exceptional clarity.

What's in the box:

  • Sennheiser MEB 104-L Cardioid Install Boundary Microphone
  • Mounting Material
  • Leaflet
  • Sennheiser 2 Year Limited Warranty
