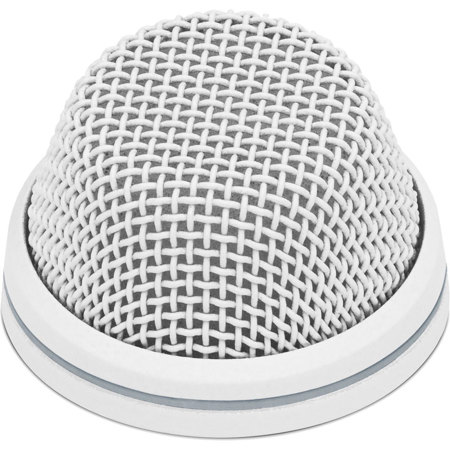

Sennheiser MEB 104-L Cardioid Install Boundary Microphone, 40Hz-20kHz Frequency Response, 200Ohms Impedance, 14 mV/Pa Sensitivity, White

SKU: SE104LW MFR: MEB 104-L W
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this Sennheiser boundary microphone, perfect for conference rooms.
  • Achieve clear sound with the MEB 104-L's cardioid polar pattern, minimizing unwanted background noise.
  • Enjoy a wide 40Hz-20kHz frequency response for natural, accurate sound reproduction in any recording.
  • The durable Sennheiser microphone ensures long-lasting performance for crucial recordings and meetings.
  • Benefit from low noise (28 dB (A)) ensuring clean audio for professional recordings with this microphone.
  • Easily install this boundary microphone for discreet, high-quality audio capture in various settings.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$49.99

3 Year

$59.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Sennheiser MEB 104-L Specifications

  • Transducer principle

    Pre-polarized condenser microphone

  • Acoustic principle

    Boundary layer microphone

  • Pick-up pattern

    Cardioid

  • Frequency response

    40 Hz - 20 kHz

  • Nominal impedance at 1 kHz

    200Ohms

  • Sensitivity

    14 mV/Pa

  • Maximum sound pressure level

    125 dB

  • Equivalent noise level

    28 dB (A)

  • Equivalent noise level (as CCIR 468-3)

    38 dB (CCIR)

  • Dynamic range

    97 dB (A)

  • Phantom power

    P 48

  • Current consumption

    6 mA

  • Connector

    XLR-5

  • Pin assignment XLR-5M out

    1 = gnd
    2 = + (Mic +)
    3 = - (Mic - )
    4 = LED green (trigger signal)
    5 = LED red (default)

  • LED light ring color

    red / green

  • TTL levels for LED activation

    high > 2.4 V
    low < 0.4 V

  • Operating temperature

    0 deg. +40 deg.C / 32deg. to 104deg.F

  • Thread

    M 20

  • Dimension (H x D)

    90 x 28.5mm / 3.543 x 1.12" (19 mm above surface)

  • Weight

    60g / 2.11oz

  • UPC Code

    615104230316

About Sennheiser MEB 104-L

From professional recording studios to home audio setups, the Sennheiser MEB 104-L Cardioid Install Boundary Microphone is a high-quality, reliable choice for capturing sound. This innovative microphone, available in a sleek white finish, boasts a compact and unobtrusive design that seamlessly fits into any interior style.

Designed for easy installation into surfaces such as tables or ceiling tiles, this microphone is not only versatile but also user-friendly. It features a cardioid polar pattern, renowned for its ability to pick up sound from a specific direction while minimizing background noise. This makes it an ideal choice for recording in various settings, whether you're capturing speech, music, or sound effects.

The MEB 104-L microphone is equipped with a proven Sennheiser microphone capsule, ensuring optimal speech intelligibility. With a frequency response of 40Hz-20kHz, it can capture a wide range of sound frequencies, offering superior audio quality. The microphone's sensitivity of 14 mV/Pa and an impedance of 200Ohms further enhance its compatibility with a variety of recording equipment.

Adding to its professional features, the MEB 104-L variant includes a bi-color LED ring for status indication, providing visual feedback during use. Encased in a rugged housing, this durable microphone is built to withstand the rigors of regular use, making it a long-lasting addition to your audio equipment collection.

In summary, the Sennheiser MEB 104-L Cardioid Install Boundary Microphone is a blend of innovative design, professional performance, and reliable durability, making it a top choice for all your sound recording needs.

Sennheiser MEB 104-L Features

  • Unobtrusive, timeless design
  • Optimized for speech

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Capture pristine audio with this Sennheiser boundary microphone, perfect for conference rooms.
  • Achieve clear sound with the MEB 104-L's cardioid polar pattern, minimizing unwanted background noise.
  • Enjoy a wide 40Hz-20kHz frequency response for natural, accurate sound reproduction in any recording.
  • The durable Sennheiser microphone ensures long-lasting performance for crucial recordings and meetings.
  • Benefit from low noise (28 dB (A)) ensuring clean audio for professional recordings with this microphone.
  • Easily install this boundary microphone for discreet, high-quality audio capture in various settings.

What's in the box:

  • Sennheiser MEB 104-L Cardioid Install Boundary Microphone
  • Mounting Material
  • Leaflet
  • Sennheiser 2 Year Limited Warranty
