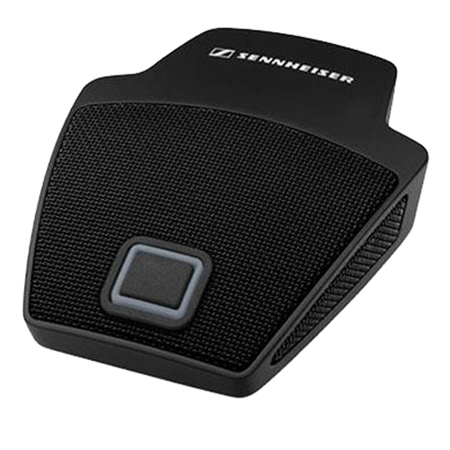

Sennheiser MEB 114-S Cardioid Table Boundary Microphone, Black
See all Sennheiser items

Sennheiser MEB 114-S Cardioid Table Boundary Microphone, 40Hz-20kHz Frequency Response, 200Ohms Impedance, 10 mV/Pa Sensitivity, Black

SKU: SE114SB
Be the first to review this item

This item is no longer available.

Recommended Alternatives

undefined undefined: Picture 1 regular

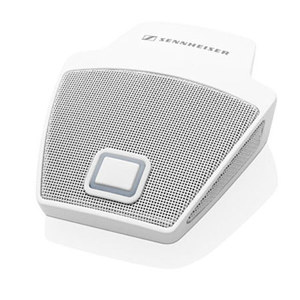

Sennheiser MEB 114-S Cardioid Table Boundary Microphone, White
$359.00
undefined undefined: Picture 1 regular
Sennheiser MD 421 KOMPAKT Multipurpose Dynamic Cardioid Microphone w/Drum Clamp
$319.00
$275.00
undefined undefined: Picture 1 regular
Sennheiser e 602-II Bass Instrument Microphone
$189.00
$159.00
undefined undefined: Picture 1 regular
Sennheiser e 604 Dynamic Cardioid Mic with Pivot Mount for Drum/Brass Instrument
$189.00
$159.00
undefined undefined: Picture 1 regular
Sennheiser e 845-S Wired Supercardioid Handheld Dynamic Microphone With Switch
$129.00
$109.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Sennheiser MEB 114-S Specifications

  • Transducer principle

    Pre-Polarized Condenser Microphone

  • Acoustic principle

    Boundary Layer Microphone

  • Pick-up pattern

    Cardioid

  • Frequency response

    40 Hz - 20 kHz

  • Nominal impedance at 1 kHz

    200Ohms

  • Sensitivity

    10 mV/Pa

  • Maximum sound pressure level

    140 dB

  • Equivalent noise level

    29 dB (A)

  • Equivalent noise level (as CCIR 468-3)

    39 dB (CCIR)

  • Dynamic range

    111 dB (A)

  • Phantom power

    P 48

  • Current consumption

    5.3 mA

  • LED light ring color

    Red / green

  • Microphone modes

    Toggle on/off
    Push to mute
    Push to talk
    permanent on (external LED control)

  • Switchable low cut

    at 120 Hz

  • Pin assignment logic connector

    Trigger signal at the logic connector:
    Logic in (LED control)
    GND
    Logic out (switch signal)

  • Logic out

    High level output voltage > 2.4 V
    Low level output voltage < 0.4 V

  • Logic In

    High level input voltage > 2.0 V
    Low level input voltage < 0.8 V

  • Operating temperature

    -10 deg. to 50 deg.C / 14 deg. to 122 deg.F

  • Dimensions (W x D x H)

    85 x 100 x 25mm / 3.34 x 3.93 x 0.98"

  • Weight

    291g / 10.26oz

About Sennheiser MEB 114-S

The Sennheiser MEB 114-S Cardioid Table Boundary Black Microphone is a sturdy on-table boundary layer microphone; MEB 114 constitutes an improvement for any conferencing system. In its -S version it additionally features a programmable microphone button (PTT, PTM, toggle on/off, permanent on) and a bi-color LED ring for status indication. A camera or media control system can be triggered via the TTL logic out on the bottom side. Thanks to its rugged housing and its high-quality microphone capsule the MEB 114 ensures the best speech intelligibility.

Sennheiser MEB 114-S Features

  • Cardioid Polar Pattern
  • Bicolor LED for Status
  • Programmable On, On/Off, PTT, PTM Modes
  • 40 Hz to 20 kHz Frequency Range
  • 48V Phantom Power
  • Low-Frequency Roll-Off Switch

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Cardioid Polar Pattern
  • Bicolor LED for Status
  • Programmable On, On/Off, PTT, PTM Modes
  • 40 Hz to 20 kHz Frequency Range
  • 48V Phantom Power
  • Low-Frequency Roll-Off Switch

What's in the box:

  • Sennheiser MEB 114-S Cardioid Table Boundary Microphone
  • Microphone Cable (3m)
  • Leaflet
  • Sennheiser 2 Year Limited Warranty
