What kind of applications is the Exos X18 14TB 3.5" SAS III Internal Hard Drive suitable for?

The Exos X18 is ideal for scalable hyperscale applications, cloud data centers, big data applications, high-capacity density RAID storage, and mainstream enterprise external storage arrays. It's also suitable for distributed file systems, including Hadoop and Ceph.

What security features does the Exos X18 14TB 3.5" SAS III Internal Hard Drive offer?

The Exos X18 features advanced data security measures including password protection and AES-256 hardware encryption with Seagate Secure to keep your data safe and secure.

What are PowerChoice and PowerBalance options in the Exos X18 14TB 3.5" SAS III Internal Hard Drive?

PowerChoice and PowerBalance are features that allow for optimized power consumption when the hard drive is in use and idle. These features are customizable to fit your specific needs.

What does a 14 TB/year workload rating and 2.5M-hr MTBF mean for the Exos X18 14TB 3.5" SAS III Internal Hard Drive?

A 14 TB/year workload rating and 2.5M-hr MTBF (Mean Time Between Failures) indicate the reliability and durability of the Exos X18. It's built to meet the most demanding storage requirements, providing superior performance even under heavy use.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Seagate Exos X18 Specifications

General

General

Jump to...
  • Capacity

    14TB

Features

Jump to...
  • Helium Sealed-Drive Design

    Yes

  • Conventional Magnetic Recording (CMR)

    Yes

  • Protection Information (T10 DIF)

    None

  • SuperParity

    Yes

  • Low Halogen

    Yes

  • PowerChoice

    Yes (Idle Power Technology)

  • PowerBalance

    Yes (Power/Performance Technology)

  • Hot-Plug Support

    Yes

  • Cache, Multi-segmented

    256MB

  • Organic Solderability Preservative

    Yes

  • RSA 3072 Firmware Verification (SD&D)

    Yes

Reliability/Data Integrity

Jump to...
  • Mean Time Between Failures (MTBF, hours)

    2500000

  • Reliability Rating

    0.35% (@ Full 24 x7 Operation (AFR))

  • Non-recoverable Read Errors

    1 sector per 10E15 (per Bits Read)

  • Power-On Hours per Year (24 x7)

    8760

  • 512e Sector Size (Bytes per Sector)

    512, 520, 528

  • 4Kn Sector Size (Bytes per Sector)

    4,096, 4,160, 4,224

Performance

Jump to...
  • Spindle Speed (RPM)

    7,200 RPM

  • Interface Access Speed (Gb/s)

    12.0, 6.0, 3.0

  • Max. Sustained Transfer Rate OD

    270/258 (MB/s, MiB/s)

  • Random Read/Write 4K QD16 WCD (IOPS)

    170/550

  • Average Latency

    4.16ms

  • Interface Ports

    Dual

  • Rotation Vibration

    12.5 (@ 20-1500 Hz (rad/sq. sec))

Power Consumption

Jump to...
  • Idle A (W) Average

    5 W

  • Max Operating

    9.1, 6.3 (Random Read/Write 4K/16Q (W))

  • Power Supply Requirements

    +12 V and +5 V

Environmental

Jump to...
  • Operating Temperature

    41-140 Degree F (5-60 Degree C)

  • Vibration, Non-operating

    2.27 (2 to 500 Hz (Grms))

  • Shock, Operating

    50 (2 ms (Read/Write) (Gs))

  • Shock, Non-operating

    200 (2 ms (GS))

Physical

Jump to...
  • Dimensions (H x W x D)

    1.03 x 4.01 x 5.79" (26.1 x 101.85 x 147mm)

  • Weight

    1.43 lbs (650g)

About Seagate Exos X18

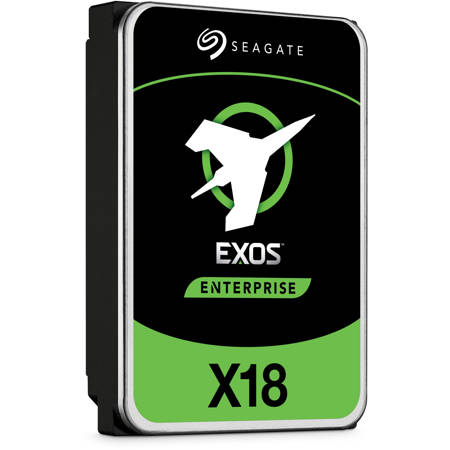

Before you settle for less, consider the Exos X18 14TB 3.5" SAS III Internal Hard Drive by Seagate, a reliable and high-performance solution for your data storage needs. This durable and spacious hard drive is designed to deliver maximum storage capacity with the highest rack-space efficiency, making it an ideal choice for enterprise-level systems and data-intensive applications.

The Exos X18 is not just about space; it's about speed too. With a spin speed of 7200 RPM and the advanced SAS III interface, this hard drive ensures faster data transfer and access, enhancing your system's responsiveness. Its advanced write caching feature, coupled with data transfer rates of up to 270 MB/s, provides a significant boost in performance without compromising on capacity.

This hard drive is designed with scalability in mind, supporting data analytics capabilities and other denser architectures for optimal rack space efficiency. It's a perfect fit for scalable hyperscale applications, cloud data centers, massive scale-out data centers, and big data applications. It's also ideal for high-capacity density RAID storage, mainstream enterprise external storage arrays, and distributed file systems, including Hadoop and Ceph.

The Exos X18 also prioritizes data security. It features password protection and AES-256 hardware encryption with Seagate Secure, ensuring your data is safe and secure. Moreover, it offers PowerChoice and PowerBalance options, allowing for optimized power consumption when in use and idle, customizable to fit your specific needs.

With a 14 TB/year workload rating and 2.5M-hr MTBF, the Exos X18 is built to meet the most demanding storage requirements, offering superior reliability and durability. Whether it's for enterprise backup and restore, D2D, virtual tape, or centralized surveillance, the Exos X18 14TB 3.5" SAS III Internal Hard Drive is a dependable choice for all your data storage needs.

Seagate Exos X18 Features

  • Market-leading 14 TB HDD offering the highest capacity available for more petabytes per rack
  • Highly reliable performance with enhanced caching, making it the logical choice for cloud data center and massive scale-out data center applications
  • PowerBalance feature optimizes Watts/TB
  • Maximize total cost of ownership savings through lower power and weight with helium sealed-drive design
  • Proven helium side-sealing weld technology for added handling robustness and leak protection
  • Digital environmental sensors to monitor internal drive conditions for optimal operation and performance
  • Data protection and security - Seagate Secure features for safe, affordable, fast and easy drive retirement

Key Features

  • High-capacity 14TB 3.5" SAS III Internal Hard Drive for maximum storage and efficiency
  • Rapid data transfer with 7200 RPM spin speed and up to 270 MB/s data transfer rates
  • Scalable design for data analytics capabilities and denser architectures
  • Advanced data security with password protection and AES-256 hardware encryption
  • Optimized power consumption with PowerChoice and PowerBalance options
  • Superior reliability with a 14 TB/year workload rating and 2.5M-hr MTBF

What's in the box:

  • Seagate Exos X18 14TB 3.5" SAS III Internal Hard Drive (OEM)
  • Seagate 5 Year Limited Warranty
