Sennheiser EW-DX 835-S SET Two-Channel Digital Wireless System with Two Handheld Mics & MMD 835 Capsules, Q1-9:470 - 550 MHz

SKU: SE509300 MFR: 509300
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this Sennheiser wireless microphone system, perfect for live performances.
  • Enjoy a wide 328 ft range with this digital wireless system, offering freedom on stage or in presentations.
  • The handheld microphone's dynamic capsule and cardioid pattern ensures focused sound capture, reducing feedback.
  • Get up to 12 hours of battery life using the included rechargeable battery pack for extended use.
  • This wireless microphone system is ideal for public speaking, karaoke, and houses of worship.
  • The rugged metal construction of this wireless microphone ensures durability for reliable, long-term performance.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Sennheiser EW-DX 835-S Specifications

System
  • Wireless Technology

    Digital UHF

  • Number of RF Channel Frequencies

    3200

  • Included Transmitters

    2x Handheld

  • Diversity

    Intelligent Switching Diversity

  • RF Frequency Band

    Q1-9: 470.2 to 550 MHz

  • RF Bandwidth

    80 MHz

  • Frequency Step Size

    25 kHz

  • RF Channel Scanning

    Auto-Scan

  • Max Operating Range

    328.1' (100m) (Line of Sight)

  • Max Transmitters per Band

    269

  • Built-In Recorder

    No

  • Control App Support

    Yes, Available for Android/iOS

  • Bluetooth

    5.1 LE

  • Bluetooth Operating Distance

    120' (36.6m) (Transmitter Sync, App Control)

  • Sample Rate/Resolution

    24-Bit

  • Latency

    1.9 ms

  • Dynamic Range

    134 dB

  • Encryption

    AES 256

Receiver

Jump to...
  • Receiver Type

    Tabletop / Rackmount

  • Mounting Options

    Rackmount (with Included Hardware)

  • Rackmount Size

    1 RU (1/2 Rack)

  • Antenna

    2x 1/4 Wave Rod, BNC (Rear-Mount)

  • Number of Audio Channels

    2

  • Audio I/O

    2x XLR 3-Pin Male Balanced Output
    2x 1/4" TS Female Unbalanced Output

  • Audio Output Level

    +18 dBu (Max)
    +12 dBu (Max)

  • Frequency Response

    20 Hz to 20 kHz +/-3 dB

  • Network I/O

    1x RJ45

  • Word Clock I/O

    None

  • USB/Lightning Connectivity

    None

  • RF Output Power

    10 mW (EIRP)

  • Power Requirements

    AC/DC Power Adapter, PoE

  • AC/DC Power Adapter

    11 to 13 VDC (Included)

  • DC Input Power

    12 VDC

  • AC Input Power

    100 to 240 VAC, 50 / 60 Hz

  • Display & Indicators

    1x OLED (AF Level, Channel, Frequency, Output Level, RF Level, Transmitter Battery Status)

  • Housing

    Metal

  • Operating Temperature

    14 to 131 Degree F (-10 to 55 Degree C)

  • Operating Humidity

    5 to 95%

  • Dimensions

    8.3 x 1.7 x 7.4" (212 x 44 x 189mm)

  • Weight

    without Antenna: 2.2 lbs (1kg)

Transmitter

Jump to...
  • Transmitter Type

    Handheld

  • RF Output Power

    10 mW (ERP)
    10 mW (EIRP)

  • Audio I/O

    None

  • Muting

    Mute Switch

  • Audio Input Level

    2 to 4.35 V

  • Auto-Level Control

    No

  • Frequency Response

    20 Hz to 20 kHz -3 dB

  • Sync Method

    Bluetooth

  • Antenna

    1x Internal (Handheld)

  • Power Requirements

    Battery

  • Battery

    1x Sennheiser Battery Pack (Included)
    2x AA (Not Included)

  • Approx. Battery Life

    12 Hours (Sennheiser Battery Pack)
    8 Hours (Alkaline)

  • Display & Indicators

    1x Backlit LCD (Battery Status, Mute)

  • Housing

    Metal

  • Operating Temperature

    14 to 131 Degree F (-10 to 55 Degree C)

  • Operating Humidity

    5 to 95%

  • Battery Info

    Required, included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    2

  • Dimensions

    2 x 10.6" (50 x 268mm)

  • Weight

    10.7 oz (304g)

Microphone

Jump to...
  • Microphone Type

    Handheld Capsule

  • Color

    Black

  • Sound Field

    Mono

  • Capsule

    Dynamic

  • Polar Pattern

    Cardioid

  • Maximum SPL

    154 dB SPL

  • Sensitivity

    2.1 mV/Pa

  • UPC Code

    615104360747

About Sennheiser EW-DX 835-S

Where professional audio quality and reliable wireless performance are paramount, the EW-DX 835-S SET Two-Channel Digital Wireless System with Two Handheld Mics & MMD 835 Capsules, operating in the Q1-9:470 - 550 MHz frequency range, stands out. This high-quality, durable system is designed by Sennheiser, a brand synonymous with innovative audio equipment.

The system includes the EW-DX EM 2 Rack Receiver, a dual-channel digital wireless receiver compatible with EW-DX SK bodypack, EW-DX SKM handheld, and EW-DX TS tabletop transmitters. Encased in a rugged, all-metal chassis, it is built to endure the demands of professional use. It can be conveniently placed on a tabletop or rackmounted for portable rigs and permanent A/V installations.

The EW-DX EM 2 receiver boasts a wide 80 MHz tuning range, intelligent switching diversity, auto-scan, equidistant tuning grid, and Link Density mode, all working in harmony to deliver superior wireless performance and extensive channel counts, even in challenging RF environments. Its Bluetooth capabilities allow for remote syncing and setting adjustments via the Smart Assist app, while Sennheiser's Control Cockpit and Wireless Systems Manager software provide computer-based control for more extensive networked setups.

The EW-DX SKM-S Handheld Transmitter with MMD 835 Capsule & Mute Switch is a digital handheld wireless transmitter/mic compatible with EW-DX wireless receivers. It is ideal for a wide range of professional performance and presentation applications. The transmitter features a programmable mute switch and an MMD 835 dynamic capsule with a cardioid pickup pattern that focuses audio capture on the talent in front of the mic capsule, minimizing noise and feedback.

With a remarkable 134 dB dynamic range on its input, the EW-DX SKM-S can handle a wide variety of sound sources, including loud vocalists and performers, all without requiring any gain adjustment. The transmitter provides up to 8 hours of operation on two AA batteries or 12 hours with a BA 70 lithium-ion rechargeable battery pack.

The EW-DX 835-S SET is not just a wireless system; it's a comprehensive solution for professional audio and video recording, live performances, broadcasting, and recording studios. It offers the quality, features, and reliability that professionals demand.

Sennheiser EW-DX 835-S Features

  • EW-DX EM 2 Rack Receiver Features
  • 2 Channel half rack (9.5')
  • 80 MHz switching bandwidth
  • PoE IEEE 802.3af Class 3
  • Equidistant Channel Spacing: 269 channels in Link Density Mode
  • Network enabled for control with Sennheiser Control Cockpit/media control system through a number of 3rd party modules
  • Clear and easy focused user interface with OLED display
  • Ethernet connectivity (IPv4 and IPv6)
  • Secure AES 256 encryption
  • External PSU 12V/1A
  • All-metal housing
  • EW-DX SKM-S Handheld Transmitter with MMD 835 Capsule & Mute Switch Features
  • For EW-DX Digital Wireless Receivers
  • MMD 835 Dynamic Cardioid Mic Capsule
  • Interchangeable Mic Capsule Design
  • 134 dB of Dynamic Range, 24-Bit Audio
  • 3200 Frequencies on Equidistant Grid
  • Mute Switch, e-Ink Display
  • Durable Metal Housing
  • Set Up/Operate from Receiver or Phone
  • In-Device Charging
  • 8-Hour AA /12-Hour Rechargeable Battery

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this Sennheiser wireless microphone system, perfect for live performances.
  • Enjoy a wide 328 ft range with this digital wireless system, offering freedom on stage or in presentations.
  • The handheld microphone's dynamic capsule and cardioid pattern ensures focused sound capture, reducing feedback.
  • Get up to 12 hours of battery life using the included rechargeable battery pack for extended use.
  • This wireless microphone system is ideal for public speaking, karaoke, and houses of worship.
  • The rugged metal construction of this wireless microphone ensures durability for reliable, long-term performance.

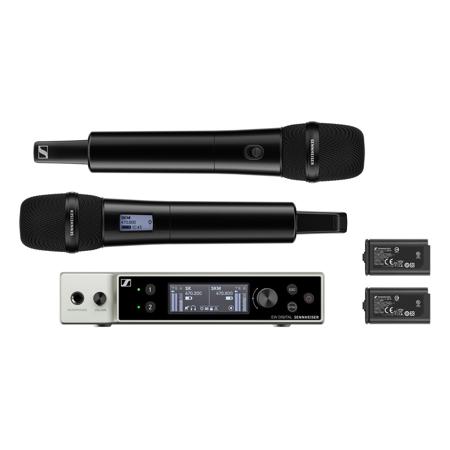

What's in the box:

  • Sennheiser EW-DX EM 2 Rack Receiver
  • 2x EW-DX SKM-S Handheld Transmitters with Mute Switch
  • 2x MMD 835 Microphone Modules
  • 2x MZQ 1 Microphone Clamps
  • 2x Rod Antennas
  • Power Supply with Adapters
  • GA 3 Rackmount Set
  • 4x Rubber Feet
  • 2x BA 70 Rechargeable Battery Pack
  • User Manual
  • Sennheiser 2 Year Limited Warranty
