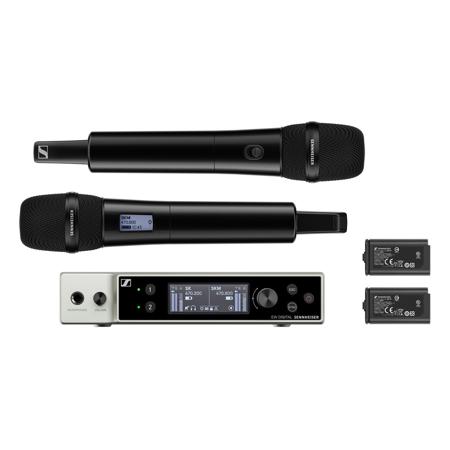

Sennheiser EW-DX 835-S SET Two-Channel Digital Wireless System with Two Handheld Mics & MMD 835 Capsules, R1-9:520 - 607 MHz

SKU: SE509301 MFR: 509301
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this Sennheiser wireless microphone system, perfect for live performances.
  • Enjoy a wide 328 ft range with this digital wireless system, giving you freedom to move on stage or in studio.
  • The handheld microphone features a dynamic, cardioid capsule, ensuring excellent sound quality and rejection.
  • Get up to 12 hours of battery life using the included rechargeable pack for extended use at events or gigs.
  • This wireless microphone system operates on the R1-9 band (520-607 MHz), minimizing interference for clear sound.
  • Use the mute switch on the handheld transmitter for discreet control during presentations or performances.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Sennheiser EW-DX 835-S Specifications

System
  • Wireless Technology

    Digital UHF

  • Number of RF Channel Frequencies

    3480

  • Included Transmitters

    2x Handheld

  • Diversity

    Intelligent Switching Diversity

  • RF Frequency Band

    R1-9: 520 to 607.8 MHz

  • RF Bandwidth

    87 MHz

  • Frequency Step Size

    25 kHz

  • RF Channel Scanning

    Auto-Scan

  • Max Operating Range

    328.1' (100m) (Line of Sight)

  • Max Transmitters per Band

    293

  • Built-In Recorder

    No

  • Control App Support

    Yes, Available for Android/iOS

  • Bluetooth

    5.1 LE

  • Bluetooth Operating Distance

    120' (36.6m) (Transmitter Sync, App Control)

  • Sample Rate/Resolution

    24-Bit

  • Latency

    1.9 ms

  • Dynamic Range

    134 dB

  • Encryption

    AES 256

Receiver

Jump to...
  • Receiver Type

    Tabletop / Rackmount

  • Mounting Options

    Rackmount (with Included Hardware)

  • Rackmount Size

    1 RU (1/2 Rack)

  • Antenna

    2x 1/4 Wave Rod, BNC (Rear-Mount)

  • Number of Audio Channels

    2

  • Audio I/O

    2x XLR 3-Pin Male Balanced Output
    2x 1/4" TS Female Unbalanced Output

  • Audio Output Level

    +18 dBu (Max)
    +12 dBu (Max)

  • Frequency Response

    20 Hz to 20 kHz +/-3 dB

  • Network I/O

    1x RJ45

  • Word Clock I/O

    None

  • USB/Lightning Connectivity

    None

  • RF Output Power

    10 mW (EIRP)

  • Power Requirements

    AC/DC Power Adapter, PoE

  • AC/DC Power Adapter

    11 to 13 VDC (Included)

  • DC Input Power

    12 VDC

  • AC Input Power

    100 to 240 VAC, 50 / 60 Hz

  • Display & Indicators

    1x OLED (AF Level, Channel, Frequency, Output Level, RF Level, Transmitter Battery Status)

  • Housing

    Metal

  • Operating Temperature

    14 to 131 Degree F (-10 to 55 Degree C)

  • Operating Humidity

    5 to 95%

  • Dimensions

    8.3 x 1.7 x 7.4" (212 x 44 x 189mm)

  • Weight

    without Antenna: 2.2 lbs (1kg)

Transmitter

Jump to...
  • Transmitter Type

    Handheld

  • RF Output Power

    10 mW (ERP)
    10 mW (EIRP)

  • Audio I/O

    None

  • Muting

    Mute Switch

  • Audio Input Level

    2 to 4.35 V

  • Auto-Level Control

    No

  • Frequency Response

    20 Hz to 20 kHz -3 dB

  • Sync Method

    Bluetooth

  • Antenna

    1x Internal (Handheld)

  • Power Requirements

    Battery

  • Battery

    1x Sennheiser Battery Pack (Included)
    2x AA (Not Included)

  • Approx. Battery Life

    12 Hours (Sennheiser Battery Pack)
    8 Hours (Alkaline)

  • Display & Indicators

    1x Backlit LCD (Battery Status, Mute)

  • Housing

    Metal

  • Operating Temperature

    14 to 131 Degree F (-10 to 55 Degree C)

  • Operating Humidity

    5 to 95%

  • Battery Info

    Required, included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    2

  • Dimensions

    2 x 10.6" (50 x 268mm)

  • Weight

    10.7 oz (304g)

Microphone

Jump to...
  • Microphone Type

    Handheld Capsule

  • Color

    Black

  • Sound Field

    Mono

  • Capsule

    Dynamic

  • Polar Pattern

    Cardioid

  • Maximum SPL

    154 dB SPL

  • Sensitivity

    2.1 mV/Pa

  • UPC Code

    615104360761

About Sennheiser EW-DX 835-S

Find unparalleled audio clarity and versatility with the EW-DX 835-S SET, a two-channel digital wireless system from Sennheiser, a brand synonymous with high-quality and professional audio equipment. This robust package includes two handheld microphones with MMD 835 capsules, operating within the R1-9:520 - 607 MHz frequency range, designed to deliver reliable and durable performance for a variety of professional applications, including live performances, studio recordings, and broadcasting events.

The core of this system is the EW-DX EM 2 Rack Receiver, a dual-channel digital wireless receiver that boasts a half-rack design for seamless integration into both portable rigs and permanent A/V installations. Its all-metal chassis ensures durability, while the wide 87 MHz tuning range, intelligent switching diversity, and equidistant tuning grid ensure a stable and interference-free signal, accommodating up to 146 mic channels simultaneously - or up to 293 channels with Link Density mode activated.

The receiver's advanced features include Bluetooth capabilities for remote synchronization and settings adjustments via the Smart Assist app, as well as compatibility with Sennheiser's Control Cockpit and Wireless Systems Manager software for comprehensive networked control. The AES-256 encryption provides the security needed to keep your transmissions private.

The EW-DX EM 2 receiver is designed for ease of use, with intuitive front-panel controls, dual high-contrast OLED screens, and an auto-scan function that simplifies the setup process. The receiver's balanced XLR and unbalanced 1/4" outputs offer direct connectivity to any PA system or mixing board, ensuring seamless integration into your existing setup.

The EW-DX SKM-S Handheld Transmitters included in this set are equipped with MMD 835 dynamic capsules, featuring a cardioid pickup pattern that focuses on the source while minimizing background noise and feedback. The transmitters are lightweight, with a rugged, all-metal housing, and a programmable mute switch for performance flexibility. The impressive 134 dB dynamic range allows for the capture of a wide variety of sound sources without gain adjustment.

For extended use, the transmitters offer up to 8 hours of operation on AA batteries or 12 hours with the included BA 70 lithium-ion rechargeable battery pack, with external charging ports for in-transmitter charging options. The e-Ink display provides clear visibility of settings and parameters, even when powered off, and Bluetooth pairing with the receiver is quick and efficient.

The EW-DX 835-S SET is also compatible with a wide range of interchangeable microphone capsules, allowing for customization to suit different vocal characteristics and performance environments. This flexibility, combined with the system's expandability, makes the EW-DX 835-S SET an ideal choice for professionals seeking a high-quality, reliable, and innovative wireless audio solution.

Sennheiser EW-DX 835-S Features

  • EW-DX EM 2 Rack Receiver Features
  • 2 Channel half rack (9.5')
  • 87 MHz switching bandwidth
  • PoE IEEE 802.3af Class 3
  • Equidistant Channel Spacing: 293 channels in Link Density Mode
  • Network enabled for control with Sennheiser Control Cockpit/media control system through a number of 3rd party modules
  • Clear and easy focused user interface with OLED display
  • Ethernet connectivity (IPv4 and IPv6)
  • Secure AES 256 encryption
  • External PSU 12V/1A
  • All-metal housing
  • EW-DX SKM-S Handheld Transmitter with MMD 835 Capsule & Mute Switch Features
  • For EW-DX Digital Wireless Receivers
  • MMD 835 Dynamic Cardioid Mic Capsule
  • Interchangeable Mic Capsule Design
  • 134 dB of Dynamic Range, 24-Bit Audio
  • 3480 Frequencies on Equidistant Grid
  • Mute Switch, e-Ink Display
  • Durable Metal Housing
  • Set Up/Operate from Receiver or Phone
  • In-Device Charging
  • 8-Hour AA /12-Hour Rechargeable Battery

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this Sennheiser wireless microphone system, perfect for live performances.
  • Enjoy a wide 328 ft range with this digital wireless system, giving you freedom to move on stage or in studio.
  • The handheld microphone features a dynamic, cardioid capsule, ensuring excellent sound quality and rejection.
  • Get up to 12 hours of battery life using the included rechargeable pack for extended use at events or gigs.
  • This wireless microphone system operates on the R1-9 band (520-607 MHz), minimizing interference for clear sound.
  • Use the mute switch on the handheld transmitter for discreet control during presentations or performances.

What's in the box:

  • Sennheiser EW-DX EM 2 Rack Receiver
  • 2x EW-DX SKM-S Handheld Transmitters with Mute Switch
  • 2x MMD 835 Microphone Modules
  • 2x MZQ 1 Microphone Clamps
  • 2x Rod Antennas
  • Power Supply with Adapters
  • GA 3 Rackmount Set
  • 4x Rubber Feet
  • 2x BA 70 Rechargeable Battery Pack
  • User Manual
  • Sennheiser 2 Year Limited Warranty
