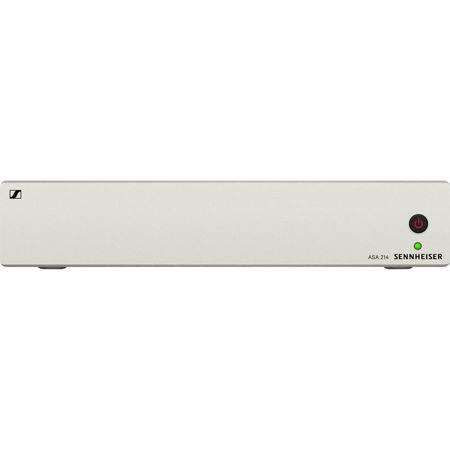

Sennheiser ASA 214-UHF Active Antenna Splitter, DC Power Distribution
See all Sennheiser items

Sennheiser ASA 214-UHF Active Antenna Splitter with DC Power Distribution & NT 1-1 Power Supply

SKU: SEASA214UHF
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Sennheiser ASA 214-UHF Specifications

  • ASA 214 antenna splitter

    2 x 1:4 or 1 x 1:8, active

  • Connection cable

    8 pieces, 50 cm, BNC

  • Frequency range

    ASA 214-UHF: 470 - 870 MHz at -3 dB
    1785 - 1805 MHz at -3 dB

  • Amplification

    In A - Out A: 0 +/- 1 dB
    In A - Out A1 ... A4: 0 +/- 1 dB
    In B - Out B1 ... B4: 0 +/- 1 dB

  • IIP3

    20 dBm min.
    23 dBm, typical

  • Impedance

    50 Ohm

  • Reflection loss

    10 dB (all RF outputs)

  • Operating voltage

    13.8 V DC (with power supply unit NT 1-1)

  • Power consumption

    ASA 1: 245 mA
    ASA 1-1G8: 350 mA

  • Total power consumption

    max. 2.0 A with 4 receivers and 2 x 2 antenna amplifiers per antenna input

  • Antenna amplifier power supply at

    12 V, 130 mA (ANT RF IN A and ANT RF IN B)

  • Receiver power supply at A1 to A4

    12 V (protected against reverse supply), 350 mA

  • Relative air humidity

    5 to 95%

  • Temperature range

    Operation: -20 Degree C to +70 Degree C (-4 Degree F to 158 Degree F)
    Storage: -10 Degree C to +55 Degree C (14 Degree F to 131 Degree F)

  • Dimensions

    Approx. 8.3 x 6.6 x 1.6" (212 x 168 x 43mm)

  • Weight

    Approx. 2.40 lb (1090g)

  • UPC Code

    615104314504

About Sennheiser ASA 214-UHF

The ASA 214-UHF splitter can be used to receive multiple microphone signals through a pair of antennas, split and amplify those signals, and send each signal to their respective receiver via coaxial cable.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • ASA 214-UHF Active Antenna Splitter with DC Power Distribution & NT 1-1 Power Supply
  • NT 1-1 Power Supply
  • 8x BNC Cables
  • Sennheiser 2 Year Limited Warranty
