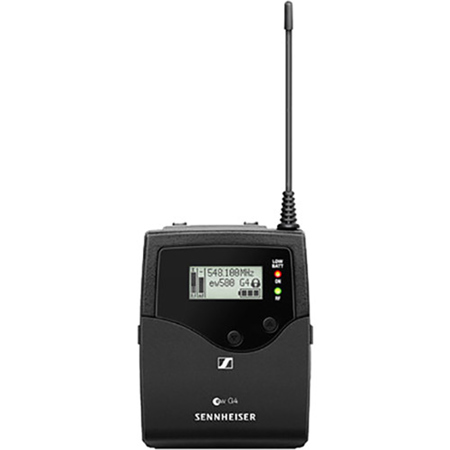

Sennheiser EK 500 G4 Wireless Pro Camera Receiver, AW+: 470 - 558 MHz

SKU: SEEK500G4AWP MFR: EK 500 G4-AW+
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this Sennheiser wireless receiver, ensuring top sound quality.
  • Achieve reliable connectivity using the EK 500 G4 receiver for professional camera setups.
  • Enjoy extended battery life with this wireless pro camera receiver, up to 8 hours of use.
  • Experience low latency in audio transmission with Sennheiser's advanced technology.
  • Easily monitor audio levels using the intuitive interface of this wireless receiver.
  • Durable build ensures this Sennheiser receiver withstands rigorous field use, excellent value.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?GREGORY K : Good reviews

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Sennheiser EK 500 G4 Specifications

RF Characteristics

RF Characteristics

Jump to...
  • Modulation

    Wideband FM

  • Frequency range

    470 - 558 MHz

  • Receiving frequencies

    Max. 2880 receiving frequencies, adjustable in 25 kHz steps
    20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
    6 frequency banks with up to 32 programmable channels

  • Switching bandwidth

    Up to 72 MHz

  • Nominal/peak deviation

    +/-24 kHz / +/-48 kHz

  • Receiver principle

    Adaptive diversity

  • Sensitivity (with HDX, peak deviation)

    < 1.6 microV for 52 dBA

  • Adjacent channel selection

    Typically >= 65 dB

  • Intermodulation attenuation

    Typically >= 65 dB

  • Blocking

    >= 70 dB

  • Squelch

    Low: 5 dBmicro
    Middle: 15 dBmicroV
    High: 25 dBmicroV

  • Pilot tone squelch

    Can be switched off

AF Characteristics

Jump to...
  • Compander system

    Sennheiser HDX

  • Signal-to-noise ratio

    Line: >= 110 dBA Phones: approx. 90 dBA (1 mV, peak deviation)

  • Total harmonic distortion (THD)

    <= 0.9 %

  • AF output voltage

    3.5 mm jack socket: +17 dBu (mono, unbalanced) (at peak deviation, 1 kHz AF)

  • Adjustment range of audio output level

    42 dB, adjustable in steps of 6 dB

Overall Device

Jump to...
  • Temperature range

    -10 Degree C to +55 Degree C

  • Power supplY

    2 AA batteries, 1.5 V or BA 2015 accupack

  • Nominal voltage

    3 V battery / 2.4 V rechargeable battery

  • Current consumption

    At nominal voltage: typ. 140 mA with receiver switched off: <= 25 microA

  • Operating time

    Typically 8 h

  • Dimensions

    Approx. 3.23 x 2.52 x 0.95" (82 x 64 x 24mm)

  • Weight

    Approx. 0.29 lb (130g) (Incl. batteries)

  • UPC Code

    615104364332

About Sennheiser EK 500 G4

While compact and portable, the EK 500 G4 Wireless Pro Camera Receiver, AW+: 470 - 558 MHz, is a powerful and advanced piece of audio equipment designed for professional use. This high-quality, durable receiver is part of Sennheiser's renowned evolution wireless G4 500P Series systems, known for their superior performance in film productions and broadcasting.

Easily mountable on any camera, this receiver boasts an increased bandwidth and transmission power, ensuring optimal audio transmission. It operates within ten UHF frequency ranges, with a switching bandwidth of up to 88 MHz, making it highly versatile and compatible with a wide range of wireless systems.

The EK 500 G4 receiver is equipped with adaptive diversity technology, designed to enhance signal quality and reduce dropouts. It offers 2,880 transmission frequencies per range, tunable in 25 kHz steps, and features 20 fixed frequency banks with up to 32 compatible frequency presets. Additionally, it provides six user banks with up to 32 user programmable frequencies.

This receiver is user-friendly with a backlit LCD display that shows the current frequency, frequency bank and channel number, RF level metering, AF level metering, lock status, battery status, muting function or line output level, and pilot tone evaluation. An auto-lock feature is also included to prevent accidental alteration of settings.

The receiver incorporates the Sennheiser HDX compander system and a defeatable pilot tone squelch for superior audio quality. It also features a 3.5 mm audio output with a maximum output of +17 dBu (mono, unbalanced) and a 3.5 mm phone output.

Power is supplied to the receiver by two 1.5V AA size batteries or by one Sennheiser BA 2015 rechargeable accupack. With a nominal voltage of 2.4 V and a typical current consumption of 140 mA at nominal voltage, the EK 500 G4 Wireless Pro Camera Receiver is a reliable and efficient choice for professional audio and video applications.

Sennheiser EK 500 G4 Features

  • Professional sound and excellent construction quality
  • Easy to use and fast setup time
  • Easy and flexible wireless synchronisation between transmitter and receiver via infrared
  • Up to 88 MHz bandwidth, up to 32 channels
  • Range: up to 100m (330')
  • Increased RF output power (10/30/50 mW)
  • Up to 8 hours of operation time

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Capture pristine audio with this Sennheiser wireless receiver, ensuring top sound quality.
  • Achieve reliable connectivity using the EK 500 G4 receiver for professional camera setups.
  • Enjoy extended battery life with this wireless pro camera receiver, up to 8 hours of use.
  • Experience low latency in audio transmission with Sennheiser's advanced technology.
  • Easily monitor audio levels using the intuitive interface of this wireless receiver.
  • Durable build ensures this Sennheiser receiver withstands rigorous field use, excellent value.

What's in the box:

  • Pro Camera Receiver
  • 2x AA Batteries
  • CA 2 Camera Adapter
  • CL 13.5mm Jack Cable
  • CL 500 XLR to 3.5mm Jack Adapter Cable
  • Quick Guide
  • Safety Guide
  • Manufacturer Declaration Sheet
  • Sennheiser 2 Year Limited Warranty
