Sennheiser ew 135 G3 Wireless Handheld Microphone System with EM 100 G3 Receiver (Frequency Band A1: 470-516MHz - Bundle With SKB Injection Molded Waterproof Case, Cleaning KIt

SKU: SEEW135G3A1A

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Sennheiser EW 135 G3 Specifications

  • Receiver: Modulation

    Wideband FM

  • Receiver: Frequency ranges

    A1: 470-516 MHz

  • Receiver: Frequency response

    25 - 18000 Hz (microphone)

  • Receiver: Receiving frequencies

    1,680 frequencies, tunable in steps of 25 kHz
    20 frequency banks, each with up to 12 factory-preset channels, intermodulation-free
    1 frequency bank with up to 12 user programmable channels

  • Receiver: Switching bandwidth

    42 MHz

  • Receiver: Nominal/peak deviation

    +/-24 kHz / +/-48 kHz

  • Receiver: Receiver principle

    True diversity

  • Receiver: Sensitivity

    < 2 muV for 52 dBA rms S/N (with HDX, peak deviation)

  • Receiver: Adjacent channel rejection

    Typ. >/- 65dB

  • Receiver: Intermodulation attenuation

    Typ. >/- 65dB

  • Receiver: Blocking

    >/- 70 dB

  • Receiver: Squelch

    Off, Low: 5 dBmV, Middle: 15 dBmV
    High: 25 dBmV

  • Receiver: Pilot tone squelch

    Can be switched off

  • Receiver: Antenna inputs

    2 BNC sockets, 50Ohms

  • Receiver: Compander system

    HDX

  • Receiver: Audio-XLR connector

    XLR / 6,3 mm

  • Receiver: Presets

    12

  • Receiver: EQ presets: Preset 1: "Flat"

    -3 dB at 180 Hz

  • Receiver: EQ Preset 2: Low Cut

    -3 dB at 180 Hz

  • Receiver: EQ Preset 3:Low Cut/High boost

    +6 dB at 10 kHz

  • Receiver: EQ Preset 4: High Boost

    +6 dB at 10 kHz

  • Receiver: S/N ratio

    >/-110 dBA (1 mV, peak deviation)

  • Receiver: THD

  • Receiver: AF output voltage

    At peak deviation, 1 kHz AF: +12 dBu 1/4" (6.3 mm) jack socket (unbalanced)

  • Receiver: XLR socket (balanced)

    +18 dBu

  • Receiver: Temperature range

    -10 to 55 deg. C / 14 to 131 deg. F

  • Receiver: Power supply

    12V

  • Receiver: Nominal voltage

    2.4 V DC

  • Receiver: In compliance with

    ETS 300422, ETS 300445, CE, FCC

  • Receiver: Power consumption

    300 mA

  • Transmitter: Modulation

    Wideband FM

  • Transmitter: Frequency ranges

    A1: 470-516 MHz

  • Transmitter: Frequency response

    80 - 18000 Hz (microphone)

  • Transmitter: Transmission frequencies

    1,680 frequencies, tunable in steps of 25 kHz
    20 frequency banks, each with up to 12 factory-preset channels
    1 frequency bank with up to 12 user programmable channels

  • Transmitter: Switching bandwidth

    42 MHz

  • Transmitter: Nominal/peak deviation

    +/-24 kHz / +/-48 kHz

  • Transmitter: Frequency stability

    +/-15 ppm

  • Transmitter: RF output power

    At 50Ohms, typ. 30 mW

  • Transmitter: Pilot tone squelch

    Can be switched off

  • Transmitter: Compander system

    HDX

  • Transmitter: Presets

    12

  • Transmitter: Microphone

    Dynamic

  • Transmitter: Sound pressure level (SPL)

    154 dB(SPL) max.

  • Transmitter: Pick-up pattern

    Cardioid

  • Transmitter: AF sensitivity

    2.1 mV/Pa

  • Transmitter: AF frequency response

    80 - 18,000 Hz

  • Transmitter: S/N ratio

    >/- 110 dBA (1mV, peak deviation)

  • Transmitter: THD

    < 0.9%

  • Transmitter: Input sensitivity

    48dB, adjustable in 6-dB steps

  • Transmitter: Temperature range

    -10 to 55 deg. C / 14 to 131 deg. F

  • Transmitter: In compliance with

    ETS 300422, ETS 300445, CE, FCC

  • Transmitter: Power supply

    2x AA size batteries, 1.5 V or BA 2015 accupack

  • Transmitter: Nominal voltage

    2.4V

  • Transmitter: Current consumption

    At nominal voltage: typ. 180 mA (30 mW)
    With switched-off radio microphone:

  • Transmitter: Operating time

    Typ. 8 hrs

  • Dimensions

    Receiver: 190 x 212 x 43mm / 7.48 x 8.35 x 1.69" Approx.
    Transmitter: 50 (Dia.) x 265mm / 1.97 (Dia.) x 10.43" Approx.

  • Weight

    Receiver: 980g / 34.57oz Approx.
    Transmitter: 450g / 15.87oz Approx. (including batteries)

24 Accessories for Sennheiser ew 135 G3 Wireless Handheld Microphone System with EM 100 G3 Receiver (Frequency Band A1: 470-516MHz - Bundle With SKB Injection Molded Waterproof Case, Cleaning KIt

  • All Accessories (24)
  • Batteries & Power Supply (7)
  • Cables & Adapters (3)
  • Windscreens (3)
  • Mic Stands (3)
  • Headphones (4)
  • Bags & Cases (2)
  • Replacement Parts (2)

About Sennheiser EW 135 G3

Reliable, robust vocal set fit for every style of music: SKM 100-835 G3 cardioid vocal microphone, EM 100 G3 true diversity receiver with backlit graphic display, MZQ 1 microphone clip. You can depend on a great performance with the ew 135 G3 vocal system. Handheld wireless system featuring the SKM 100 G3 equipped with the famed e 835 cardioid dynamic capsule. Includes mic clip and EM 100 rack-mountable True Diversity receiver with intuitive scan and sync functions that ensure trouble-free operation.

• Sturdy metal housing (transmitter and receiver
• 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
• Enhanced frequency bank system with up to 12 compatible frequencies
• High-quality true diversity reception
• Pilot tone squelch for eliminating RF interference when transmitter is turned off
• Automatic frequency scan feature searches for available frequencies
• Enhanced AF frequency range
• Increased range for audio sensitivity
• Wireless synchronization of transmitters via infrared interface
• User-friendly menu operation with more control options
• Illuminated graphic display (transmitter and receiver)
• Auto-Lock function avoids accidental changing of settings
• HDX compander for crystal-clear sound
• Transmitter feature battery indication in 4 steps, also shown on receiver display
• Handheld transmitter with easy-exchangeable microphone modules from evolution series
• Integrated Equalizer and Soundcheck mode
• Contacts for recharging BA 2015 accupack directly in the transmitter
• Wide range of accessories adapts the system to any requirement

EM 100 G3 Rack-Mount Receiver
Rugged rack receiver utilizing true diversity for optimum reception. 42 MHz bandwidth with 1680 tunable UHF frequencies. 20 frequency banks with 12 preset frequencies each, plus a user-programmable bank. With its improved design and new features, this rugged G3 rack receiver is ready for the road with its proven transmission reliability and inspiring flexibility. The sound check mode allows you to check the audio and RF signal at any time during setup. 20 frequency banks with 12 preset frequencies each, plus a user-programmable bank mean you can easily run multiple channels of G3 wireless simultaneously.

SKM 100-835 G3 Handheld Transmitter (Dynamic, Cardioid)
Robust cardioid handheld microphone/transmitter. Fit for every vocal style. Lively, powerful sound. User-friendly menu operation with backlit graphic display. Sturdy metal housing. Now with infrared sync function, the SKM100-835 G3 can tune to a G3 receiver with a simple push of a button. Compatible with any evolution wireless receiver and every vocal style, this hand-held transmitter/microphone combination provides wireless freedom to both performers and presenters alike. With rugged design and powerful sound, it is ideally suited for the stage as it is in the auditorium. Newly revised features such as the enhanced graphic display, easily swappable capsule and included charging contacts make the SKM100-835 G3 a solid choice.

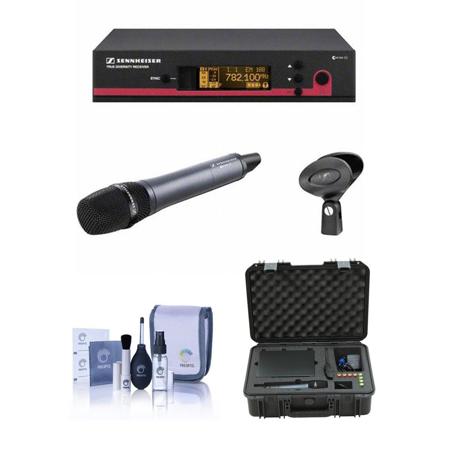

What's in the box:

  • Sennheiser EM 100 G3 Rack-Mount Receiver
  • SKM 100-835 G3 Handheld Transmitter (Dynamic
  • Cardioid)
  • MZQ 1 Microphone Clip
  • NT 2 Power Supply Unit
  • 2x Antenna
  • 2x Stacking Elements
  • 2x AA Battery
  • Operating Instructions
  • Sennheiser 2 Year Warranty
  • <b> Bundle includes: </b>
  • SKB Injection Molded Waterproof Case
  • Cleaning Kit
