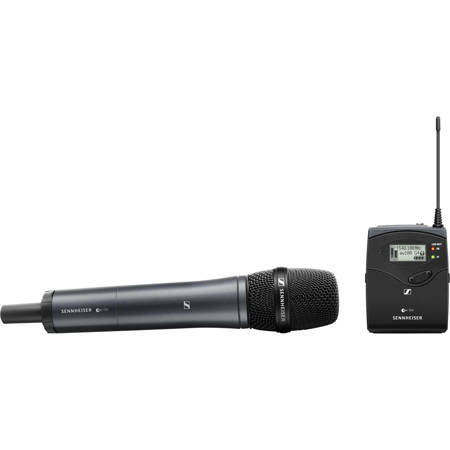

Sennheiser ew 135 P G4 Camera Handheld Set with Handheld Transmitter & MMD 835-1 Microphone Head, A: 516 - 558 MHz

A broadcast quality sound solution. Providing the highest flexibility for your video sound and field recording applications. A robust wireless microphone system that offers excellent sound quality, simple mounting and ease of use.

The easiest wireless solution for moderators or reporters. The rugged e 835 microphone resists any bad weather or field condition, while the versatile receiver is easily mounted to any camera.

Architect's Specification
A wireless RF transmission system shall consist of a camera receiver and a handheld transmitter with a cardioid dynamic microphone head.

The receiver operates within eleven UHF frequency ranges, with a switching bandwidth of up to 42 MHz: 470 - 516 MHz, 516 - 558 MHz, 520 - 558 MHz, 566 - 608 MHz, 606 - 648 MHz, 626 - 668 MHz, 734 - 776 MHz, 780 - 822 MHz, 823 - 865 MHz, 806 - 810 MHz, 925 - 937.5 MHz; transmission frequencies are 1,680 per range and are tunable in 25 kHz steps. The receiver features 20 fixed frequency banks with up to 12 compatible frequency presets and 1 user bank with up to 12 user programmable frequencies.

The receiver is menu-driven with a backlit LCD display showing the current frequency, frequency bank and channel number, metering of RF level, metering of AF level, lock status, battery status, muting function or line output level, and pilot tone evaluation. An auto-lock feature is provided to prevent settings from being accidentally altered.

The receiver parameters are programmable in the receiver menu.

The receiver features a 3.5 mm audio output with a maximum output of +11 dBu (mono, unbalanced).

Nominal/peak deviation is +/-24 kHz/ +/-48 kHz. Squelch threshold is adjustable to three levels: Low (5 dB micro V), Middle (15 dB micro V) and High (25 dB micro V). The receiver incorporates the Sennheiser HDX compander system and a defeatable pilot tone squelch. Sensitivity is < 1.6 micro V (typical) for 52 dBA eff S/N with HDX engaged at peak deviation. Adjacent channel rejection is >= 65 dB (typical). Intermodulation attenuation is >= 65 dB (typical); blocking is >= 70 dB. Signal-to-noise ratio at 1 mV and peak deviation is >= 110 dBA. Total harmonic distortion (THD) is <= 0.9 %. The audio output level is adjustable within a 42 dB range in steps of 6 dB.

Power is supplied to the receiver by two 1.5V AA size batteries or by one Sennheiser BA 2015 rechargeable accupack. Nominal voltage is 2.4 V, current consumption is typical 180 mA at nominal voltage; <= 25 micro A when receiver is switched off. Operating time is typical 8 hours. The receiver has a rugged metal housing; dimensions are approximately 82 x 64 x 24 mm (3.23" x 2.52" x 0.94"). Weight including the batteries is approximately 160 grams (0.35 lbs). Operating temperature ranges from -10 Degree C to +55 Degree C (+14 Degree F to +131 Degree F).

The receiver is the Sennheiser EK 100 G4.

The handheld transmitter operates within twelve UHF frequency ranges, with a switching bandwidth of up to 42 MHz: 470 - 516 MHz, 516 - 558 MHz, 520 - 558 MHz, 566 - 608 MHz, 606 - 648 MHz, 626 - 668 MHz, 734 - 776 MHz, 780 - 822 MHz, 823 - 865 MHz, 806 - 810 MHz, 925 - 937.5 MHz, 1785 - 1800 MHz; transmission frequencies are 1,680 per range and are tunable in 25 kHz steps. The handheld transmitter features 20 fixed frequency banks with up to 12 compatible frequency presets and 1 user bank with up to 12 user programmable frequencies.

The handheld transmitter is menu-driven with a backlit LCD display showing the current frequency, frequency bank and channel number, metering of AF level, transmission status, lock status, pilot tone transmission, muting function, and battery status. An auto-lock feature is provided to prevent settings from being accidentally altered.

The handheld transmitter parameters is either configurable in the associated receivers menu and synchronized with the handheld transmitter via an integrated infrared interface or is programmable in the handheld transmitter menu. Receiver parameters such as receiving frequency, receiver name and pilot tone setting are synchronizable with the handheld transmitter via an integrated infrared interface.

Nominal/peak deviation is +/-24 kHz/ +/-48 kHz. Frequency stability is <= +/-15 ppm. RF output power at 50 Ohm is 30 mW (typical).

The handheld transmitter incorporates the Sennheiser HDX compander system and a defeatable pilot tone squelch. Audio frequency response ranges from 80 - 18,000 Hz. Signal-to-noise ratio at 1 mV and peak deviation is >= 110 dBA. Total harmonic distortion (THD) is <= 0.9 %. Input sensitivity is adjustable within a 48 dB range in steps of 6 dB.

Power is supplied to the handheld transmitter by two 1.5V AA size batteries or by one Sennheiser BA 2015 rechargeable accupack. Nominal voltage is 2.4 V, current consumption is typical 180 mA at nominal voltage; <= 25 micro A when handheld transmitter is switched off.

Operating time is typical 8 hours. The handheld transmitter has a rugged metal housing; dimensions are approximately 50 mm (1.97") in diameter and 265 mm (10.43") in length. Weight including the batteries is approximately 450 grams (0.99 lbs). Operating temperature ranges from -10 Degree C to +55 Degree C (+14 Degree F to +131 Degree F).

A range of microphone heads are available for the handheld transmitter.

The handheld transmitter is the Sennheiser SKM 100
