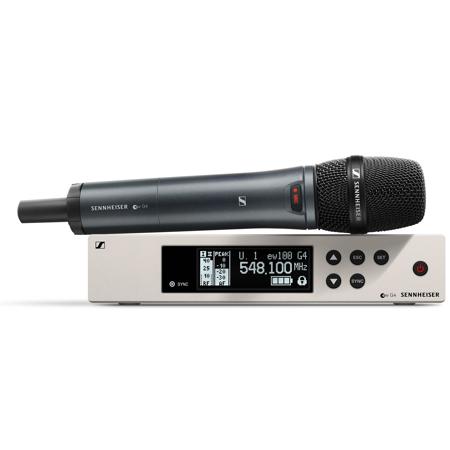

Sennheiser ew 100 G4-835-S Wireless Vocal Set with Handheld Transmitter, MMD 835-1 Microphone Head, G: 566 - 608 MHz

SKU: SEEW1G4835SG MFR: EW 100 G4-835-S-G
Earn VIP Reward Points

Key Features

  • Experience clear sound with this Sennheiser wireless microphone system, perfect for live vocals.
  • Enjoy a wide 566-608 MHz range, ensuring reliable wireless performance for any stage or venue.
  • The handheld wireless microphone delivers exceptional audio fidelity with its dynamic transducer.
  • Benefit from the robust build and durable design, ideal for frequent use at gigs and events.
  • Achieve pristine vocal clarity with the MMD 835-1 microphone head's cardioid pick-up pattern.
  • Get up to 8 hours of performance with reliable battery life, avoiding interruptions during shows.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?ANDY P : It's a great product at a great price. My Adorama 360 membership gives me free 2 day shipping

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Sennheiser ew 100 G4-835-S Specifications

Receiver: RF Characteristics

Receiver: RF Characteristics

Jump to...
  • Modulation

    Wideband FM

  • Frequency range

    566 - 608 MHz

  • Receiving frequencies

    Max. 1680 receiving frequencies, adjustable in 25 kHz steps
    20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
    1 frequency bank with up to 12 programmable channels

  • Switching bandwidth

    up to 42 MHz

  • Nominal/peak deviation

    +/-24 kHz / +/-48 kHz

  • Receiver principle

    True diversity

  • Sensitivity (with HDX, peak deviation)

    < 2.5 micro V for 52 dBA eff S/N

  • Adjacent channel selection

    Typically >= 65 dB

  • Intermodulation attenuation

    Typically >= 65 dB

  • Blocking

    >= 70 dB

  • Squelch

    Low: 5 dB microV
    Middle: 15 dBmicroV
    high: 25 dBmicro V

  • Pilot tone squelch

    Can be switched off

  • Antenna inputs

    2 BNC sockets

Receiver: AF Characteristics

Jump to...
  • Compander system

    Sennheiser HDX

  • EQ presets

    (switchable, act on line and monitor outputs)
    Preset 1: Flat
    Preset 2: Low Cut (-3 dB at 180 Hz)
    Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
    Preset 4: High Boost (+6 dB at 10 kHz)

  • Signal-to-noise ratio

    (1 mV, peak deviation) >= 110 dBA

  • Total harmonic distortion (THD)

    <= 0.9 %

  • AF output voltage

    (at peak deviation, 1 kHz AF) 6.3 mm jack socket
    (unbalanced): +12 dBu XLR socket
    (balanced): +18 dBu

  • Setting range "AF Out"

    48 dB (3 dB steps)

Receiver: Overall Device

Jump to...
  • Temperature range

    -10 Degree C to +55 Degree C

  • Power supply

    12 V DC

  • Current consumption

    300 mA

  • Dimensions

    Approx. 7.48" x 8.35" x 1.69" (190 x 212 x 43mm)

  • Weight

    Approx. 2.16 lb (980g)

Transmitter: RF Characteristics

Jump to...
  • Modulation

    Wideband FM

  • Frequency range

    566 - 608 MHz

  • Transmission frequencies

    Max. 1680 receiving frequencies, adjustable in 25 kHz steps
    20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
    1 frequency bank with up to 12 programmable channels

  • Switching bandwidth

    up to 42 MHz

  • Nominal/peak deviation

    +/-24 kHz / +/-48 kHz

  • Frequency stability

    <= +/-15 ppm

  • RF output power at 50 Ohm

    Max. 30 mW

  • Pilot tone squelch

    Can be switched off

Transmitter: AF Characteristics

Jump to...
  • Compander system

    Sennheiser HDX

  • AF frequency response

    80 - 18,000 Hz

  • Signal-to-noise ratio

    (1 mV, peak deviation) >= 110 dBA

  • Total harmonic distortion (THD)

    <= 0.9 %

  • Max. input voltage

    3 V

  • Input impedance

    40 kOhm

  • Input capacitance

    Switchable

  • Setting range for input sensitivity

    48 dB, adjustable in 6 dB steps

Transmitter: Overall Device

Jump to...
  • Temperature range

    -10 Degree C to +55 Degree C

  • Power supply

    2 AA Batteries, 1.5 V or BA 2015 accupack

  • Nominal voltage

    3 V Battery /2.4 V rechargeable battery

  • Current consumption

    At nominal voltage: typ. 180 mA
    With transmitter switched off: <= 25 micro A

  • Operating time Typically

    8 h

  • Dimensions

    Approx. diameter 1.96 x 10.4" (50 x 265mm)

  • Weight

    Approx. 0.99 lb (450g) (incl. batteries)

MMD 835-1

Jump to...
  • Transducer principle

    Dynamic

  • Sensitivity

    2.1 mV/Pa

  • Sound pressure level

    154 dB SPL

  • Pick-up pattern

    Cardioid

  • UPC Code

    615104367821

About Sennheiser ew 100 G4-835-S

PRO REVIEW by Keith Alexander, Audio Production Specialist

"A top-quality wireless microphone system that is built for all that the road can inflict on it. It has a range of up to 300 meters, giving you the freedom to roam with the ever-important lightweight transmitter microphone."

Take your live performances to the next level with the Sennheiser ew 100 G4-835-S Wireless Vocal Set, a professional-grade wireless microphone system designed for singers, speakers, and instrumentalists seeking both quality and versatility. This robust system features a broad 42 MHz tuning bandwidth within a stable UHF range, ensuring clear and reliable audio transmission even in the most demanding environments.

The set includes the renowned Sennheiser MMD 835-1 microphone head, known for its exceptional sound quality and durability, paired with a lightweight aluminum handheld transmitter. The transmitter is thoughtfully designed with an integrated mute switch, allowing for seamless audio control during live events.

The architect's specification of this system highlights its comprehensive capabilities, including twelve UHF frequency ranges and a switching bandwidth of up to 42 MHz, ensuring compatibility with a wide array of venues and applications. With 1,680 tunable frequencies per range, fine-tuned in 25 kHz steps, this system offers unparalleled flexibility.

The rack-mount receiver boasts a user-friendly menu-driven interface with a backlit LCD display, providing essential information such as frequency, RF and AF levels, lock status, and battery status at a glance. The auto-lock feature prevents accidental setting changes, while the integrated guitar tuner and sound check mode add extra convenience for performers.

Synchronization between the receiver and transmitter is effortless, thanks to the integrated infrared interface. The receiver's balanced XLR-3M audio output and unbalanced 1/4" audio output ensure compatibility with a variety of sound systems, while the DATA ports facilitate the setup of multichannel configurations.

The Sennheiser HDX compander system and defeatable pilot tone squelch contribute to the system's pristine sound quality, with four selectable equalizer presets to tailor the audio to your preferences. The receiver and transmitter both maintain a signal-to-noise ratio of >= 110 dBA and a low total harmonic distortion (THD), reflecting the high-quality standards Sennheiser is known for.

Powered by either AA batteries or the Sennheiser BA 2015 rechargeable accupack, the SKM 100-S G4 handheld transmitter ensures extended performance times. The system's durable metal housing and wide operating temperature range attest to its reliability and suitability for both indoor and outdoor use.

Choose the Sennheiser ew 100 G4-835-S Wireless Vocal Set for its durable construction, high-quality sound, and the professional flexibility that Sennheiser's innovative technology provides. Whether you're delivering a keynote speech or rocking out on stage, this wireless system promises to deliver a performance as reliable and dynamic as your own.

Sennheiser ew 100 G4-835-S Features

  • Engineered for professional live sound: Rugged all-in-one wireless system for singers and presenters
  • State-of-the-art live sound featuring Sennheiser s renowned e 835, e 845, e 865, e 935, e 945 capsules on a lightweight aluminium transmitter with integrated mute switch
  • True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Fast frequency allocation for up to 12 receivers via new linking functionality
  • Up to 20 compatible channels
  • Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
  • Transmission Range: up to 100m (300')
  • High RF output power (up to 30 mW) depending on country regulations

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Experience clear sound with this Sennheiser wireless microphone system, perfect for live vocals.
  • Enjoy a wide 566-608 MHz range, ensuring reliable wireless performance for any stage or venue.
  • The handheld wireless microphone delivers exceptional audio fidelity with its dynamic transducer.
  • Benefit from the robust build and durable design, ideal for frequent use at gigs and events.
  • Achieve pristine vocal clarity with the MMD 835-1 microphone head's cardioid pick-up pattern.
  • Get up to 8 hours of performance with reliable battery life, avoiding interruptions during shows.

What's in the box:

  • EM 100 G4 True Diversity Receiver
  • SKM 100 G4-S Handheld Transmitter
  • MMD 835-1 Microphone Head
  • GA 3 Rackmount Set
  • MZQ 1 Microphone Clamp
  • Power Supply
  • 2x AA Batteries
  • 2x Rod Antennas
  • RJ 10 Cable
  • Quick Guide
  • Safety Guide
  • Manufacturer Declaration Sheet
  • Frequency Supplement Sheet
  • Sennheiser 2 Year Limited Warranty
