Sennheiser ew 100 G4-845-S Wireless Vocal Set with Handheld Transmitter, MMD 845-1 Microphone Head, A: 516 - 558 MHz

SKU: SEEW1G4845SA MFR: EW 100 G4-845-S-A
Earn VIP Reward Points

Key Features

  • Experience exceptional vocal clarity with this Sennheiser wireless microphone system.
  • Enjoy reliable Sennheiser connectivity with a wide 42 MHz switching bandwidth.
  • This wireless system's handheld transmitter offers up to 8 hours of battery life.
  • Achieve professional sound quality with the supercardioid MMD 845-1 microphone head.
  • Easily mount the receiver with the included rackmount set for secure integration.
  • Customize your audio with EQ presets, switchable for flat, low cut, or high boost.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Sennheiser ew 100 G4-845-S Specifications

Receiver: RF Characteristics

Receiver: RF Characteristics

Jump to...
  • Modulation

    Wideband FM

  • Frequency range

    516 - 558 MHz

  • Receiving frequencies

    Max. 1680 receiving frequencies, adjustable in 25 kHz steps
    20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
    1 frequency bank with up to 12 programmable channels

  • Switching bandwidth

    up to 42 MHz

  • Nominal/peak deviation

    +/-24 kHz / +/-48 kHz

  • Receiver principle

    True diversity

  • Sensitivity (with HDX, peak deviation)

    < 2.5 micro V for 52 dBA eff S/N

  • Adjacent channel selection

    Typically >= 65 dB

  • Intermodulation attenuation

    Typically >= 65 dB

  • Blocking

    >= 70 dB

  • Squelch

    Low: 5 dB microV
    Middle: 15 dBmicroV
    high: 25 dBmicro V

  • Pilot tone squelch

    Can be switched off

  • Antenna inputs

    2 BNC sockets

Receiver: AF Characteristics

Jump to...
  • Compander system

    Sennheiser HDX

  • EQ presets

    (switchable, act on line and monitor outputs)
    Preset 1: Flat
    Preset 2: Low Cut (-3 dB at 180 Hz)
    Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
    Preset 4: High Boost (+6 dB at 10 kHz)

  • Signal-to-noise ratio

    (1 mV, peak deviation) >= 110 dBA

  • Total harmonic distortion (THD)

    <= 0.9 %

  • AF output voltage

    (at peak deviation, 1 kHz AF) 6.3 mm jack socket
    (unbalanced): +12 dBu XLR socket
    (balanced): +18 dBu

  • Setting range "AF Out"

    48 dB (3 dB steps)

Receiver: Overall Device

Jump to...
  • Temperature range

    -10 Degree C to +55 Degree C

  • Power supply

    12 V DC

  • Current consumption

    300 mA

  • Dimensions

    Approx. 7.48" x 8.35" x 1.69" (190 x 212 x 43mm)

  • Weight

    Approx. 2.16 lb (980g)

Transmitter: RF Characteristics

Jump to...
  • Modulation

    Wideband FM

  • Frequency range

    516 - 558 MHz

  • Transmission frequencies

    Max. 1680 receiving frequencies, adjustable in 25 kHz steps
    20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
    1 frequency bank with up to 12 programmable channels

  • Switching bandwidth

    up to 42 MHz

  • Nominal/peak deviation

    +/-24 kHz / +/-48 kHz

  • Frequency stability

    <= +/-15 ppm

  • RF output power at 50 Ohm

    Max. 30 mW

  • Pilot tone squelch

    Can be switched off

Transmitter: AF Characteristics

Jump to...
  • Compander system

    Sennheiser HDX

  • AF frequency response

    80 - 18,000 Hz

  • Signal-to-noise ratio

    (1 mV, peak deviation) >= 110 dBA

  • Total harmonic distortion (THD)

    <= 0.9 %

  • Max. input voltage

    3 V

  • Input impedance

    40 kOhm

  • Input capacitance

    Switchable

  • Setting range for input sensitivity

    48 dB, adjustable in 6 dB steps

Transmitter: Overall Device

Jump to...
  • Temperature range

    -10 Degree C to +55 Degree C

  • Power supply

    2 AA Batteries, 1.5 V or BA 2015 accupack

  • Nominal voltage

    3 V Battery /2.4 V rechargeable battery

  • Current consumption

    At nominal voltage: typ. 180 mA
    With transmitter switched off: <= 25 micro A

  • Operating time Typically

    8 h

  • Dimensions

    Approx. diameter 1.96 x 10.4" (50 x 265mm)

  • Weight

    Approx. 0.99 lb (450g) (incl. batteries)

MMD 845-1

Jump to...
  • Transducer principle

    Dynamic

  • Sensitivity

    1.6 mV/Pa

  • Sound pressure level

    154 dB SPL

  • Pick-up pattern

    Supercardioid

  • UPC Code

    615104367975

About Sennheiser ew 100 G4-845-S

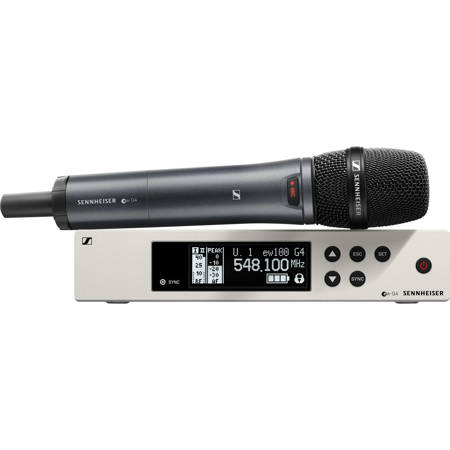

The ew 100 G4-845-S Wireless Vocal Set from Sennheiser is a premium audio solution designed for professionals who demand exceptional sound quality and reliability. This versatile system is ideal for vocalists, speakers, and instrumentalists, offering a broad 42 MHz tuning bandwidth within a stable UHF range. It ensures a seamless, interference-free performance with the capability for fast, simultaneous setup of up to 12 linked systems.

Crafted with the expertise of Sennheiser's acclaimed engineering, the set features the dynamic MMD 845-1 microphone head, which is based on the industry-loved e 835, e 845, and e 865 capsules. The handheld transmitter is constructed from lightweight aluminum and includes an integrated mute switch for on-the-fly control.

The system's architect's specification highlights its robust wireless RF transmission capabilities, operating across twelve UHF frequency ranges, with a comprehensive switching bandwidth of up to 42 MHz. This allows for precise frequency tuning in 25 kHz steps, ensuring optimal signal clarity and reduced interference. The system boasts 20 fixed frequency banks with up to 12 compatible presets and a user bank for 12 programmable frequencies, making it highly adaptable for various performance environments.

At the heart of the system is the Sennheiser EM 100 G4 stationary receiver, which is equipped with a user-friendly, menu-driven interface. The backlit LCD display provides essential information at a glance, including frequency, RF and AF levels, lock status, and battery status of the transmitter. The receiver also includes an integrated guitar tuner and a sound check mode for pre-performance checks.

The receiver's balanced XLR-3M audio output and unbalanced 1/4" audio output ensure compatibility with a wide range of audio equipment, delivering a maximum output of +18 dBu and +12 dBu, respectively. Dual DATA ports facilitate the setup of multichannel systems, while BNC-type input sockets connect the antennas for reliable signal transmission.

Sennheiser's proprietary HDX compander system and pilot tone squelch (which can be disabled if desired) work together to deliver a clean, natural sound with minimal noise. The receiver offers four selectable equalizer presets to tailor the audio output to your preferences. With a signal-to-noise ratio of >= 110 dBA and low total harmonic distortion (THD), the system ensures a pristine audio experience.

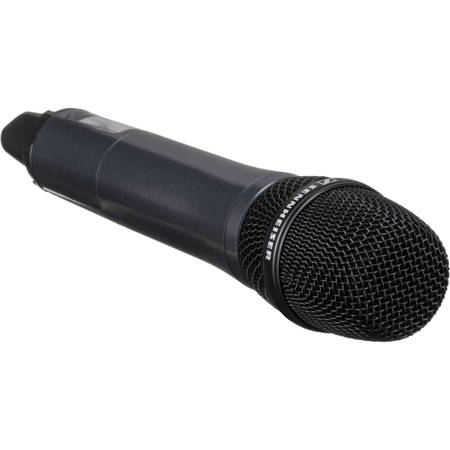

The Sennheiser SKM 100-S G4 handheld transmitter is equally impressive, with a menu-driven interface and a backlit LCD for easy operation. It includes a mute switch with configurable settings and maintains a stable frequency thanks to Sennheiser's precision engineering. The transmitter is powered by two AA batteries or a Sennheiser BA 2015 rechargeable accupack, providing flexibility for performers on the go.

Built to withstand the rigors of live performance, the receiver's rugged metal housing measures approximately 190 x 212 x 43 mm and weighs around 980 grams. It operates within a temperature range of -10°C to +55°C, ensuring reliability across various climates and conditions.

In summary, the ew 100 G4-845-S Wireless Vocal Set is a state-of-the-art solution for professionals seeking unparalleled sound quality and performance flexibility. With its wide frequency range, user-friendly features, and durable construction, it stands as a top choice for those in the audio industry.

Sennheiser ew 100 G4-845-S Features

  • Engineered for professional live sound: Rugged all-in-one wireless system for singers and presenters
  • State-of-the-art live sound featuring Sennheiser s renowned e 835, e 845, e 865, e 935, e 945 capsules on a lightweight aluminium transmitter with integrated mute switch
  • True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Fast frequency allocation for up to 12 receivers via new linking functionality
  • Up to 20 compatible channels
  • Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
  • Transmission Range: up to 100m (300')
  • High RF output power (up to 30 mW) depending on country regulations

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Experience exceptional vocal clarity with this Sennheiser wireless microphone system.
  • Enjoy reliable Sennheiser connectivity with a wide 42 MHz switching bandwidth.
  • This wireless system's handheld transmitter offers up to 8 hours of battery life.
  • Achieve professional sound quality with the supercardioid MMD 845-1 microphone head.
  • Easily mount the receiver with the included rackmount set for secure integration.
  • Customize your audio with EQ presets, switchable for flat, low cut, or high boost.

What's in the box:

  • EM 100 G4 True Diversity Receiver
  • SKM 100 G4-S Handheld Transmitter
  • MMD 845-1 Microphone Head
  • GA 3 Rackmount Set
  • MZQ 1 Microphone Clamp
  • Power Supply
  • 2x AA Batteries
  • 2x Rod Antennas
  • RJ 10 Cable
  • Quick Guide
  • Safety Guide
  • Manufacturer Declaration Sheet
  • Frequency Supplement Sheet
  • Sennheiser 2 Year Limited Warranty
