Sennheiser ew 100 G4-865-S Wireless Vocal Set with Handheld Transmitter, MME 865-1 Microphone Head, A: 516 - 558 MHz

SKU: SEEW1G4865SA MFR: EW 100 G4-865-S-A
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Sennheiser wireless microphone system.
  • Achieve low latency and reliable connectivity for seamless performances every time.
  • Enjoy extended battery life, perfect for long events and professional presentations.
  • Easy to use interface ensures quick setup, so you're ready to perform in moments.
  • This wireless vocal set provides a wide frequency range for crystal-clear audio capture.
  • The handheld transmitter offers exceptional range, giving you freedom on stage.
See More Product Details

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Sennheiser ew 100 G4-865-S Specifications

Receiver: RF Characteristics

Receiver: RF Characteristics

Jump to...
  • Modulation

    Wideband FM

  • Frequency range

    516 - 558 MHz

  • Receiving frequencies

    Max. 1680 receiving frequencies, adjustable in 25 kHz steps
    20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
    1 frequency bank with up to 12 programmable channels

  • Switching bandwidth

    up to 42 MHz

  • Nominal/peak deviation

    +/-24 kHz / +/-48 kHz

  • Receiver principle

    True diversity

  • Sensitivity (with HDX, peak deviation)

    < 2.5 micro V for 52 dBA eff S/N

  • Adjacent channel selection

    Typically >= 65 dB

  • Intermodulation attenuation

    Typically >= 65 dB

  • Blocking

    >= 70 dB

  • Squelch

    Low: 5 dB microV
    Middle: 15 dBmicroV
    high: 25 dBmicro V

  • Pilot tone squelch

    Can be switched off

  • Antenna inputs

    2 BNC sockets

Receiver: AF Characteristics

Jump to...
  • Compander system

    Sennheiser HDX

  • EQ presets

    (switchable, act on line and monitor outputs)
    Preset 1: Flat
    Preset 2: Low Cut (-3 dB at 180 Hz)
    Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
    Preset 4: High Boost (+6 dB at 10 kHz)

  • Signal-to-noise ratio

    (1 mV, peak deviation) >= 110 dBA

  • Total harmonic distortion (THD)

    <= 0.9 %

  • AF output voltage

    (at peak deviation, 1 kHz AF) 6.3 mm jack socket
    (unbalanced): +12 dBu XLR socket
    (balanced): +18 dBu

  • Setting range "AF Out"

    48 dB (3 dB steps)

Receiver: Overall Device

Jump to...
  • Temperature range

    -10 Degree C to +55 Degree C

  • Power supply

    12 V DC

  • Current consumption

    300 mA

  • Dimensions

    Approx. 7.48" x 8.35" x 1.69" (190 x 212 x 43mm)

  • Weight

    Approx. 2.16 lb (980g)

Transmitter: RF Characteristics

Jump to...
  • Modulation

    Wideband FM

  • Frequency range

    516 - 558 MHz

  • Transmission frequencies

    Max. 1680 receiving frequencies, adjustable in 25 kHz steps
    20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
    1 frequency bank with up to 12 programmable channels

  • Switching bandwidth

    up to 42 MHz

  • Nominal/peak deviation

    +/-24 kHz / +/-48 kHz

  • Frequency stability

    <= +/-15 ppm

  • RF output power at 50 Ohm

    Max. 30 mW

  • Pilot tone squelch

    Can be switched off

Transmitter: AF Characteristics

Jump to...
  • Compander system

    Sennheiser HDX

  • AF frequency response

    80 - 18,000 Hz

  • Signal-to-noise ratio

    (1 mV, peak deviation) >= 110 dBA

  • Total harmonic distortion (THD)

    <= 0.9 %

  • Max. input voltage

    3 V

  • Input impedance

    40 kOhm

  • Input capacitance

    Switchable

  • Setting range for input sensitivity

    48 dB, adjustable in 6 dB steps

Transmitter: Overall Device

Jump to...
  • Temperature range

    -10 Degree C to +55 Degree C

  • Power supply

    2 AA Batteries, 1.5 V or BA 2015 accupack

  • Nominal voltage

    3 V Battery /2.4 V rechargeable battery

  • Current consumption

    At nominal voltage: typ. 180 mA
    With transmitter switched off: <= 25 micro A

  • Operating time Typically

    8 h

  • Dimensions

    Approx. diameter 1.96 x 10.4" (50 x 265mm)

  • Weight

    Approx. 0.99 lb (450g) (incl. batteries)

MME 865-1

Jump to...
  • Transducer principle

    Pre-polarized condensor microphone

  • Sensitivity

    1.6 mV/Pa

  • Sound pressure level

    152 dB SPL

  • Pick-up pattern

    Supercardioid

  • UPC Code

    615104368040

About Sennheiser ew 100 G4-865-S

You can elevate your live performances with the ew 100 G4-865-S Wireless Vocal Set, a professional-grade wireless system designed to deliver unparalleled audio clarity and reliability. This set includes the robust handheld transmitter and the MME 865-1 microphone head, renowned for its high-quality sound reproduction, making it an ideal choice for vocalists, speakers, and instrumentalists alike.

Crafted with durability in mind, the lightweight aluminum transmitter ensures ease of use during extended performances and is equipped with an integrated mute switch for seamless audio control. The system boasts a broad 42 MHz tuning bandwidth within the stable UHF range, ensuring clear transmission even in environments with heavy RF activity. With the capability to swiftly set up simultaneous connections for up to 12 linked systems, this wireless vocal set is both innovative and user-friendly.

The receiver, a core component of the ew 100 G4-865-S set, is engineered with a menu-driven interface featuring a backlit LCD display. It provides essential information at a glance, including current frequency, frequency bank, channel number, RF and AF level metering, lock status, pilot tone evaluation, muting function, and transmitter battery status. The auto-lock function prevents accidental changes, ensuring your settings remain consistent throughout your performance.

For those seeking a tailored sound, the receiver offers four selectable equalizer presets to match your audio preferences. The Sennheiser HDX compander system and the defeatable pilot tone squelch contribute to the pristine sound quality and minimal interference that Sennheiser users have come to expect.

Connectivity is a breeze with the receiver's balanced XLR-3M audio output and unbalanced 1/4" audio output, alongside two DATA ports for multichannel system configuration and BNC-type input sockets for antenna connection. The receiver's robust metal housing is designed to withstand the rigors of on-the-road use, and its compact size makes it a discreet addition to any stage setup.

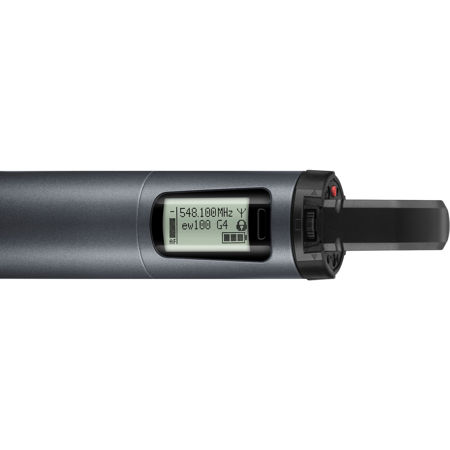

The handheld transmitter, the Sennheiser SKM 100-S G4, is equally impressive, with a user-friendly menu-driven interface and a backlit LCD for monitoring various parameters. The mute switch on the transmitter adds an extra layer of control, allowing for quick muting options during performances.

Powered by two AA batteries or the Sennheiser BA 2015 rechargeable accupack, the transmitter is designed for convenience and extended use. With a selection of microphone heads available, the ew 100 G4-865-S Wireless Vocal Set is versatile and adaptable to your unique sound requirements.

Choose the ew 100 G4-865-S Wireless Vocal Set for its reliable performance, wide frequency range, and the reputation of Sennheiser's high-quality audio equipment. Whether for concerts, theater productions, or corporate events, this wireless system is engineered to meet the demands of professionals who refuse to compromise on sound quality.

Sennheiser ew 100 G4-865-S Features

  • Engineered for professional live sound: Rugged all-in-one wireless system for singers and presenters
  • State-of-the-art live sound featuring Sennheiser s renowned e 835, e 845, e 865, e 935, e 945 capsules on a lightweight aluminium transmitter with integrated mute switch
  • True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Fast frequency allocation for up to 12 receivers via new linking functionality
  • Up to 20 compatible channels
  • Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
  • Transmission Range: up to 100m (300')
  • High RF output power (up to 30 mW) depending on country regulations

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Experience superior sound quality with this Sennheiser wireless microphone system.
  • Achieve low latency and reliable connectivity for seamless performances every time.
  • Enjoy extended battery life, perfect for long events and professional presentations.
  • Easy to use interface ensures quick setup, so you're ready to perform in moments.
  • This wireless vocal set provides a wide frequency range for crystal-clear audio capture.
  • The handheld transmitter offers exceptional range, giving you freedom on stage.

What's in the box:

  • EM 100 G4 True Diversity Receiver
  • SKM 100 G4-S Handheld Transmitter
  • MME 865-1 Microphone Head
  • GA 3 Rackmount Set
  • MZQ 1 Microphone Clamp
  • Power Supply
  • 2x AA Batteries
  • 2x Rod Antennas
  • RJ 10 Cable
  • Quick Guide
  • Safety Guide
  • Manufacturer Declaration Sheet
  • Frequency Supplement Sheet
  • Sennheiser 2 Year Limited Warranty
