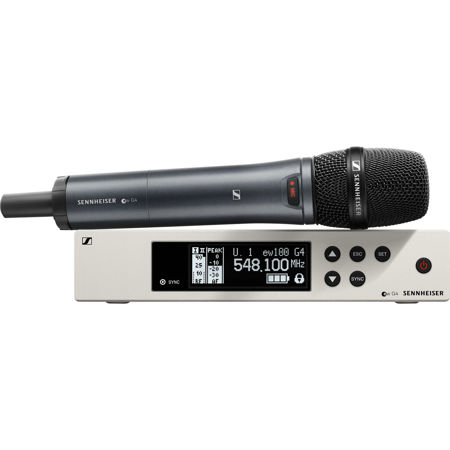

Sennheiser ew 100 G4-865-S Wireless Vocal Set with Handheld Transmitter, MME 865-1 Microphone Head, G: 566 - 608 MHz

SKU: SEEW1G4865SG MFR: EW 100 G4-865-S-G
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Sennheiser wireless microphone system, perfect for live vocals.
  • Enjoy freedom of movement on stage with a reliable handheld wireless microphone offering up to 42MHz bandwidth.
  • The ew 100 G4-865-S vocal set includes a supercardioid microphone head for focused, clear audio capture.
  • Achieve professional audio clarity with a signal-to-noise ratio >= 110 dBA, ideal for performances.
  • This durable wireless microphone system operates for up to 8 hours, ensuring long-lasting performance.
  • Easily integrate this rackmount wireless microphone into your existing setup with included accessories.
See More Product Details

Product Options

Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Sennheiser ew 100 G4-865-S Specifications

Receiver: RF Characteristics

Receiver: RF Characteristics

Jump to...
  • Modulation

    Wideband FM

  • Frequency range

    566 - 608 MHz

  • Receiving frequencies

    Max. 1680 receiving frequencies, adjustable in 25 kHz steps
    20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
    1 frequency bank with up to 12 programmable channels

  • Switching bandwidth

    up to 42 MHz

  • Nominal/peak deviation

    +/-24 kHz / +/-48 kHz

  • Receiver principle

    True diversity

  • Sensitivity (with HDX, peak deviation)

    < 2.5 micro V for 52 dBA eff S/N

  • Adjacent channel selection

    Typically >= 65 dB

  • Intermodulation attenuation

    Typically >= 65 dB

  • Blocking

    >= 70 dB

  • Squelch

    Low: 5 dB microV
    Middle: 15 dBmicroV
    high: 25 dBmicro V

  • Pilot tone squelch

    Can be switched off

  • Antenna inputs

    2 BNC sockets

Receiver: AF Characteristics

Jump to...
  • Compander system

    Sennheiser HDX

  • EQ presets

    (switchable, act on line and monitor outputs)
    Preset 1: Flat
    Preset 2: Low Cut (-3 dB at 180 Hz)
    Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
    Preset 4: High Boost (+6 dB at 10 kHz)

  • Signal-to-noise ratio

    (1 mV, peak deviation) >= 110 dBA

  • Total harmonic distortion (THD)

    <= 0.9 %

  • AF output voltage

    (at peak deviation, 1 kHz AF) 6.3 mm jack socket
    (unbalanced): +12 dBu XLR socket
    (balanced): +18 dBu

  • Setting range "AF Out"

    48 dB (3 dB steps)

Receiver: Overall Device

Jump to...
  • Temperature range

    -10 Degree C to +55 Degree C

  • Power supply

    12 V DC

  • Current consumption

    300 mA

  • Dimensions

    Approx. 7.48" x 8.35" x 1.69" (190 x 212 x 43mm)

  • Weight

    Approx. 2.16 lb (980g)

Transmitter: RF Characteristics

Jump to...
  • Modulation

    Wideband FM

  • Frequency range

    566 - 608 MHz

  • Transmission frequencies

    Max. 1680 receiving frequencies, adjustable in 25 kHz steps
    20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
    1 frequency bank with up to 12 programmable channels

  • Switching bandwidth

    up to 42 MHz

  • Nominal/peak deviation

    +/-24 kHz / +/-48 kHz

  • Frequency stability

    <= +/-15 ppm

  • RF output power at 50 Ohm

    Max. 30 mW

  • Pilot tone squelch

    Can be switched off

Transmitter: AF Characteristics

Jump to...
  • Compander system

    Sennheiser HDX

  • AF frequency response

    80 - 18,000 Hz

  • Signal-to-noise ratio

    (1 mV, peak deviation) >= 110 dBA

  • Total harmonic distortion (THD)

    <= 0.9 %

  • Max. input voltage

    3 V

  • Input impedance

    40 kOhm

  • Input capacitance

    Switchable

  • Setting range for input sensitivity

    48 dB, adjustable in 6 dB steps

Transmitter: Overall Device

Jump to...
  • Temperature range

    -10 Degree C to +55 Degree C

  • Power supply

    2 AA Batteries, 1.5 V or BA 2015 accupack

  • Nominal voltage

    3 V Battery /2.4 V rechargeable battery

  • Current consumption

    At nominal voltage: typ. 180 mA
    With transmitter switched off: <= 25 micro A

  • Operating time Typically

    8 h

  • Dimensions

    Approx. diameter 1.96 x 10.4" (50 x 265mm)

  • Weight

    Approx. 0.99 lb (450g) (incl. batteries)

MME 865-1

Jump to...
  • Transducer principle

    Pre-polarized condensor microphone

  • Sensitivity

    1.6 mV/Pa

  • Sound pressure level

    152 dB SPL

  • Pick-up pattern

    Supercardioid

  • UPC Code

    615104368057

About Sennheiser ew 100 G4-865-S

Let the ew 100 G4-865-S Wireless Vocal Set with Handheld Transmitter and MME 865-1 Microphone Head, operating in the G: 566 - 608 MHz range, elevate your audio experience. This high-quality, professional-grade wireless system is ideal for those who sing, speak, or play instruments, offering a stable UHF range and a tuning bandwidth of up to 42 MHz.

Engineered by the reputable brand Sennheiser, this innovative system allows for the fast, simultaneous setup of up to 12 linked systems. It features Sennheiser's renowned e 835, e 845, and e 865 capsules, all housed on a lightweight aluminum transmitter equipped with an integrated mute switch for seamless operation.

The system's stationary receiver and handheld transmitter, which includes a microphone head, operate within twelve UHF frequency ranges, with a switching bandwidth of up to 42 MHz. The receiver is menu-driven and features a backlit LCD display, providing real-time information such as current frequency, frequency bank and channel number, RF level metering, AF level metering, lock status, pilot tone evaluation, muting function, and the battery status of the associated transmitter.

An auto-lock feature ensures your settings remain secure, while an integrated guitar tuner and sound check mode enhance usability. The receiver also offers a balanced XLR-3M audio output and an unbalanced 1/4" (6.3 mm) audio output, along with two DATA ports (RJ 10) for setting up a multichannel system.

The handheld transmitter, equipped with a mute switch, is also menu-driven with a backlit LCD display. It offers a range of configurable parameters, synchronized with the receiver via an integrated infrared interface.

This durable and reliable wireless vocal set is designed to withstand the rigors of live performances, making it an excellent choice for concerts, theater productions, and other events where a wireless microphone system is required. With the ew 100 G4-865-S Wireless Vocal Set, you can enjoy the freedom of movement without compromising on sound quality.

Sennheiser ew 100 G4-865-S Features

  • Engineered for professional live sound: Rugged all-in-one wireless system for singers and presenters
  • State-of-the-art live sound featuring Sennheiser s renowned e 835, e 845, e 865, e 935, e 945 capsules on a lightweight aluminium transmitter with integrated mute switch
  • True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Fast frequency allocation for up to 12 receivers via new linking functionality
  • Up to 20 compatible channels
  • Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
  • Transmission Range: up to 100m (300')
  • High RF output power (up to 30 mW) depending on country regulations

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Experience superior sound quality with this Sennheiser wireless microphone system, perfect for live vocals.
  • Enjoy freedom of movement on stage with a reliable handheld wireless microphone offering up to 42MHz bandwidth.
  • The ew 100 G4-865-S vocal set includes a supercardioid microphone head for focused, clear audio capture.
  • Achieve professional audio clarity with a signal-to-noise ratio >= 110 dBA, ideal for performances.
  • This durable wireless microphone system operates for up to 8 hours, ensuring long-lasting performance.
  • Easily integrate this rackmount wireless microphone into your existing setup with included accessories.

What's in the box:

  • EM 100 G4 True Diversity Receiver
  • SKM 100 G4-S Handheld Transmitter
  • MME 865-1 Microphone Head
  • GA 3 Rackmount Set
  • MZQ 1 Microphone Clamp
  • Power Supply
  • 2x AA Batteries
  • 2x Rod Antennas
  • RJ 10 Cable
  • Quick Guide
  • Safety Guide
  • Manufacturer Declaration Sheet
  • Frequency Supplement Sheet
  • Sennheiser 2 Year Limited Warranty
