Sennheiser ew 300 G4-Base Combo Set with Handheld Transmitter, Bodypack Transmitter, AW+: 470 - 558 MHz

SKU: SEEW3G4BCAWP MFR: EW 300 G4-BASE COMBO-AW+
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Sennheiser wireless microphone system for clear audio.
  • Achieve a reliable wireless range, perfect for presentations and dynamic stage performances.
  • Enjoy extended battery life with the Sennheiser ew 300 G4, ideal for long events and conferences.
  • The intuitive interface ensures ease of use, making setup a breeze for any audio professional.
  • Built with durability in mind, this Sennheiser wireless system withstands the rigors of touring.
  • Get exceptional value with a professional-grade wireless microphone system, offering top performance.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Sennheiser ew 300 G4-Base Combo Set Specifications

Rx (EM 300-500 G4): RF Characteristics

Rx (EM 300-500 G4): RF Characteristics

Jump to...
  • Modulation

    Wideband FM

  • Frequency range

    470 - 558 MHz

  • Transmission frequencies

    Max. 2880 frequencies, adjustable in 25 kHz steps
    20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
    6 frequency banks with up to 32 programmable channels

  • Switching bandwidth

    Up to 72 MHz

  • Nominal/peak deviation

    +/-24 kHz / +/-48 kHz

  • Receiver Principle

    True diversity

  • Sensitivity (with HDX, peak deviation)

    < 2.5 micro V for 52 dBA

  • Adjacent channel selection

    Typically >= 75 dB

  • Intermodulation attenuation

    Typically >= 70 dB

  • Blocking

    >= 75 dB

  • Squelch

    5 to 25 dB micro V in steps of 2 dB

  • Pilot tone squelch

    Can be switched off

  • Antenna inputs

    2 BNC sockets

Rx (EM 300-500 G4): AF Characteristics

Jump to...
  • Compander system Sennheiser

    HDX

  • EQ presets

    Preset 1: Flat
    Preset 2: Low Cut (-3 dB at 180 Hz)
    Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
    Preset 4: High Boost (+6 dB at 10 kHz) (switchable, act on line and monitor outputs)

  • Signal-to-noise ratio

    (1 mV, peak deviation) >= 115 dBA

  • Total harmonic distortion

    (THD)<= 0.9 %

  • AF output voltage

    (at peak deviation, 1 kHz AF)
    6.3 mm jack socket
    (unbalanced): +12 dBu XLR socket
    (balanced): +18 dBu

  • Setting range "AF Out"

    48 dB (3 dB steps)

Rx (EM 300-500 G4): Overall Device

Jump to...
  • Temperature range

    14 Degree F to 131 F (-10 Degree C to +55 Degree C)

  • Power supply

    12 V DC

  • Current consumption

    350 mA

  • Dimensions

    Approx. 7.95 x 8.35 x 1.69" (202 x 212 x 43mm)

  • Weight

    Approx. 2.16 lb (980g)

Tx (SKM 300 G4): RF Characteristics

Jump to...
  • Modulation

    Wideband FM

  • Frequency range

    470 - 558 MHz

  • Transmission frequencies

    Max. 2880 frequencies, adjustable in 25 kHz steps
    20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
    6 frequency banks with up to 32 programmable channels

  • Switching bandwidth

    Up to 72 MHz

  • Nominal/peak deviation

    +/-24 kHz / +/-48 kHz

  • Frequency stability

    <= +/-15 ppm

  • RF output power at 50 Ohm

    Switchable:
    Low: typ. 10 mW
    Standard: typ. 30 mW
    High: typ. 50 mW

  • Pilot tone squelch

    Can be switched off

Tx (SKM 300 G4): AF Characteristics

Jump to...
  • Compander system

    Sennheiser HDX

  • AF frequency response

    80 - 18,000 Hz

  • Signal-to-noise ratio

    (1 mV, peak deviation) >= 115 dBA

  • Total harmonic distortion

    (THD)<= 0.9 %

  • Setting range for input sensitivity

    48 dB, adjustable in 6 dB steps

Tx (SKM 300 G4): Overall Device

Jump to...
  • Temperature range

    14 Degree F to 131 F (-10 Degree C to +55 Degree C)

  • Power supply

    2 AA batteries, 1.5 V or BA 2015 accupack

  • Nominal voltage

    3 V battery / 2.4 V rechargeable battery

  • Current consumption

    At nominal voltage: typ. 180 mA
    With transmitter switched off: <= 25 micro A

  • Operating time

    Typically 8 h

  • Dimensions

    Approx. 1.96 x 10.4" (50 x 265mm)

  • Weight

    Approx. 0.99 lb (450g) (incl. batteries)

Tx (SK 300 G4): RF Characteristics

Jump to...
  • Modulation

    Wideband FM

  • Frequency range

    470 - 558 MHz

  • Transmission frequencies

    Max. 2880 frequencies, adjustable in 25 kHz steps
    20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
    6 frequency banks with up to 32 programmable channels

  • Switching bandwidth

    Up to 72 MHz

  • Nominal/peak deviation

    +/-24 kHz / +/-48 kHz

  • Frequency stability

    <= +/-15 ppm

  • RF output power at 50 Ohm

    Switchable:
    Low: typ. 10 mW
    Standard: typ. 30 mW
    High: typ. 50 mW

  • Pilot tone squelch

    Can be switched off

Tx (SK 300 G4): AF Characteristics

Jump to...
  • Compander system

    Sennheiser HDX

  • AF frequency response

    Mic: 80 - 18,000 Hz
    Line: 25 - 18,000 Hz

  • Signal-to-noise ratio

    (1 mV, peak deviation) >= 115 dBA

  • Total harmonic distortion

    (THD)<= 0.9 %

  • Max. microphone/line input voltage

    3 V eff

  • Microphone/line input impedance

    40 kOhm, unbalanced / 1 MOhm

  • Input capacitance

    Switchable

  • Setting range for input sensitivity

    60 dB, adjustable in 3 dB steps

Tx (SK 300 G4): Overall Device

Jump to...
  • Temperature range

    14 Degree F to 131 F (-10 Degree C to +55 Degree C)

  • Power supply

    2 AA batteries, 1.5 V or BA 2015 accupack

  • Nominal voltage

    3 V battery / 2.4 V rechargeable battery

  • Current consumption

    At nominal voltage: typ. 180 mA
    With transmitter switched off: <= 25 micro A

  • Operating time

    Typically 8 h

  • Dimensions

    Approx. diameter 3.23 x 2.52 x 0.94" (82 x 64 x 24mm)

  • Weight

    Approx. 0.35 lb (160g) (incl. batteries)

  • UPC Code

    615104368866

About Sennheiser ew 300 G4-Base Combo Set

What sets the ew 300 G4-Base Combo Set apart is its professional-grade quality and advanced features, making it a top choice for businesses and educational institutions alike. This set, from the reputable brand Sennheiser, is designed for wireless audio transmission, ideal for live performances, presentations, and events where superior speech intelligibility is paramount.

The G4 300 Series is powered by an increased switching bandwidth of up to 88 MHz, allowing for multi-channel setups with dozens of channels. This ensures reliable operation, even in the face of digital dividend. The set includes a stationary receiver, a handheld transmitter, and a bodypack transmitter, offering maximum flexibility for various audio needs.

The system operates within ten UHF frequency ranges, with a switching bandwidth of up to 72 MHz, and receiving frequencies of 2,880 per range, tunable in 25 kHz steps. This wide frequency range of 470-558 MHz makes it adaptable for a multitude of applications.

The receiver is user-friendly, featuring a backlit OLED display that shows essential information such as current frequency, frequency bank and channel number, RF level, AF level, lock status, pilot tone evaluation, muting function, and battery status of the associated transmitter. An auto-lock feature is included to prevent accidental alteration of settings.

The handheld and bodypack transmitters are also menu-driven, with backlit LCD displays showing similar information. Both transmitters incorporate the Sennheiser HDX compander system and a defeatable pilot tone squelch, ensuring high-quality audio transmission.

The receiver and transmitters are housed in rugged metal, ensuring durability and longevity. The receiver also features an Ethernet port for remote network-based monitoring and control, further enhancing its usability and convenience.

In summary, the ew 300 G4-Base Combo Set with Handheld Transmitter, Bodypack Transmitter, and AW+ frequency range of 470-558 MHz is a reliable, high-quality, and advanced solution for your wireless audio transmission needs.

Sennheiser ew 300 G4-Base Combo Set Features

  • Easy to use, fast setup time
  • Integrated network port allows control, monitoring and setup via Sennheiser Control Cockpit and WSM Software
  • Broad range of products and existing accessories (such as microphones) allows usage in any kind of environment
  • Up to 88 MHz bandwidth, up to 32 channels
  • Increased RF output power (10/30/50 mW)
  • Transmission Range: up to 100m (330')
  • Compatible with wireless speaker system LSP 500 PRO
  • RC (remote control) switch available for the bodypack transmitter

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Experience superior sound quality with this Sennheiser wireless microphone system for clear audio.
  • Achieve a reliable wireless range, perfect for presentations and dynamic stage performances.
  • Enjoy extended battery life with the Sennheiser ew 300 G4, ideal for long events and conferences.
  • The intuitive interface ensures ease of use, making setup a breeze for any audio professional.
  • Built with durability in mind, this Sennheiser wireless system withstands the rigors of touring.
  • Get exceptional value with a professional-grade wireless microphone system, offering top performance.

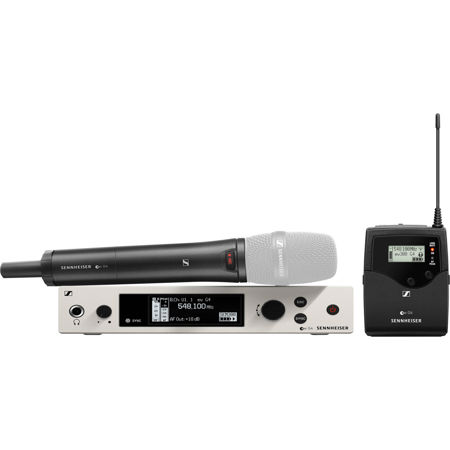

What's in the box:

  • EM 300-500 G4 True Diversity Receiver
  • SKM 300 G4-S Handheld Transmitter
  • SK 300 G4-RC Bodypack Transmitter
  • MZQ 1 Microphone Clamp
  • 4x AA Batteries
  • Power Supply
  • 2x Rod Antennas
  • GA 3 Rackmount Set
  • Quick Guide
  • Safety Guide
  • Manufacturer Declaration Sheet
  • Sennheiser 2 Year Limited Warranty
