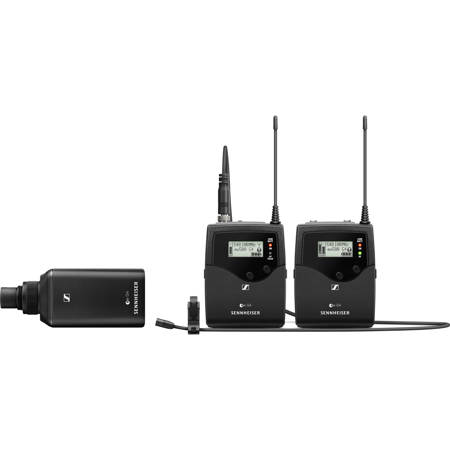

Sennheiser ew 500 FILM G4 Camera-Mount Wireless Combo Microphone System, GW1: 558 to 608 MHz

SKU: SEEW5FLG4GW1 MFR: 509551
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this Sennheiser wireless microphone system for film.
  • Enjoy a wide 558-608 MHz range, ensuring clear, interference-free wireless transmission.
  • The included MKE 2 lavalier microphone delivers exceptional sound quality in any environment.
  • Use the camera-mount receiver for easy integration with your existing video equipment setup.
  • Benefit from up to 8 hours of battery life for extended shooting on location with this microphone.
  • The robust build ensures durability, making this wireless microphone a reliable tool for professionals.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Shopper : Can both mics be used at same time? The lav and hand held?
Stuart D : How many microphones does this system come with? There is only one mic pictured.ANDREW R : One: What's in the box: EK 500 G4 Camera Receiver SK 500 G4 Bodypack Transmitter SKP 500 G4 Pro Plug-on Transmitter MKE 2 Lavalier Omnidirectional Microphone 4x AA Batteries CL 13.5 mm Jack Cable CL 500 XLR to 3.5 mm Jack Adapter Cable CA 2 Camera Adapter Fur Windscreen for MKE 2 Quick Guide Safety Guide Manufacturer Declaration Sheet Sennheiser 2 Year Limited Warranty

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Sennheiser ew 500 FILM G4 Combo Set Specifications

Rx (EK 500 G4): RF characteristics

Rx (EK 500 G4): RF characteristics

Jump to...
  • Modulation

    Wideband FM

  • Frequency range

    558 - 608 MHz

  • Receiving frequencies

    Max. 2880 receiving frequencies, adjustable in 25 kHz steps
    20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
    6 frequency banks with up to 32 programmable channels

  • Switching bandwidth

    Up to 72 MHz

  • Nominal/peak deviation

    +/-24 kHz / +/-48 kHz

  • Receiver principle

    Adaptive diversity

  • Sensitivity (with HDX, peak deviation)

    < 1.6 microV for 52 dBA

  • Adjacent channel selection

    Typically >= 65 dB

  • Intermodulation attenuation

    Typically >= 65 dB

  • Blocking

    >= 70 dB

  • Squelch

    Low: 5 dB micro
    Middle: 15 dB microV
    High: 25 dB microV

  • Pilot tone squelch

    Can be switched off

Rx (EK 500 G4): AF Characteristics

Jump to...
  • Compander system

    Sennheiser HDX

  • Signal-to-noise ratio

    Line: >= 110 dBA Phones: approx. 90 dBA (1 mV, peak deviation)

  • Total harmonic distortion (THD)

    <= 0.9 %

  • AF output voltage

    3.5 mm jack socket: +17 dBu (mono, unbalanced) (at peak deviation, 1 kHz AF)

  • Adjustment range of audio output level

    42 dB, adjustable in steps of 6 dB

Rx (EK 500 G4): Overall Device

Jump to...
  • Temperature range

    14 Degree F to 131 F (-10 Degree C to +55 Degree C)

  • Power supplY

    2 AA batteries, 1.5 V or BA 2015 accupack

  • Nominal voltage

    3 V battery / 2.4 V rechargeable battery

  • Current consumption

    At nominal voltage: typ. 140 mA with receiver switched off: <= 25 microA

  • Operating time

    Typically 8 h

  • Dimensions

    Approx. 3.23 x 2.52 x 0.95" (82 x 64 x 24mm)

  • Weight

    Approx. 0.29 lb (130g) (Incl. batteries)

Tx (SK 500 G4): RF characteristics

Jump to...
  • Modulation

    Wideband FM

  • Frequency range

    558 - 608 MHz

  • Transmission frequencies

    Max. 2880 frequencies, adjustable in 25 kHz steps
    20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
    6 frequency banks with up to 32 programmable channels

  • Switching bandwidth

    Up to 72 MHz

  • Nominal/peak deviation

    +/-24 kHz / +/-48 kHz

  • Frequency stability

    <= +/-15 ppm

  • RF output power at 50 Ohm

    Switchable:
    Low: typ. 10 mW
    Standard: typ. 30 mW
    High: typ. 50 mW

  • Pilot tone squelch

    Can be switched off

  • Compander system

    Sennheiser HDX

Tx (SK 500 G4): AF characteristics

Jump to...
  • AF frequency response

    Mic: 80 - 18,000 Hz
    Line: 25 - 18,000 Hz

  • Signal-to-noise ratio

    >= 115 dBA (1 mV, peak deviation)

  • Total harmonic distortion (THD)

    <= 0.9 %

  • Max. microphone/line input voltage

    3 V eff

  • Microphone/line input impedance

    40 kOhm, unbalanced / 1 MOhm

  • Input capacitance

    Switchable

  • Setting range for input sensitivity

    60 dB, adjustable in 3 dB steps

Tx (SK 500 G4): Overall device

Jump to...
  • Temperature range

    14 Degree F to 131 F (-10 Degree C to +55 Degree C)

  • Power supply

    2 AA batteries, 1.5 V or BA 2015 accupack

  • Nominal voltage

    3 V battery / 2.4 V rechargeable battery

  • Current consumption

    At nominal voltage:
    typ. 180 mA
    with transmitter switched off: <= 25 microA

  • Operating time

    Typically 8 h

  • Dimensions

    Approx. 3.22 x 2.5 x 0.94" (82 x 64 x 24 mm)

  • Weight

    Approx. 0.35 lb (160g) (incl. batteries)

Tx (SKP 500 G4): RF characteristics

Jump to...
  • Modulation

    Wideband FM

  • Frequency range

    558 - 608 MHz

  • Transmission frequencies

    Max. 2880 frequencies, adjustable in 25 kHz steps
    20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
    6 frequency banks with up to 32 programmable channels

  • Switching bandwidth

    Up to 72 MHz

  • Nominal/peak deviation

    +/-24 kHz / +/-48 kHz

  • Frequency stability

    <= +/-15 ppm

  • RF output power at 50 Ohm

    Switchable:
    Low: typ. 10 mW
    Standard: typ. 30 mW
    High: typ. 50 mW

  • Pilot tone squelch

    Can be switched off

  • Compander system

    Sennheiser HDX

Tx (SKP 500 G4): AF characteristics

Jump to...
  • Signal-to-noise ratio

    >= 120 dBA (1 mV, peak deviation)

  • AF frequency response

    80 - 18,000 Hz

  • Total harmonic distortion (THD)

    <= 0.9 %

  • Max. input voltage

    6 V eff

  • Input impedance

    68 kOhm, unbalanced

  • Input capacitance

    Switchable

  • Setting range for input sensitivity

    48 dB, adjustable in 6 dB steps

Tx (SKP 500 G4): Overall device

Jump to...
  • Temperature range

    14 Degree F to 131 F (-10 Degree C to +55 Degree C)

  • Power supply

    2 AA batteries, 1.5 V or BA 2015 accupack

  • Nominal voltage

    3 V battery / 2.4 V rechargeable battery

  • Current consumption

    At nominal voltage: typ. 210 mA
    with transmitter switched off: <= 25 microA

  • Operating time

    Typically 8 h

  • Dimensions

    Approx. 4.13 x 1.69 x 1.69" (105 x 43 x 43mm)

  • Weight

    Approx. 0.42 lb (195g) (incl. batteries)

MKE 2 Lavalier

Jump to...
  • Transducer principle

    Pre-polarized condensor microphone

  • Pick-up pattern

    Omni-directional

  • Sensitivity

    (free field, no load [1 kHz]) 5 mV/Pa, +/- 3 dB

  • Max. SPL at 1 kHz

    142 dB

  • Frequency response

    20 to 20.000 Hz +/- 3 dB

  • Equivalent noise level

    A-weighted (DIN IEC 651) 26 dB
    CCIR-weighted (CCIR 468-1) 39 dB

  • Connector

    3.5 mm jack

  • Cable length

    Approx. 1.60m

  • UPC Code

    615104364424

28 Accessories for Sennheiser ew 500 FILM G4 Camera-Mount Wireless Combo Microphone System, GW1: 558 to 608 MHz

  • All Accessories (28)
  • Batteries & Power Supply (7)
  • Microphones (4)
  • Microphone and Accessories (1)
  • Windjammers (4)
  • Clips (7)
  • Headphones (5)
Models
Sennheiser ew 500 FILM G4 Camera-Mount Wireless Combo Mic System, 558-608 MHz
$1,449.00

$1,699.00

Save:$250.00 (15%)

Ships from Manufacturer

Usually ships within 3-7 Days. Delivery is subject to availability.

Sennheiser ew 300 G4-HEADMIC1-RC Wireless Headmic Set, GW1: 558 - 608 MHz
$1,279.00

$1,599.00

Save:$320.00 (20%)

Ships from Manufacturer

Usually ships within 3-7 Days. Delivery is subject to availability.

Sennheiser ew 300 G4-ME2-RC Wireless Lavalier Set, GW1: 558 - 608 MHz
$1,099.00

$1,249.00

Save:$150.00 (12%)

Ships from Manufacturer

Usually ships within 3-7 Days. Delivery is subject to availability.

Connector3.5mm3.5mm3.5mm
Frequency558-608 MHz558-608 MHz558-608 MHz
Kit StyleBase--
Signal TypeAnalogAnalogAnalog
Application-Presenter-
Receiver Type-Rack MountRack Mount
Stereo / MonoMono--

About Sennheiser ew 500 FILM G4 Combo Set

What sets the ew 500 FILM G4 Camera-Mount Wireless Combo Microphone System GW1 apart is its unparalleled adaptability and broadcast-quality sound, making it the ideal choice for professional film and video production. This advanced system, operating within the 558 to 608 MHz frequency range, is engineered to deliver high-quality, reliable audio capture in a variety of settings.

Crafted for durability and ease of use, the system includes a robust camera receiver, the EK 500 G4, which boasts a user-friendly menu and a clear backlit LCD display. This display provides essential information such as frequency, battery status, and audio levels, ensuring you stay in control of your recording. The receiver's auto-lock feature prevents accidental setting changes, while the integrated infrared interface allows for seamless synchronization with associated transmitters.

The ew 500 FILM G4 system also features the SK 500 G4 bodypack transmitter, designed for discreet and secure attachment to talent or speakers. Its intuitive interface and backlit LCD ensure quick adjustments, while the mute switch offers on-the-fly audio control. The transmitter's HDX compander system and pilot tone squelch guarantee pristine sound quality and reliable transmission.

For versatility in microphone choice, the SKP 500 G4 plug-on transmitter transforms any wired microphone into a wireless device. It includes a 48V phantom power supply, catering to a wide range of condenser microphones. The plug-on transmitter's adjustable input sensitivity and Audio-XLR-3F connector make it compatible with professional-grade microphones, ensuring high speech intelligibility with the included MKE 2 Gold clip-on microphone.

The ew 500 FILM G4 system's extensive UHF frequency ranges, with up to 72 MHz switching bandwidth, provide flexibility in crowded RF environments. With 20 fixed frequency banks and 6 user banks, each with up to 32 compatible frequencies, this system is designed to find a clear channel no matter the location.

In summary, the ew 500 FILM G4 Camera-Mount Wireless Combo Microphone System GW1 is a professional, high-quality solution for capturing clear, interference-free audio. Its reliable performance, coupled with Sennheiser's reputation for excellence in audio equipment, makes it a top choice for filmmakers and videographers seeking advanced, versatile, and durable wireless audio solutions.

Sennheiser ew 500 FILM G4 Combo Set Features

  • Highly versatile solution for professional film sound: Rugged all-in-one wireless system for professional interviews and recording
  • Professional sound and excellent construction quality
  • Easy to use and fast setup time
  • Easy and flexible wireless synchronisation between transmitter and receiver via infrared
  • Up to 88 MHz bandwidth, up to 32 channels
  • Range: up to 100m (330')
  • Increased RF output power (10/30/50 mW)
  • Up to 8 hours of operation time

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Capture pristine audio with this Sennheiser wireless microphone system for film.
  • Enjoy a wide 558-608 MHz range, ensuring clear, interference-free wireless transmission.
  • The included MKE 2 lavalier microphone delivers exceptional sound quality in any environment.
  • Use the camera-mount receiver for easy integration with your existing video equipment setup.
  • Benefit from up to 8 hours of battery life for extended shooting on location with this microphone.
  • The robust build ensures durability, making this wireless microphone a reliable tool for professionals.

What's in the box:

  • EK 500 G4 Camera Receiver
  • SK 500 G4 Bodypack Transmitter
  • SKP 500 G4 Pro Plug-on Transmitter
  • MKE 2 Lavalier Omnidirectional Microphone
  • 4x AA Batteries
  • CL 13.5 mm Jack Cable
  • CL 500 XLR to 3.5 mm Jack Adapter Cable
  • CA 2 Camera Adapter
  • Fur Windscreen for MKE 2
  • Quick Guide
  • Safety Guide
  • Manufacturer Declaration Sheet
  • Sennheiser 2 Year Limited Warranty
