20% Off

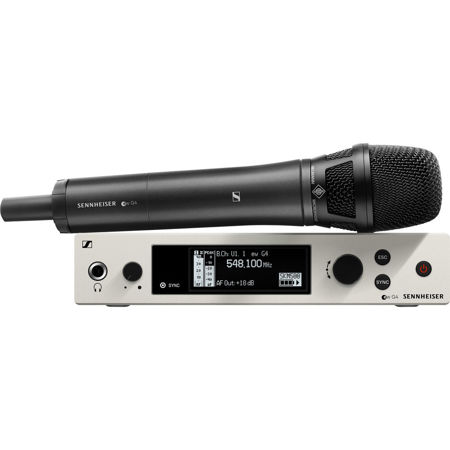

Sennheiser ew 500 G4-KK205 Wireless Vocal Set, Includes SKM 500 G4 Handheld Transmitter, EM 300-500 G4 Receiver and Neumann KK 205 Supercardioid Condenser Capsule, Frequency Band-GW1: 558 to 608 MHz

SKU: SEG4KK205GW1 MFR: EW 500 G4-KK205-GW1
Earn VIP Reward Points

Key Features

  • Experience superior vocal clarity with the Neumann KK 205 supercardioid condenser capsule.
  • Enjoy a reliable wireless connection with a wide 50 MHz switching bandwidth for fewer dropouts.
  • This handheld wireless microphone system is perfect for live performances and presentations.
  • Achieve professional sound quality with Sennheiser's HDX compander technology for crystal-clear audio.
  • The ew 500 G4's true diversity receiver ensures a stable signal, even in challenging environments.
  • Customize your sound with EQ presets on the receiver, optimizing audio for any vocal performance.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$179.99

3 Year

$249.99

5 Year

$489.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Sennheiser ew 500 G4-KK205 Specifications

Receiver

Receiver

Jump to...
  • Modulation

    Wideband FM

  • Frequency Band

    GW1: (558 to 608 MHz)

  • Receiving Frequency

    Maximum 2000 receiving frequencies, adjustable in 25 kHz steps
    20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
    6 frequency banks with up to 32 programmable channels

  • Switching Bandwidth

    Up to 50 MHz

  • Deviation

    Nominal: +/-24 kHz
    Peak: +/-48 kHz

  • Principle of Operation

    True diversity

  • Sensitivity

    < 2.5 MuV for 52 dBA eff S/N (with HDX, peak deviation)

  • Adjacent Channel Selectivity

    Typically >= 75 dB

  • Intermodulation Attenuation

    Typically >= 70 dB

  • Blocking

    >= 75 dB

  • Squelch

    Off, 5 to 25 dB MuV in steps of 2 dB

  • Pilot Tone Squelch

    Can be switched off

  • Antenna Inputs

    2x BNC sockets

  • Compander

    Sennheiser HDX

  • EQ Presets

    Switchable, Act on Line and Monitor Outputs)
    Preset 1: Flat
    Preset 2: Low cut (-3 dB at 180 Hz)
    Preset 3: Low cut/high boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
    Preset 4: High boost (+6 dB at 10 kHz)

  • Signal to Noise Ratio

    Line: >= 115 dBA (1 mV, peak deviation)

  • Total Harmonic Distortion (THD)

    <= 0.9%

  • Maximum AF Output Voltage

    1/4" (6.3mm) Jack Socket: +12 dBu (unbalanced) (at peak deviation, 1 kHz AF)
    XLR Socket: +18 dBu (balanced) (at peak deviation, 1 kHz AF)

  • Output Level Range

    48 dB (3 dB steps)

  • Temperature Range

    14 to 131 deg. F (-10 to 55 deg. C)

  • Power Supply

    12 VDC

  • Current Consumption

    350 mA

Handheld Transmitter

Jump to...
  • Modulation

    Wideband FM

  • Frequency Band

    GW1 (558 to 608 MHz)

  • Receiving Frequency

    Maximum 2000 frequencies, adjustable in 25 MHz steps
    20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
    6 frequency banks with up to 32 programmable channels

  • Switching Bandwidth

    Up to 50 MHz

  • Deviation

    Nominal:+/-24 kHz
    Peak: +/-48 kHz

  • Frequency Stability

    <= +/-15 ppm

  • RF Output Power

    Up to 50 mW Switchable:
    Low: Typical 10 mW
    Standard: Typical 30 mW
    High: Typical 50 mW

  • Pilot Tone Squelch

    Can be switched off

  • Compander

    Sennheiser HDX

  • AF Frequency Response

    80 Hz to 18 kHz

  • Signal to Noise Ratio

    Approximately >= 115 dBA (1 mV, peak deviation)

  • Total Harmonic Distortion (THD)

    <= 0.9%

  • Input Sensitivity Range

    48 dB, adjustable in 6 dB steps

  • Temperature Range

    14 to 131 deg. F (-10 to 55 deg. C)

  • Power Supply

    2 x AA 1.5 V batteries, or BA 2015 accupack

  • Nominal Voltage

    3 V battery / 2.4 V rechargeable battery

  • Current Consumption

    At Nominal Voltage: Typical 180 mA
    With Transmitter Switched Off: <= 25 MuA

  • Operating Time

    Typically 8 hours

Microphone Capsule

Jump to...
  • Directional Pattern

    Supercardioid

  • Frequency Range

    40 Hz - 20 kHz

  • Sensitivity

    2.8 mV/Pa +/- 1 dB approximately equal to -51 dBV
    Note: At 1 kHz into 100KOhms rated load impedance. 1 Pa approximately equal to 94 dB SPL

  • Equivalent Noise Level

    CCIR: 35 dB
    A-Weighted: 24 dB-A
    Note: According to IEC 60268-1; CCIR-weighting according to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS

  • Signal-to-noise ratio

    70 dB

  • Max SPL (0dB=20MuPa)

    150 dB
    Note: THD of microphone amplifier at an input voltage equivalent to the capsule output at the specified SPL

  • Dynamic Range

    >126 dB-A

  • Diameter

    2.16" (5.49cm)

  • Total Length

    10.7" (27.18cm)

General

Jump to...
  • Dimensions

    Receiver (LxWxH): 8.0 x 8.3 x 1.7" (20.32 x 21.08 x 4.32cm)
    Handheld Transmitter (Dia.xL): 2.0 x 10" (5.08 x 25.40cm)

  • Weight

    Receiver: 2.2 lbs (1.00kg)
    Handheld Transmitter: 16 oz (453.59g) including batteries
    Microphone Capsule: Approximately 1.1 lbs (0.50kg)

  • UPC Code

    615104369061

About Sennheiser ew 500 G4-KK205

Become the epitome of sonic excellence and wireless convenience with the ew 500 G4-KK205 Wireless Vocal Set. This premium audio solution merges the legendary engineering of Sennheiser with the unparalleled studio sound of Neumann. Experience the fidelity and clarity of the Neumann KK 205 supercardioid condenser capsule, renowned for its authentic Neumann sound signature. Coupled with Sennheiser's robust G4 wireless technology, this system ensures seamless wireless operation, granting performers and speakers the ultimate freedom on stage.

The ew 500 G4-KK205 set stands out for its exceptional pop protection, minimizing unwanted noise for crystal-clear delivery. Its high feedback resistance is ideal for live environments, ensuring your voice cuts through the mix with precision. With an expansive 50 MHz bandwidth and the capability to manage up to 32 channels, this system offers unparalleled flexibility for any professional audio setup.

The inclusion of an Ethernet connection for the Wireless Systems Manager (WSM) control software is a game-changer for advanced frequency coordination, especially in complex multi-channel scenarios. This feature allows for meticulous management of your wireless network, ensuring stable and interference-free performance.

Designed for durability, the SKM 500 G4 handheld transmitter and EM 300-500 G4 receiver are built to withstand the rigors of touring and frequent use, making this system a reliable choice for professionals who demand the best in audio quality and wireless performance. Whether you're captivating an audience at a concert, delivering a powerful speech at a conference, or broadcasting to listeners worldwide, the ew 500 G4-KK205 Wireless Vocal Set is engineered to elevate your vocal presence.

Sennheiser ew 500 G4-KK205 Features

  • True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Up to 32 compatible channels
  • Up to 50 MHz bandwidth with 2000 selectable frequencies, fully tunable in a stable UHF range
  • Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
  • High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations
  • Neumann KK 205 bk Supercardioid condenser capsule head for Sennheiser wireless systems

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Experience superior vocal clarity with the Neumann KK 205 supercardioid condenser capsule.
  • Enjoy a reliable wireless connection with a wide 50 MHz switching bandwidth for fewer dropouts.
  • This handheld wireless microphone system is perfect for live performances and presentations.
  • Achieve professional sound quality with Sennheiser's HDX compander technology for crystal-clear audio.
  • The ew 500 G4's true diversity receiver ensures a stable signal, even in challenging environments.
  • Customize your sound with EQ presets on the receiver, optimizing audio for any vocal performance.

What's in the box:

  • Sennheiser SKM 500 G4 Wireless Handheld Transmitter
  • EM 300-500 G4 Wireless True Diversity Rackmount Receiver
  • Neumann KK 205 Supercardioid Condenser Microphone Capsule
  • 2x Rod Antennas
  • Power Supply
  • GA 3 Rackmount Kit for G3 100/300/500 Series
  • MZQ1 Microphone Clamp
  • 2x AA Batteries
  • Pouch
  • Neumann 1 Year Limited Warranty
  • Sennheiser 2 Year Limited Warranty
