Review Summary
Slot 1:
1/2 19" (482 mm) 1 U for wireless receiver
DC Connector: hollow jack plug
Input Connector: 1/4" (6.35 mm) jack plug
Input Level: 12 dBu, maximum
Input Impedance: 10 kO
Output Connector: 1x XLR-3M
Output Level: 16 dBu maximum, nominal 4 dBu
Data Connector: RJ 45
Sensitivity: Adjustable
Sound Presets: Speech, Vocal, Flat
Slot 2:
1/2 19" (482 mm) 1 U for wireless receiver
Sensitivity: Adjustable
Sound Presets: Speech, Vocal, Flat
Slot 3:
1/2 19" (482 mm) 1 U for wireless receiver
Sensitivity: Adjustable
Sound Presets: Speech, Vocal, Flat
Combo XLR/TRS Auxiliary Input:
Input Voltage Range XLR: -22 dBu, -2 dBu
Input Voltage Range XLR with 20 dB Switch: -34 dBu nominal, -14 dBu
Input Voltage Range TRS: 4 dBu maximum, -7.5 dBu nominal
Stereo RCA Auxiliary Input:
Input Voltage: 14 dBu maximum, 2 dBu nominal
XLR-3F Link In:
Input Voltage Range: 16 dBu maximum, 4 dBu nominal
XLR-3M Link Output
16 dBu maximum, 4 dBu nominal
A2DP with ATPX for audio streaming
1x USB 2.0 port
Supports MP3, WAV, AAC, FLAC files
Media Recorder: WAV
WLAN connectivity to WLAN access point
Remote Control App for iPad controls up to 20 LSP 500 PRO
IEEE 802.11b/g
2-way, Closed box
1x 8" (203.2mm) woofer
1x 0.75" (19.05mm) compression driver, passive crossover
110 dB SPL (10 % THD, full space)
65 Hz to 18 kHz (-10 dB)
80deg. x 60deg. (-6 dB)
90 - 240 V AC, 50-60 Hz
2x Lithium Ion 14.4 V/4.4 Ah
Approximate 8 hours
Approximate 2.5 hours per battery
32 deg. F- 122 deg. F /0 deg. C - 50deg. C)
Class D Amplifier, 55 W continuous, 120 W peak
Coated plywood
1.42" (36.06mm) Diameter receptacle
11.42 x 21.65 x 12.60" (290.06 x 549.91 x 320.04mm)
Without Wireless Receivers: 30lbs (13.6kg) Approximate
615104239104

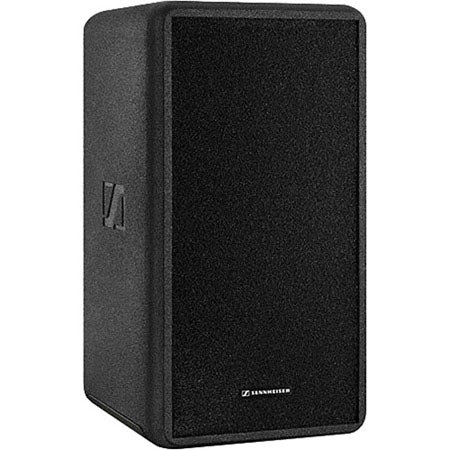

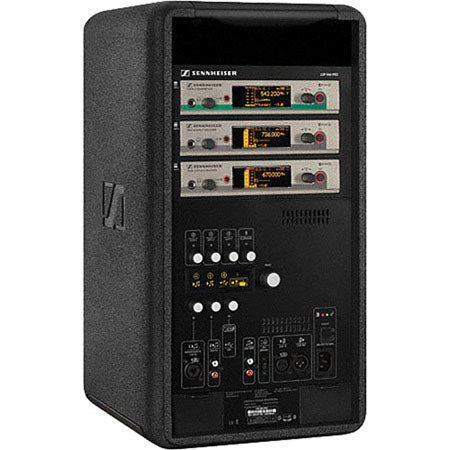

The Sennheiser LSP 500 Pro Self-Powered Wireless PA System is a rechargeable battery powered wireless PA system capable of up to 120-watts of peak output and 55-watts of continuous output. It is scalable to up to 20 units and designed to be controlled by the LSP 500 iPad app via its integrated WLAN connection and an optional wireless router. The unit has 3 rear-panel slots that allow you to integrate up to 3 wireless receivers into the speaker. In addition to the wireless slots, the LSP 500 is Bluetooth enabled and can playback audio from any Bluetooth compatible device. The rear-panel USB 2.0 port provides another input for your digital audio, allowing playback from tracks stored on a flash drive. You can also record the audio routed through the LSP 500 system to a flash drive via USB. The unit also features XLR in and output links for integrating a subwoofer into the system, or connecting multiple units if you do not have access to a wireless router.
Seamless integration. Maximum Effect
Whether rental, corporate-use or conference hotel: Due to its flexibility and sophistication LSP 500 PRO fits a wide variety of applications. The system seamlessly integrates with different Sennheiser components, e.g. ew 500 microphones and receivers, providing state-of-the-art features like automatic frequency management and wireless synchronization. Connect all options setup and operation will be a breeze.
Expanded Options
Drop Cable
Whether big ballroom event or small sales show LSP 500 PRO is set up in a snap by 1 person alone. No cords, no kludges, no compromise.
Powerful & Pad-controlled
Manage every single facet of the jam on the swipe of a finger. Control status, sound and input sources in real time via iPad.
Save Time & Money
Need 2 or 20 speakers LSP 500 PRO is your scalable future proof PA system that fits any situation. Hassle-Free. Easily.
Audio Connectivity
Premium Performance and the pursuit of perfect sound: up to 3 wireless microphone links, music streaming via Bluetooth, Built in music player/recorder for USB devices.
The LSP 500 PRO App
A dramatic upgrade in PA control: LSP 500 PRO's essential features are accessible via iPad. Control single speakers, groups or the whole system at once. Fine-tune individual settings and check the status e.g. of the hot-swappable batteries. Using the App, you'll have everything under remote control, easily manageable on the swipe of a finger.
