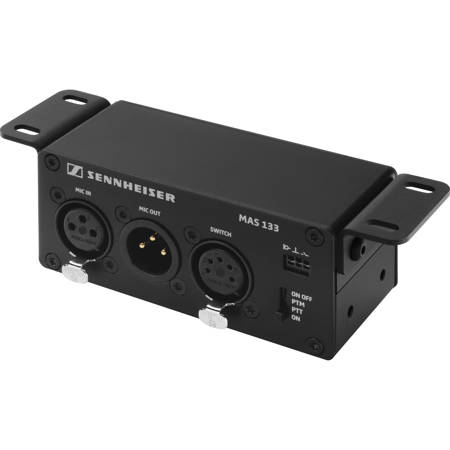

Sennheiser MAS 133 Inline Logic Box with 2x XLR-3 for Mic In/Out and XLR-5 for Control

SKU: SEMAS133 MFR: MAS 133
$169.00
$211.00
Save: $42 (20%)
Earn VIP Reward Points

Key Features

  • Provides stable voltage for consistent microphone performance, every time.
  • Delivers reliable phantom power to your condenser mics for studio-quality sound.
  • Compact size integrates seamlessly into your setup, keeping your workspace tidy.
  • Durable build ensures this power supply withstands the rigors of daily use.
  • Enjoy easy setup with clear instructions; get your microphone powered quickly!
  • Offers versatile microphone modes: toggle, push-to-talk, and permanent on.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$15.99

2 Year

$23.99

3 Year

$35.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?ERIC E : Need this for an install and it appears to work via phantom power.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Sennheiser MAS 133 Specifications

  • Phantom power

    P 48

  • Current consumption

    4.5 mA

  • Connectors

    Mic In - XLR-3F
    Mic Out - XLR-3M
    Switch In - XLR-5F

  • Pin assignment XLR-3M out

    1 = gnd
    2 = +
    3 = -

  • Pin assignment XLR-5F in

    1 = gnd
    2 = Switch
    3 = LED red -
    4 = LED green -
    5 = LEDs + 12 V out

  • Microphone modes

    Toggle on/off
    Push to mute
    Push to talk
    permanent on

  • Connection

    clip contact

  • Pin assignment logic connector

    trigger signal at the logic connector:
    Mic (on/off)
    GND
    Switch (on/off)

  • Logic out

    high level output voltage > 2.4 V
    low level output voltage < 0.4 V

  • Operating temperature

    - 10 deg. to 50 deg. C / 14 deg. to 122 deg. F

  • Dimensions (W x D x H)

    150 x 44 x 44mm / 5.90 x 1.73 x 1.73"

  • Weight

    212g / 7.47oz

  • UPC Code

    615104230484

About Sennheiser MAS 133

Overcome your audio challenges with the Sennheiser MAS 133 Inline Logic Box, a high-quality, durable, and compact solution for integrated microphone systems. This user-friendly and versatile device is designed to be positioned between the microphone and the mixing console, providing power to the MAS 1 microphone button.

The MAS 133 Inline Logic Box is equipped with two XLR-3 inputs, allowing for simultaneous use of two microphones. This feature makes it an ideal choice for recording studios and live performances where multiple microphones are required.

Additionally, the device boasts an XLR-5 input for control, offering the ability to adjust levels and other settings for the connected microphones. This ensures optimal setup and adjustment for superior sound quality, making it a valuable asset for any audio professional.

The MAS 133 also supports switchable microphone modes, including Push-To-Talk (PTT), Push-To-Mute (PTM), toggle on/off, and permanent on. This flexibility allows for seamless control of any XLR-connected microphone.

Moreover, the MAS 133 features TTL logic, enabling the user to trigger camera or media control systems for various purposes. This added functionality further enhances its versatility, making it a comprehensive solution for all your audio needs.

In conclusion, the Sennheiser MAS 133 Inline Logic Box is not just an XLR inline switch box, but a powerful tool that brings control, versatility, and high-quality audio right at your fingertips.

Sennheiser MAS 133 Features

  • Inline switch box for integrated mic solutions
  • Easy microphone activation
  • Switchable microphone modes (PTT, PTM, toggle on/off, permanent on)
  • TTL Logic out for media control

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Provides stable voltage for consistent microphone performance, every time.
  • Delivers reliable phantom power to your condenser mics for studio-quality sound.
  • Compact size integrates seamlessly into your setup, keeping your workspace tidy.
  • Durable build ensures this power supply withstands the rigors of daily use.
  • Enjoy easy setup with clear instructions; get your microphone powered quickly!
  • Offers versatile microphone modes: toggle, push-to-talk, and permanent on.

What's in the box:

  • Sennheiser MAS 133 Inline Logic Box
  • Mounting Material
  • Leaflet
  • Sennheiser 2 Year Limited Warranty
