18% Off

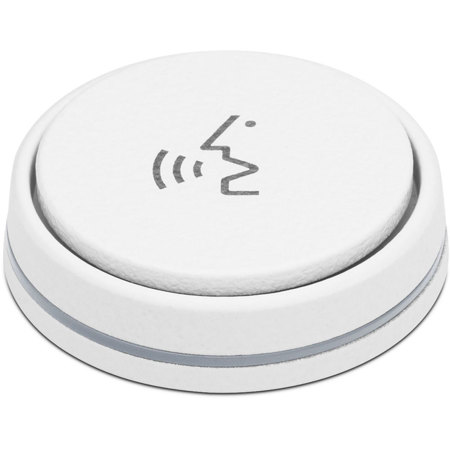

Sennheiser MAS 1 TC Installation Mic Activation Button with 3m / 9.84' Connection Cable, White

SKU: SEMAS1TCW MFR: MAS 1 TC W
$129.95
$159.00
Save: $29.05 (18%)
Earn VIP Reward Points

Key Features

  • Enhance your audio conferencing with the Sennheiser MAS 1 TC installation mic.
  • Enjoy crystal-clear sound quality with this professional-grade conferencing accessory.
  • Easily activate your microphone with the convenient, integrated activation button.
  • Benefit from durable construction ensuring long-lasting performance in any meeting room.
  • The 3m connection cable provides flexible placement options for your setup.
  • The MAS 1 TC is compatible with a wide range of audio systems for easy integration.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$15.99

2 Year

$23.99

3 Year

$35.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Sennheiser MAS 1 TC Specifications

  • Supply voltage

    5 V (12 mA max.)

  • Connector

    XLR-5M

  • Pin Assignment XLR-5M Out

    1=Switch, 2=Switch, 3=LED red -, 4=LED green-, 5=LEDs +5 V in

  • Led Light Ring Color

    Red/green

  • TTL levels for LED activation

    12V

  • Current consumption LED ring

    12 mA

  • Height

    81mm / 3.19" (8mm Above surface)

  • Diameter

    28.5mm / 1.12"

  • Connection cable

    XLR-5F Terminal connector (7-pin)
    Length: 3m / 9.84'

  • Thread

    M20

  • Operating temperature

    -10 to 50 deg. C / 14 to 122 deg. F

  • Weight

    60g / 2.12oz

  • UPC Code

    615104133457

About Sennheiser MAS 1 TC

Elegant and low-key in its appearance, the sturdy MAS 1 TC and MAS 2 TC logic control button makes logic control a breeze. Connected to the SL Mic Hub 1 the buttons can control the logic functions mute and hook. For clear status indication the MAS 1 comes with a bi-color status indicator.

The sturdy logic buttons shall be designed for use with the SL MIC HUB 1 in TeamConnect conferencing applications. A bi-color LED ring shall be provided for status indication. Both buttons shall be connected with a 5-pin XLR cable of approx. 3 m length, terminating in a 7-pin terminal connector (MAS 1 TC) or 6-pin terminal connector (MAS 2 TC). Both buttons shall have an M20 thread. The logic control buttons shall operate on 5V. The TTL levels for LED activation shall be 12V.

Sennheiser MAS 1 TC Features

  • Rugged mute and hook button
  • Unobtrusive and timeless design
  • Bi-color status indication

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Enhance your audio conferencing with the Sennheiser MAS 1 TC installation mic.
  • Enjoy crystal-clear sound quality with this professional-grade conferencing accessory.
  • Easily activate your microphone with the convenient, integrated activation button.
  • Benefit from durable construction ensuring long-lasting performance in any meeting room.
  • The 3m connection cable provides flexible placement options for your setup.
  • The MAS 1 TC is compatible with a wide range of audio systems for easy integration.

What's in the box:

  • Sennheiser MAS 1 TC Installation Mic Activation Button with Cable
  • Mounting Material
  • Leaflet
  • Sennheiser 2 Year Limited Warranty
