Sennheiser MZA900P Phantom Power Adapter with Lockable 3-pin Special Socket
See all Sennheiser items

Sennheiser MZA900P Phantom Power Adapter with Lockable 3-pin Special Socket for Pre-polarized Condensers Microphones and Evolution Wireless

SKU: SEMZA900P4
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Sennheiser MZA900P-4 Specifications

  • Frequency response

    20 - 20,000 Hz (-1 dB)

  • Gain

    0/-12 dB

  • Min. terminating impedance

    5 kOhms (P12 - P48) at 0dB gain; 2 kOhms (P12 - P48) at -12dB gain

  • Operating temperature

    -20 deg. C to 60 deg. C / -4 deg. F to 140 deg. F

  • Output impedance

    100 Ohms

  • Output voltage

    1.8 V (P48), 0.6 V (P12) at 0dB gain

  • Phantom powering

    P12 - P48, 10 - 52V, 2.6 - 2.8mA

  • Dimensions (Dia. x L)

    0.86 x 100mm / 0.03 x 3.93"

  • Weight

    2.1oz (59.53g)

  • UPC Code

    615104122215

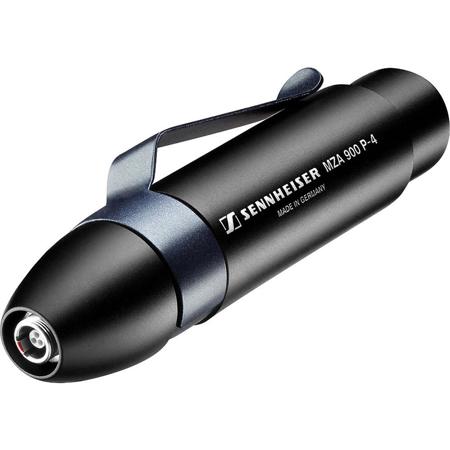

About Sennheiser MZA900P-4

The Sennheiser MZA900P-4 phantom power adapter is used to connect pre-polarized condenser microphones with a 3.5mm jack plug to microphone inputs with 10 - 52 V phantom powering (P12 - P48). The connected microphone is supplied via the adapter. The adapter is also a quick and flexible solution if a microphone is to be used for both wired and wireless applications. One and the same microphone can be used together with the MZA 900 P for wired applications (e.g. in the studio) or with a transmitter of the evolution series for wireless applications. The MZA 900 P can also be used as a cable tester for XLR microphone cables.

Sennheiser MZA900P-4 Features

  • Robust metal chassis
  • Switchable gain (0/-12dB)
  • Switchable roll-off filter (125 Hz (-3 dB), 12 dB/oct)
  • Two-color control LED (phantom power, audio peak)
  • Input 3.5 mm stereo jack socket, lockable
  • Output XLR-3M

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Robust metal chassis
  • Switchable gain (0/-12dB)
  • Two-color control LED (phantom power, audio peak)
  • Input 3.5 mm stereo jack socket, lockable
  • Output XLR-3M

What's in the box:

  • Sennheiser MZA900P-4 Phantom Power Adapter with Lockable 3-pin Special Socket for Pre-polarized Cond
  • Sennheiser 2 Year Warranty
