Sengled 2020-20 Bodypack Tourguide System, Includes SK 2020-D Transmitter, 20x HDE 2020-D-II Receivers, HS2 Head-Worn Microphone & EZL 2020-20L Charging Case

SKU: SENUSTGBDYPK

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Sengled 2020-20 Tourguide System Specifications

Bodypack Transmitter

Bodypack Transmitter

Jump to...
  • Type

    Bodypack

  • RF Frequency Range

    D (926 - 928MHz)

  • Numbers Of Channels

    6

  • Type of Input Connector

    Mic: 3.5mm screw-type socket
    Line-in: 3.5mm screw-type socket

  • Frequency Response

    Mic: 100 - 7000Hz

  • Battery Type/Approx. Life

    10 hours

  • Display

    Backlit

  • Dimensions

    3.3 x 2.5 x 0.9" (82 x 64 x 24mm)

  • Weight

    5.64 oz (160g)

Receiver

Jump to...
  • RF frequency range

    926 - 928 MHz

  • Frequency response (Headphones)

    100 - 7000 Hz

  • Sound pressure level (SPL)

    120 dB SPL

  • THD, total harmonic distortion

    < 1 %

  • Operating temperature

    32 - 122 Degree F (0 - 50 Degree C)

  • Number of channels

    Tourguide mode: 6 in parallel
    Conference mode: 8 in parallel

  • Operating time

    8 h

  • Modulation

    2 FSK

  • Power supply

    830 mAh Lithium-Polymer

  • Dimensions

    9.6 x 4.92 x 0.78" (245 x 125 x 20mm)

  • Weight

    2.57 oz (73g)

Charger Case

Jump to...
  • Charging time

    HDE 2020-D
    < 2,5 h; SK 2020-D / BA 2015 < 3,5 h

  • Power consumption

    Max. 70 W

  • Operating temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Mains voltage

    100-240 VAC (50/60 Hz)

  • Dimensions

    23.6 x 10.6 x 14.9" (600 x 270 x 380mm)

  • Weight

    18.2 lb (8.3kg)

HS2 Microphone

Jump to...
  • Transducer

    Condenser

  • Polar Pattern

    Omnidirectional

  • Frequency Response

    20 Hz to 20 KHz

  • Signal-to-Noise Ratio

    26 dB (A), 39 dB (CCIR 468-3)

  • Maximum Input Sound Level

    142 dB

  • Power Requirements

    18 kOhms / 7.5 V

  • Output Impedance

    1 kOhm

  • Output Connectors

    Locking 1/8" (3.5mm)

  • Pad

    No

  • Low Frequency Roll-Off

    No

  • Dimensions

    0.18" (4.8mm) (diameter)
    Cable Length: 5.25' (1.6m)

  • Weight

    1.21 oz (34.4g)

About Sengled 2020-20 Tourguide System

- SK 2020-D-US Transmitter -
The SK 2020-D-US is ideal for guided tours. Combining the bodypack transmitter with a headworn microphone allows total freedom of movement during a tour. The rugged transmitter offers easy operation and quick configuration. In addition to the microphone input, a line input accommodates external audio sources. The back-lit display confirms channel selection, the RF strength and battery status.


- HDE 2020-D-II Stethoset Receiver -
HDE 2020-D stethoset Tourguide receiver is the comfortable to wear receiver of the digital Tourguide System 2020-D. This truly unique device integrates both the receiver and headphones and delivers a number of advantages for you. No longer will your audience have to carry any more equipment than is absolutely necessary. Being a one piece device, they will no longer risk a tangle of cables! The powerful battery ensures that the device will work for up to 8 hours. Regardless of whether you are providing your tour in a big city or a large corporation, Tourguide 2020-D will ensure that your tour will proceed without interruption.

The stethoset receiver automatically deactivates itself the moment that it is taken off, meaning battery life will be preserved. No longer will the Tourguide need to check all of the sets after one tour finishes and before the next tour starts. Your tour participants will be able to individually adjust the volume through a rotary control on the receiver, without the need to even take the device off. An LC display will clearly confirm the volume, battery status, quality of reception and the channel being listened to. Channels can easily be set and adjusted by using the middle buttons. The reception range is about 100 m if your tour is outdoors and about 50 m if your tour is indoors.


- EZL 2020-20L Charger Case -
The EZL 2020-20L charger case has been designed to be highly user-friendly. It acts as both the storage case for all equipment and charging station for the Tourguide receivers and transmitter. Twenty charging bays for HDE 2020-D or EK 2020-D receivers and two charging bays for the transmitter or its rechargeable battery pack-are provided. Truly impressive feature of the charging case is the Copy button. All you need do is to set one receiver to the correct channel, press this button just once, and all of the other receivers in the case will immediately be set to the same channel.


- HS 2 Headset Microphone -
The HS 2 is a headset microphone with a very robust steel wire cable for connection to wireless bodypack transmitters. It features the omni-directional MKE 2 Gold capsule and meets the highest demands on sound quality and robustness. The condenser microphone can easily be brought into the optimum position by the interplay of the small capsule and a short gooseneck. The HS 2 is equally suitable for voice and speech transmission.

Sengled 2020-20 Tourguide System Features

  • SK 2020-D-US Transmitter Features
  • Digital RF signal transmission
  • Licence free Frequency range
  • Microphone input (3.5 mm screw-type jack socket) with adjustable sensitivity
  • Line input (3.5 mm screw-type jack socket) with adjustable sensitivity
  • Backlit display
  • Status LED's: Mute / Low Battery warning / Peak warning
  • HDE 2020-D-II Stethoset Receiver Features
  • Digital RF signal transmission
  • Licence free Frequency range (EU, US)
  • Stethoset - Integrated headphones
  • Automatic on/off switch
  • Intuitive operating concept
  • Battery status
  • Sturdy housing
  • ELZ 2020-20L Charger Case Features
  • Charging bays for 20 receivers
  • Copy button copies the selected channel of one receiver to all others
  • Fast charging in approx. 2.5 hrs
  • Trickle charge
  • Charging bay for SK 2020-D
  • Charging bay for BA 2015 spare battery
  • Safe recharging with temperature monitoring
  • HS 2 Headset Microphone Features
  • MKE 2 Gold capsule for excellent sound
  • Easy handling and rugged construction
  • Suitable for singers and speakers alike

Key Features

  • SK 2020-D-US Transmitter Highlights
  • Digital RF signal transmission
  • Licence free Frequency range
  • Microphone input (3.5 mm screw-type jack socket) with adjustable sensitivity
  • Line input (3.5 mm screw-type jack socket) with adjustable sensitivity
  • Backlit display

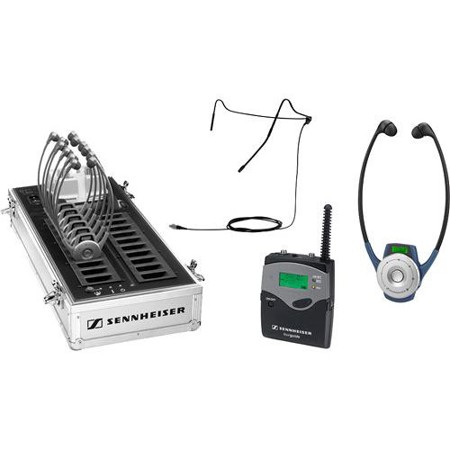

What's in the box:

  • SK 2020-D-US Tourguide Transmitter Bodypack
  • HS2 Head-Worn Microphone (Black)
  • EZL2020-20L Charger Case
  • 20x Stethoset Receiver
  • Sennheiser 2 Year Limited Warranty
