Sennheiser SI 30-3000 Single System Package
See all Sennheiser items

Sennheiser SI 30-3000 Single System Package, Includes SI 30 Two Channel IR Transmitter, 3 SZI 30 Infrared Emitter Panel, KKY20-015 Octopus Power Cable

SKU: SESI303000S
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Sennheiser SI30-3000 Specifications

  • Other Item Includes

    WM1 Wall/Ceiling Mount for 2 or More SI 30 or SZI30
    5 x RI250 Stethophone Receiver for TI250
    L15110NT Charger for ten BA151 Batteries with NT92-120 Power Supply

  • SI 30: Nominal deviation

    +/- 50 kHz

  • SI 30: Modulation

    FM

  • SI 30: Output impedance

    50 Ohm

  • SI 30: Carrier frequencies

    2.3 MHz + 2.8 MHz

  • SI 30: Current consumption

    180 mA

  • SI 30: Operating voltage (mains)

    24-27 V DC

  • SI 30: Input voltage range

    45 mV- 4V

  • SI 30: Effective radiated power

    0.5 W

  • SI 30: IR Diodes

    11

  • SI 30: Max. coverage area

    80 m2

  • SI 30: RF output

    3.5 mm mono

  • SZI 30: Nominal deviation

    +/- 50 kHz

  • SZI 30: Output impedance

    ca. 20 kOhm o. 50 Ohm

  • SZI 30: Carrier frequencies

    6 MHz

  • SZI 30: Current consumption

    150 mA

  • SZI 30: Operating voltage (mains)

    24 - 27 V DC

  • SZI 30: Effective radiated power

    0,5 W

  • SZI 30: IR Diodes

    11

  • SZI 30: Max. coverage area

    80 m2

  • Dimensions

    SI 30: 118 x 25 x 90 mm / 4.64 x 0.98 x 3.54"
    SZI 30: 118 x 25 x 90 mm / 4.64 x 0.98 x 3.54"

  • Weight

    SI 30: 140 g / 4.93oz
    SZI 30: 135 g / 4.76oz

About Sennheiser SI30-3000

The Sennheiser SI 30-3000 System Package includes the crucial components you need for configuring a complete IR system capable of providing coverage in medium-sized rooms up to 3,000 square feet.

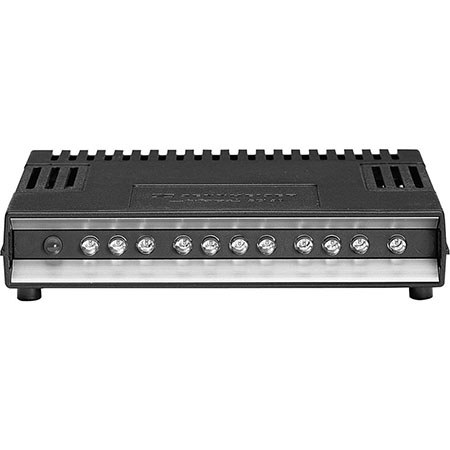

The SI 30 is a small- to medium-area master transmitter that can be switched from 2.3 MHz to 2.8 MHz or used simultaneously for two channel/stereo operation. Utilizing these higher-than-usual subcarrier frequencies, this system avoids the interference generated by electronically-ballasted fluorescent lights. With the capability of covering 750 square feet, the SI 30 can be used with up to three SZI 30 slave emitters for increased coverage. This cost-effective system is ideal for conference rooms, Houses of Worship, courtrooms and similar type rooms up to 3,000 sq. ft.

The SZI 30 is a DC-powered IR emitter designed to be slaved to an SI 20 transmitter to increase the effective coverage area of the SI 20. Up to three SZI 30 units can be added to an SI 20.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Sennheiser SI 30 2-Channel IR Conferencing Wireless Radiator
  • 3 x SZI 30 Slave IR Emitter Panel for SI 20
  • KKY20-015 Octopus Power Cable for Connecting Up to 4 SI 30 or SZI30
  • NT 20-4 Plug-In Mains Unit for SI 30/SZI 30
  • 3 x KR20-015 RF Cable for Connecting SI 30 to SZI30 (4 ")
  • IZM20 Mounting Hardware for Clustering Up to 4 IZK20 Mounting Clamps
  • 4 x IZK 20 Mounting Clamp for SI20 or SI 30 IR Conferencing Modulator
  • Sennheiser 2 Year Limited Warranty (See Specs for More Included Items)
