19% Off

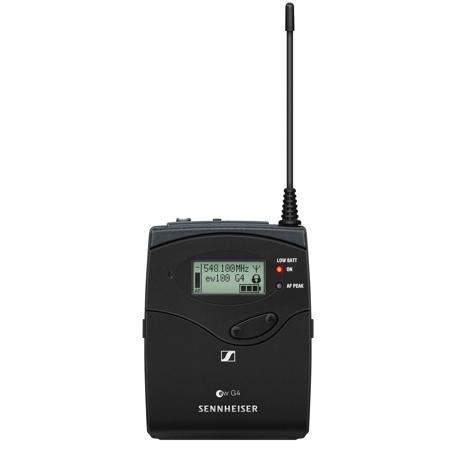

Sennheiser SK 100 G4 Bodypack Transmitter, A: 516 - 558 MHz

SKU: SESK100G4A MFR: SK 100 G4-A
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Sennheiser wireless transmitter.
  • Achieve low latency and reliable connectivity for clear audio transmissions.
  • Enjoy up to 8 hours of battery life, perfect for long events or performances.
  • The bodypack transmitter is easy to use, making setup quick and hassle-free.
  • Operate within a 516-558 MHz frequency range for optimal signal clarity.
  • Capture clear audio for interviews or film with this compact bodypack.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$49.99

3 Year

$59.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Philip P : As an add on to the ew 100 g4-ME3 system

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Sennheiser SK 100 G4 Specifications

RF Characteristics

RF Characteristics

Jump to...
  • Modulation

    Wideband FM

  • Frequency range

    516 - 558 MHz

  • Transmission frequencies

    Max. 1680 receiving frequencies, adjustable in 25 kHz steps
    20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
    1 frequency bank with up to 12 programmable channels

  • Switching bandwidth

    up to 42 MHz

  • Nominal/peak deviation

    +/-24 kHz / +/-48 kHz

  • Frequency stability

    <= +/-15 ppm

  • RF output power at 50 Ohm

    Max. 30 mW

  • Pilot tone squelch

    Can be switched off

  • Compander system

    Sennheiser HDX

AF Characteristics

Jump to...
  • AF frequency response

    Mic: 80 - 18,000 Hz
    Line: 25 - 18,000 Hz

  • Signal-to-noise ratio

    >= 110 dBA (1 mV, peak deviation)

  • Total harmonic distortion (THD)

    <= 0.9 %

  • Max. microphone/line input voltage

    3 V eff

  • Microphone/line input impedance

    40 kOhm, unbalanced / 1 MOhm

  • Input capacitance

    Switchable

  • Setting range for input sensitivity

    60 dB, adjustable in 3 dB steps

Overall Device

Jump to...
  • Temperature range

    14 Degree F to 131 Degree F (-10 Degree C to +55 Degree C)

  • Power supply

    2 AA batteries, 1.5 V or BA 2015 accupack

  • Nominal voltage

    3 V battery / 2.4 V rechargeable battery

  • Current consumption

    at nominal voltage: typ. 180 mA
    with transmitter switched off: <= 25 microA

  • Operating time

    Typically 8 h

  • Dimensions

    Approx. 3.22 x 2.5 x 0.94" (82 x 64 x 24 mm)

  • Weight

    Approx. 0.35 lb (160g) (incl. batteries)

  • UPC Code

    615104363564

About Sennheiser SK 100 G4

Because of its robust construction, the SK 100 G4 Bodypack Transmitter is designed for daily use on stage and is compatible with evolution wireless G4 100 G4 systems. This compact bodypack transmitter is designed to work seamlessly with a corresponding receiver as part of a wireless RF transmission system, offering a wide range of UHF frequency ranges.

The transmitter operates within twelve distinct UHF frequency ranges, including 470 - 516 MHz, 516 - 558 MHz, 520 - 558 MHz, 566 - 608 MHz, 606 - 648 MHz, 626 - 668 MHz, 734 - 776 MHz, 780 - 822 MHz, 823 - 865 MHz, 806 - 810 MHz, 925 - 937.5 MHz, 1785 - 1800 MHz. Each range offers 1,680 transmission frequencies, tunable in precise 25 kHz steps, providing a wide array of options for clear, interference-free transmission.

The SK 100 G4 Bodypack Transmitter features 20 fixed frequency banks, each with up to 12 compatible frequency presets, and an additional user bank with up to 12 user-programmable frequencies. This allows for easy customization and adaptability to various performance environments.

The transmitter is equipped with a backlit LCD display, providing real-time information on the current frequency, frequency bank and channel number, AF level metering, transmission status, lock status, pilot tone transmission, muting function, and battery status. An auto-lock feature is included to prevent accidental changes to settings.

The transmitter parameters can be easily configured in the associated receiver's menu and synchronized with the transmitter via an integrated infrared interface, or directly programmed in the transmitter menu. The device also features a mute switch, which can be set to "AF on/off", "RF on/off", or "Disabled" via the user interface.

Incorporating the Sennheiser HDX compander system and a defeatable pilot tone squelch, the SK 100 G4 Bodypack Transmitter ensures high-quality audio transmission. The audio frequency response ranges from 80 - 18,000 Hz (microphone) or 25 - 18,000 Hz (line), with a signal-to-noise ratio at 1 mV and peak deviation of >= 110 dBA, and total harmonic distortion (THD) of <= 0.9%.

Power is supplied to the transmitter by two 1.5 V AA size batteries or by one Sennheiser BA 2015 rechargeable accupack, with a nominal voltage of 2.4 V for a rechargeable battery or 3 V for a battery. The current consumption is typically 180 mA at nominal voltage. The Sennheiser SK 100 G4 Bodypack Transmitter is a reliable and versatile choice for professional audio transmission needs.

Sennheiser SK 100 G4 Features

  • Robust bodypack transmitter for daily use on stage
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Fast frequency allocation for up to 12 receivers via new linking functionality
  • Up to 20 compatible channels
  • Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
  • Transmission Range: up to 100m (330')
  • High RF output power (up to 30 mW) depending on country regulations

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Experience superior sound quality with this Sennheiser wireless transmitter.
  • Achieve low latency and reliable connectivity for clear audio transmissions.
  • Enjoy up to 8 hours of battery life, perfect for long events or performances.
  • The bodypack transmitter is easy to use, making setup quick and hassle-free.
  • Operate within a 516-558 MHz frequency range for optimal signal clarity.
  • Capture clear audio for interviews or film with this compact bodypack.

What's in the box:

  • SK 100 G4 Bodypack Transmitter
  • 2x AA Batteries
  • Quick Guide
  • Safety Guide
  • Manufacturer Declaration Sheet
  • Sennheiser 2 Year Limited Warranty
