Wideband FM
470 - 558 MHz
Max. 2880 frequencies, adjustable in 25 kHz steps
20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
6 frequency banks with up to 32 programmable channels
Up to 72 MHz
+/-24 kHz / +/-48 kHz
<= +/-15 ppm
Switchable:
Low: typ. 10 mW
Standard: typ. 30 mW
High: typ. 50 mW
Can be switched off
Sennheiser HDX
Mic: 80 18,000 Hz
Line: 25 18,000 Hz
>= 115 dBA (1 mV, peak deviation)
<= 0.9 %
3 V eff
40 kOhm, unbalanced / 1 MOhm
Switchable
60 dB, adjustable in 3 dB steps
14 Degree F to 131 Degree F (-10 Degree C to +55 Degree C)
2 AA batteries, 1.5 V or BA 2015 accupack
3 V battery / 2.4 V rechargeable battery
At nominal voltage:
typ. 180 mA
with transmitter switched off: <= 25 microA
Typically 8 h
Approx. 3.22 x 2.5 x 0.94" (82 x 64 x 24 mm)
Approx. 0.35 lb (160g) (incl. batteries)
615104364257

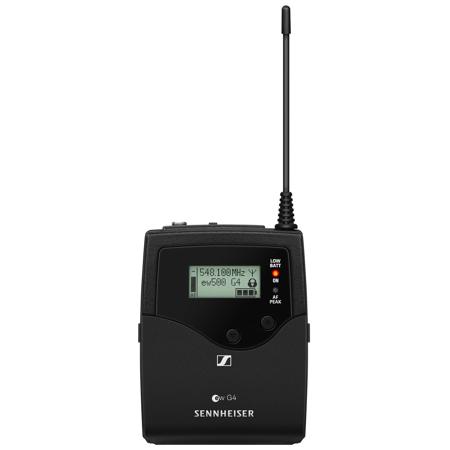

Are you looking for a robust and versatile bodypack transmitter that can handle the demands of the world's largest live stages Look no further than the SK 500 G4 Bodypack Transmitter, a key component of the evolution wireless G4 500 Series systems. This compact yet powerful device offers an impressive range of features designed for professional audio transmission.
The SK 500 G4 operates across ten UHF frequency ranges, providing a broad switching bandwidth of up to 88 MHz within the 470 - 558 MHz spectrum. With 2,880 selectable frequencies per range, fine-tuned in 25 kHz steps, this transmitter ensures precise and flexible frequency matching for your audio needs.
Equipped with 20 fixed frequency banks, each containing up to 32 compatible presets, and 6 user banks with the same number of user-programmable frequencies, the SK 500 G4 guarantees interference-free operation. The intuitive menu-driven interface, complemented by a backlit LCD display, allows for easy monitoring and adjustment of settings such as frequency, bank, channel number, AF level, transmission status, and battery life.
The transmitter's auto-lock feature secures your settings against accidental changes, while the integrated infrared interface enables seamless synchronization with the companion receiver. For added control, the mute switch can be configured for audio or RF muting, or disabled entirely, through the user interface.
Audio quality is uncompromised with the Sennheiser HDX compander system and a defeatable pilot tone squelch. The audio frequency response is broad, ranging from 80 - 18,000 Hz for microphones and 25 - 18,000 Hz for line inputs, ensuring clear and natural sound reproduction. The signal-to-noise ratio is an exceptional >= 115 dBA at 1 mV with peak deviation, and total harmonic distortion (THD) is kept to a minimum.
Powering the SK 500 G4 is convenient and flexible, with options for two 1.5V AA batteries or the Sennheiser BA 2015 rechargeable accupack. The nominal voltage is 2.4 V, with a typical current consumption of 180 mA, ensuring reliable performance throughout your events.
In summary, the Sennheiser SK 500 G4 Bodypack Transmitter is an essential tool for audio professionals seeking reliable, high-quality RF transmission. Its extensive features and robust design make it the perfect choice for use in complex, multi-channel setups in live performance environments.
