22% Off

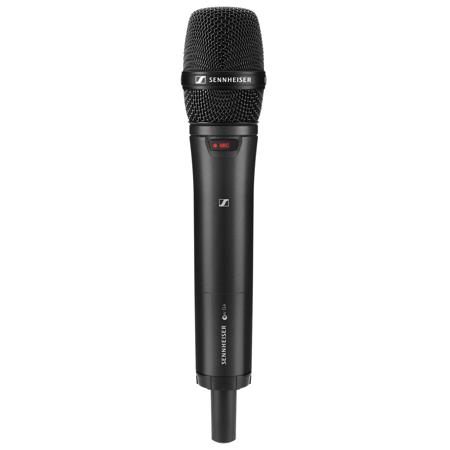

Sennheiser SKM 300 G4-S Handheld Transmitter with Mute Switch (Mic Capsule Not Included), GW1: 558 - 608 MHz

SKU: SESKM3G4SGW1 MFR: 509788
Earn VIP Reward Points

Key Features

  • Enhance your sound with this Sennheiser handheld transmitter for clear audio.
  • Ensure durability with robust construction, designed for reliable performance.
  • Enjoy wide compatibility; works seamlessly with SKM 1xx, 3xx, and 5xx transmitters.
  • Minimize noise with a pilot tone squelch, switchable for optimal clarity.
  • Experience ease of use with adjustable sensitivity, set in 6 dB increments.
  • Get great value from a trusted brand, offering top-tier wireless microphone parts.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Compatibility
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Sennheiser SKM 300 G4-S Specifications

RF Characteristics

RF Characteristics

Jump to...
  • Modulation

    Wideband FM

  • Frequency range

    558 - 608 MHz

  • Transmission frequencies

    Max. 2880 frequencies, adjustable in 25 kHz steps
    20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
    6 frequency banks with up to 32 programmable channels

  • Switching bandwidth

    Up to 72 MHz

  • Nominal/peak deviation

    +/-24 kHz / +/-48 kHz

  • Frequency stability

    <= +/-15 ppm

  • RF output power at 50 Ohm

    Switchable:
    Low: typ. 10 mW
    Standard: typ. 30 mW
    High: typ. 50 mW

  • Pilot tone squelch

    Can be switched off

AF Characteristics

Jump to...
  • Compander system

    Sennheiser HDX

  • AF frequency response

    80 - 18,000 Hz

  • Signal-to-noise ratio

    (1 mV, peak deviation) >= 115 dBA

  • Total harmonic distortion

    (THD)<= 0.9 %

  • Setting range for input sensitivity

    48 dB, adjustable in 6 dB steps

Overall Device

Jump to...
  • Temperature range

    14 Degree F to 131 F (-10 Degree C to +55 Degree C)

  • Power supply

    2 AA batteries, 1.5 V or BA 2015 accupack

  • Nominal voltage

    3 V battery / 2.4 V rechargeable battery

  • Current consumption

    At nominal voltage: typ. 180 mA
    With transmitter switched off: <= 25 micro A

  • Operating time

    Typically 8 h

  • Dimensions

    Approx. diameter 1.96 x 10.4" (50 x 265mm)

  • Weight

    Approx. 0.99 lb (450g) (incl. batteries)

  • UPC Code

    615104369009

Designed For Use With:

  • SKM 1xx 3xx and 5xx Transmitters

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

Models
Sennheiser SKM 300 G4-S Handheld Transmitter with Mute Switch, GW1: 558-608 MHz
$369.00

$474.00

Save:$105.00 (22%)

Ships from Manufacturer

Usually ships within 3-7 Days. Delivery is subject to availability.

Sennheiser SKM 500 G4 Handheld Transmitter, GW1: 558 - 608 MHz
$399.95

$499.95

Save:$100.00 (20%)

Ships from Manufacturer

Usually ships within 3-7 Days. Delivery is subject to availability.

Sennheiser SKM 100 G4 Handheld Transmitter, A1: 470 - 516 MHz
$299.95

$369.95

Save:$70.00 (19%)

Ships from Manufacturer

Usually ships within 3-7 Days. Delivery is subject to availability.

CompatibilitySKM 1xx 3xx and 5xx TransmittersSKM 1xx 3xx and 5xx TransmittersSKM 1xx 3xx and 5xx Transmitters
Accessory TypeMicrophone BodyMicrophone BodyMicrophone Body

About Sennheiser SKM 300 G4-S

Powerful handheld transmitter with a lightweight aluminum housing, increased bandwidth and transmission power, and integrated mute switch for evolution wireless G4 300 Series systems, delivering exceptional speech intelligibility in Business and Education.

Architect's Specification
The handheld transmitter is for use with a companion receiver as part of a wireless RF transmission system.

The handheld transmitter operates within ten UHF frequency ranges, with a switching bandwidth of up to 88 MHz:470 - 558 MHz, 520 - 558 MHz, 558 - 608 MHz, 558 - 626 MHz, 606 - 678 MHz, 626 - 698 MHz, 718 - 790 MHz, 790 - 865 MHz, 806 - 810 MHz, 925 - 937.5 MHz; transmission frequencies is 2,880 per range and shall be tunable in 25 kHz steps. The handheld transmitter features 20 fixed frequency banks with up to 32 compatible frequency presets and 6 user banks with up to 32 user programmable frequencies.

The handheld transmitter is menu-driven with a backlit LCD display showing the current frequency, frequency bank and channel number, metering of AF level, transmission status, lock status, pilot tone transmission, muting function, and battery status. An auto-lock feature is provided to prevent settings from being accidentally altered.

The handheld transmitter parameters are programmable in the handheld transmitter menu. Receiver parameters such as receiving frequency, receiver name and pilot tone setting are synchronizable with the handheld transmitter via an integrated infrared interface.

The handheld transmitter is with a mute switch, which is switchable between "AF on/off", "RF on/off", "Push to mute", "Push to talk" and "Disabled" via the user interface.

Nominal/peak deviation is +/-24 kHz/ +/-48 kHz. Frequency stability is <= +/-15 ppm. RF output power at 50 Ohm is switchable between 10 mW (typical, low) and 30 mW (typical, standard) and 50 mW (typical, high).

The handheld transmitter incorporates the Sennheiser HDX compander system and a defeatable pilot tone squelch. Audio frequency response ranges from 80 - 18,000 Hz. Signal-to-noise ratio at 1 mV and peak deviation is >= 115 dBA. Total harmonic distortion (THD) is <= 0.9 %. Input sensitivity is adjustable within a 48 dB range in steps of 6 dB.

Power is supplied to the handheld transmitter by two 1.5V AA size batteries or by one Sennheiser BA 2015 rechargeable accupack. Nominal voltage is 2.4 V, current consumption is typical 180 mA at nominal voltage; <= 25 micro A when handheld transmitter is switched off. Operating time is typical 8 hours. The handheld transmitter has a rugged metal housing; dimensions are approximately 50 mm (1.97") in diameter and 265 mm (10.43") in length. Weight including the batteries is approximately 450 grams (0.99 lbs).

Operating temperature ranges from -10 Degree C to +55 Degree C (+14 Degree F to +131 Degree F). A range of microphone heads are available for the handheld transmitter.

The handheld transmitter is the Sennheiser SKM 300 G4-S.

Sennheiser SKM 300 G4-S Features

  • Powerful handheld transmitter with a lightweight aluminum housing for use with the renowned e 865 capsule (recommended)
  • Easy to use, fast setup time
  • Integrated network port allows control, monitoring and setup via Sennheiser Control Cockpit and WSM Software
  • Broad range of products and existing accessories (such as microphones) allows usage in any kind of environment
  • Up to 88 MHz bandwidth, up to 32 channels
  • Increased RF output power (10/30/50 mW)
  • Transmission Range: up to 100m (330')
  • Compatible with wireless speaker system LSP 500 PRO
  • RC (remote control) switch available for the bodypack transmitter

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Enhance your sound with this Sennheiser handheld transmitter for clear audio.
  • Ensure durability with robust construction, designed for reliable performance.
  • Enjoy wide compatibility; works seamlessly with SKM 1xx, 3xx, and 5xx transmitters.
  • Minimize noise with a pilot tone squelch, switchable for optimal clarity.
  • Experience ease of use with adjustable sensitivity, set in 6 dB increments.
  • Get great value from a trusted brand, offering top-tier wireless microphone parts.

What's in the box:

  • SKM 300 G4-S Handheld Transmitter
  • MZQ 1 Microphone Clamp
  • 2x AA Batteries
  • Pouch
  • Quick Guide
  • Safety Guide
  • Manufacturer Declaration Sheet
  • (Mic Capsule Not Included)
  • Sennheiser 2 Year Limited Warranty
