Sennheiser SL Interpreter Audio Control Center for Tourguide 2020 or 1039 System
See all Sennheiser items

Sennheiser SL Interpreter Audio Control Center for Tourguide 2020 or 1039 System

SKU: SESLINTRPRTR
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Sennheiser SL Interpreter Audio Control Center for Tourguide 2020 or 1039 System Specifications

  • Floor In

    3-pin XLR female jack, balanced (or unbalanced) input with 24kOhm differential input impedance, maximum balanced input is +19dBu

  • Link In / Out

    Cat 5 8p8c RJ45 female receptacle, distributes balanced line level Floor and Relay audio to another SL Interpreter

  • XLR Microphone Inputs

    3-pin XLR female jack, balanced (or unbalanced) input. Switchable 12VDC simplex power. Variable gain of 58dB, 2.4kOhm balanced input impedance, maximum balanced input is +19 dBu

  • 3.5mm Microphone Inputs

    Stereo 3.5mm TRS phone jack, pink and stereo 3.5mm TRRS phone jack, black, unbalanced (r, s) for electret condenser mics, variable gain of 40dB. Bias is 3.7VDC through 2.7kOhm

  • 3.5mm TRRS Headphone Output

    3.5mm TRRS phone jack, Tip = Left, Ring 1 = Right, Ring 2 = GND, Sleeve = Mic. 40mW maximum power into 32Ohm stereo headset

  • 3.5mm Headphone Output

    3.5mm TRS phone jack, mono or stereo headphone, 8Ohm minimum. 190mW maximum power into 32Ohm stereo headset

  • CH1 Out, CH2 Out

    3-pin XLR male jack, balanced output. Maximum output is +19dBu into 600Ohm balanced load impedance

  • RCA Jacks

    Red: RCA jack for recording and CH1 audio, Interpreter audio only, no feedthrough
    White: RCA jack for recording CH2 audio

  • Volume

    Left and Right rotary, controls headphone volume

  • Bass and Treble Tone

    Left and right rotary with center detent, controls headphone bass and treble tone levels

  • Mute

    Push button, backlit red, mutes left and right mics while pressed

  • Microphone On

    Push button, backlit bright red, activates microphone. Right and left Mic On buttons are inter-locked; Mic can only be turned on if the other is off

  • Floor Input, Relay Input

    Push buttons, backlit blue, select listening language group. Listening modes are either/or: turning one on disables the other

  • CH2 Output

    Push button, backlit yellow, selects microphone output language group: light on = CH2 Out, light off = CH1 Out

  • Gain Adjust

    Rotary gain pots control level of microphone and Floor audio

  • Phantom Power

    Slide switch enables 12VDC Simplex power to XLR microphone

  • CH1 Feedthrough

    Slide switch enables Floor feedthrough to CH1 Out XLR jack

  • CH2 Feedthrough

    Slide switch enables Floor feedthrough to CH2 Out XLR jack

  • Ground Lift

    Slide switch disconnects Chassis and Audio Grounds internal to the console

  • Peak Level Indicator

    Green LED on back panel indicates optimal audio output level on Norm Out XLR when blinking

  • CH2 Output in Use Indicator

    Yellow LED on front panel indicates when CH2 is in use

  • Frequency Response

    45Hz to 20kHz, +0/-3dB re: 1kHz with flat bass/treble

  • Distortion at 1kHz

    <0.5% THD at full power

  • Signal to Noise Ratio

    >82dB at 1kHz

  • Crosstalk Attenuation

    >63dB at 1kHz

  • Tone Controls

    Bass: +12dB Boost or -12dB Cut at 100Hz
    Treble: +12dB Boost or -12dB Cut at 10kHz

  • Dimensions

    10 x 6.35 x 2.45" / 25.40 x 16.13 x 6.22cm

  • Weight

    3.4lbs / 1.54kg

  • UPC Code

    615104257542

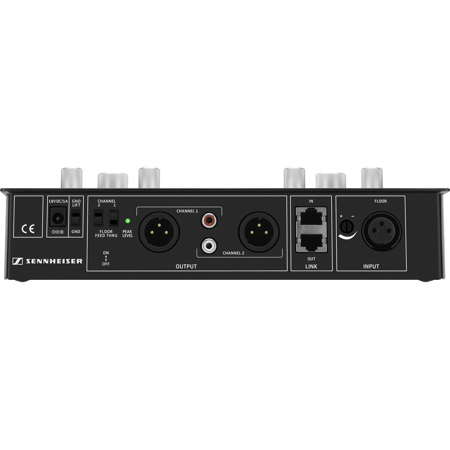

About Sennheiser SL Interpreter Audio Control Center for Tourguide 2020 or 1039 System

The SL Interpreter perfectly completes either the Tourguide 2020 or the Tourguide 1039 portfolio to create a compact, quick to install and easy to use interpretation setup for presentation-style conferences or events alike. The SL Interpreter is a compact and stand-alone audio control center for simultaneous interpretation of one or more languages. It allows one or two interpreters to monitor floor or relay sources, activate microphone inputs and route the interpretation signal to different outputs. Ideal for presentation-style conferences, where a floor and a single relay language are used. Recommended to be used with Sennheiser Tourguide 2020 or 1039.

Sennheiser SL Interpreter Audio Control Center for Tourguide 2020 or 1039 System Features

  • Stand-alone interpreter console - no need for external equipment
  • Easy to use
  • Up to 4 consoles can be cascaded for translation into multiple languages
  • Individual volume and tone controls for 2 interpreters
  • Easy cascading of up to 4 consoles with Cat 5 cable
  • Floor language feed-through
  • Multiple microphone and headset options

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Sennheiser SL Interpreter
  • Power Supply
  • Cat5 Link Cable
  • Manual
  • Safety Guide
  • Sennheiser 2 Year Limited Warranty
