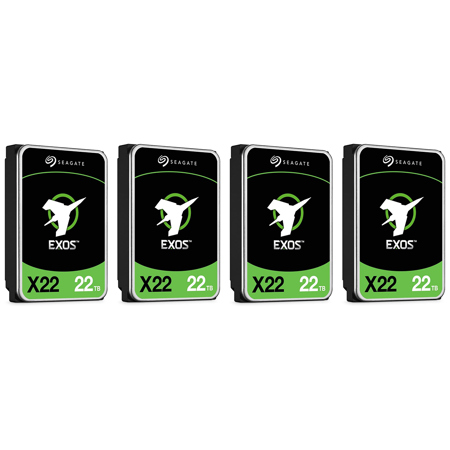

Seagate Exos X22 3.5" Internal Hard Drive 22TB 4-Pack SATA III 6 Gb/s
See all Seagate items

Seagate Exos X22 3.5" Internal Hard Drive 22TB 4-Pack SATA III 6 Gb/s

SKU: SEST220NM01A MFR: ST22000NM001E A
Be the first to review this item
$1,699.96
OR
$142/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Boost your server's storage with this 22TB Seagate Exos X22 internal hard drive.
  • Experience rapid data access with the 7200 RPM spindle speed for efficient workflows.
  • Ensure data integrity with a robust 2,500,000 MTBF, minimizing potential downtime.
  • Optimize performance with PowerBalance tech, tailoring power use to your workload needs.
  • Enjoy long-term reliability with CMR recording, perfect for demanding business tasks.
  • Rely on enterprise-class performance with advanced error correction, safeguarding your data.
See More Product Details
Temporarily On Backorder?Expected Availability: 02/2026Request assistance or get notified
Free Shipping

See Options

1
Add to ListGet Sale Alert

Add Adorama Protect:

Available to U.S. customers only.
1-Year Adorama Protect$179.00
2-Year Adorama Protect$289.00
3-Year Adorama Protect$449.00

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the Exos X22 3.5" Internal Hard Drive designed for?

The Exos X22 is designed for a variety of applications, including scalable hyperscale applications, cloud data centers, big data applications, high-capacity density RAID storage, mainstream enterprise external storage arrays, and centralized surveillance systems.

What security measures does the Exos X22 3.5" Internal Hard Drive have?

The Exos X22 is safeguarded with Seagate Secure, offering an unparalleled level of data protection and security.

What makes the Exos X22 3.5" Internal Hard Drive stand out in the market?

The Exos X22 stands out due to its powerful performance, proven technology, scalable design, and extreme capacity. It's built on a platform that's shipped millions globally and is deployed in leading cloud service provider solutions.

What backup and restore applications is the Exos X22 3.5" Internal Hard Drive suitable for?

The Exos X22 is a reliable solution for enterprise backup and restore applications, including D2D and virtual tape.

Can the Exos X22 3.5" Internal Hard Drive be used for surveillance systems?

Yes, the Exos X22 is an excellent choice for centralized surveillance systems, providing ample storage for high-resolution video data.

Reviews about this item

Review Summary

Seagate Exos X22 3.5" Internal Hard Drive Specifications

General

General

Jump to...

  • Capacity

    22TB

  • Available Interface

    SAS III 12 Gb/s, SATA III 6 Gb/s

Features

Jump to...

  • Helium Sealed-Drive Design

    Yes

  • Conventional Magnetic Recording (CMR)

    Yes

  • Protection Information (T10 DIF)

    SAS III 12 Gb/s: Yes
    SATA III 6 Gb/s: No

  • Super Parity

    Yes

  • Low Halogen

    Yes

  • PowerChoice Idle Power Technology

    Yes

  • PowerBalance/Performance Technology

    Yes

  • Hot-Plug Support

    Yes

  • Cache, Multisegmented (MB)

    512

  • Organic Solderability Preservative

    Yes

  • RSA 3072 Firmware Verification (SD&D)

    Yes

Reliability/Data Integrity

Jump to...

  • Mean Time Between Failures (MTBF, hours)

    2,500,000hr

  • Reliability Rating

    0.35% (@ Full 24 x7 Operation (AFR))

  • Nonrecoverable Read Errors per Bits Read

    1 sector per 10E15

  • Power-On Hours per Year (24 x7)

    8760

  • 512e Sector Size (Bytes per Sector)

    SAS III 12 Gb/s: 512, 520, 528
    SATA III 6 Gb/s: 512

  • 4Kn Sector Size (Bytes per Sector)

    SAS III 12 Gb/s: 4096, 4160, 4224
    SATA III 6 Gb/s: 4096

Performance

Jump to...

  • Spindle Speed (RPM)

    7200RPM

  • Interface Access Speed (Gb/s)

    SAS III 12 Gb/s: 12.0, 6.0, 3.0
    SATA III 6 Gb/s: 6.0, 3.0

  • Max. Sustained Transfer Rate OD

    285/272 (MB/s, MiB/s)

  • Random Read/Write 4K QD16 WCD (IOPS)

    168/550

  • Average Latency (ms)

    4.16ms

  • Interface Ports

    SAS III 12 Gb/s: Dual
    SATA III 6 Gb/s: Single

  • Rotation Vibration @ 20-1500 Hz

    12.5 (rad/sq. sec)

Power Consumption

Jump to...

  • Idle A (W) Average

    SAS III 12 Gb/s: 5.5W
    SATA III 6 Gb/s: 5.74W

  • Max Operating, Random Read/Write

    SAS III 12 Gb/s: 9.8, 7.0 (4K/16Q (W))
    SATA III 6 Gb/s: 9.4, 6.4 (4K/16Q (W))

  • Power Supply Requirements

    +12 V and +5 V

Environmental

Jump to...

  • Temperature, Operating

    SAS III 12 Gb/s: 50 Degree F- 140 Degree F (10 Degree C - 60 Degree C)
    SATA III 6 Gb/s: 41 Degree F - 140 Degree F (5 Degree C - 60 Degree C)

  • Vibration, Nonoperating: 2 to 500Hz

    2.27 (Grms)

  • Shock, Operating 2ms (Read/Write) (Gs)

    40Gs

  • Shock, Nonoperating, 2ms (Gs)

    200

Physical

Jump to...

  • Dimensions (H x W x D)

    1.02 x 4.01 x 5.78" (26.11 x 101.85 x 147mm)

  • Weight

    1.49 lbs (680g)

Other

Jump to...

  • UPC Code

    763649171059

About Seagate Exos X22 3.5" Internal Hard Drive

Powerful performance. Proven technology. Scalable design
Powerful performance with proven technology-Seagate's Exos X22 drives are built off the platform that's shipped millions globally and deployed in leading cloud service provider solutions-making them the most sought-after drives in our data sphere. Designed with the highest rack-space efficiency and protected with Seagate Secure, Exos X22 offers extreme market-leading capacity, earning customer confidence by delivering trusted peace of mind.

Best-Fit Applications
• Scalable hyperscale applications/cloud data centers
• Massive scale-out data centers
• Big data applications
• High-capacity density RAID storage
• Mainstream enterprise external storage arrays
• Distributed file systems, including
• Hadoop and Ceph
• Enterprise backup and restore- D2D, virtual tape
• Centralized surveillance

Seagate Exos X22 3.5" Internal Hard Drive Features

  • Maximum Storage Capacity for Highest Rack Space Efficiency
  • Market-leading 22TB HDD offering the highest capacity available for more petabytes per rack
  • Highly reliable performance with enhanced caching-making it the logical choice for cloud data center and massive scale-out data center applications
  • Hyperscale SATA model tuned for large data transfers and low latency
  • PowerBalance feature optimizes watts per TB
  • Maximize total cost of ownership savings through lower power and weight with helium-sealed drive design
  • Proven helium side-sealing weld technology for added handling, robustness, and leak protection
  • Digital environmental sensors to monitor internal drive conditions for optimal operation and performance
  • Data protection and security-featuring Seagate Secure for safe, affordable, fast, and easy drive retirement
  • Proven enterprise-class reliability backed by a 2.5M-hr MTBF rating

Warranty Information

This product has a limited warranty of 60 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Boost your server's storage with this 22TB Seagate Exos X22 internal hard drive.
  • Experience rapid data access with the 7200 RPM spindle speed for efficient workflows.
  • Ensure data integrity with a robust 2,500,000 MTBF, minimizing potential downtime.
  • Optimize performance with PowerBalance tech, tailoring power use to your workload needs.
  • Enjoy long-term reliability with CMR recording, perfect for demanding business tasks.
  • Rely on enterprise-class performance with advanced error correction, safeguarding your data.

What's in the box:

  • Seagate Exos X22 3.5" Internal Hard Drive
  • Seagate 5 Year Limited Warranty
