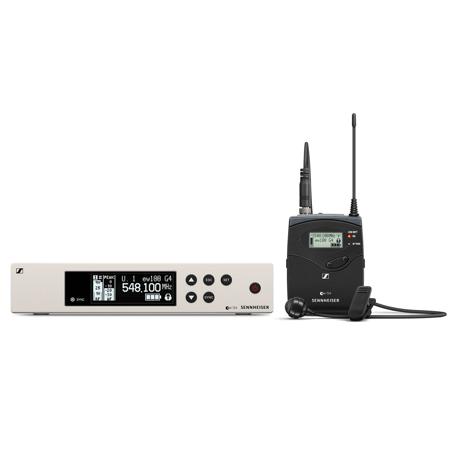

Sennheiser ew 100 G4-ME4 Wireless Lavalier Set, Bodypack Transmitter, ME 4 Lav Cardioid Mic, G: 566 - 608 MHz

SKU: SEW100G4ME4G MFR: EW 100 G4-ME4-G
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this Sennheiser wireless lavalier microphone system, ideal for interviews.
  • Enjoy exceptional sound quality and reliable performance with the ME 4 cardioid lavalier microphone.
  • Achieve clear and consistent audio for film, broadcast, or stage with this wireless microphone set.
  • Experience freedom of movement with a bodypack transmitter offering up to 8 hours of battery life.
  • Ensure seamless connectivity with a true diversity receiver minimizing dropouts for uninterrupted audio.
  • Confidently record with a wide frequency range (566-608 MHz) minimizing interference for clear sound.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Sennheiser ew 100 G4-ME4 Specifications

Receiver: RF Characteristics

Receiver: RF Characteristics

Jump to...
  • Modulation

    Wideband FM

  • Frequency range

    566 - 608 MHz

  • Receiving frequencies

    Max. 1680 receiving frequencies, adjustable in 25 kHz steps
    20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
    1 frequency bank with up to 12 programmable channels

  • Switching bandwidth

    Up to 42 MHz

  • Nominal/peak deviation

    +/-24 kHz / +/-48 kHz

  • Receiver principle

    True diversity

  • Sensitivity (with HDX, peak deviation)

    < 2.5 micro V for 52 dBA eff S/N

  • Adjacent channel selection

    Typically >= 65 dB

  • Intermodulation attenuation

    Typically >= 65 dB

  • Blocking

    >= 70 dB

  • Squelch

    low: 5 dB microV
    middle: 15 dBmicroV
    high: 25 dBmicro V

  • Pilot tone squelch

    Can be switched off

  • Antenna inputs

    2 BNC sockets

Receiver: AF Characteristics

Jump to...
  • Compander system

    Sennheiser HDX

  • EQ presets

    (switchable, act on line and monitor outputs)
    Preset 1: Flat
    Preset 2: Low Cut (-3 dB at 180 Hz)
    Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
    Preset 4: High Boost (+6 dB at 10 kHz)

  • Signal-to-noise ratio

    (1 mV, peak deviation) >= 110 dBA

  • Total harmonic distortion (THD)

    <= 0.9 %

  • AF output voltage

    (at peak deviation, 1 kHz AF) 6.3 mm jack socket
    (unbalanced): +12 dBu XLR socket
    (balanced): +18 dBu

  • Setting range "AF Out"

    48 dB (3 dB steps)

Receiver: Overall Device

Jump to...
  • Temperature Range

    14 Degree F to 131 Degree F (-10 Degree C to +55 Degree C)

  • Power supply

    12 V DC

  • Current consumption

    300 mA

  • Dimensions

    Approx. 7.48 x 8.34 x 1.69" (190 x 212 x 43mm)

  • Weight

    Approx. 2.16 lb (980g)

Transmitter: RF Characteristics

Jump to...
  • Modulation

    Wideband FM

  • Frequency range

    566 - 608 MHz

  • Transmission frequencies

    Max. 1680 receiving frequencies, adjustable in 25 kHz steps
    20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
    1 frequency bank with up to 12 programmable channels

  • Switching bandwidth

    Up to 42 MHz

  • Nominal/peak deviation

    +/-24 kHz / +/-48 kHz

  • Frequency stability

    <= +/-15 ppm

  • RF output power at 50 Ohm

    Max. 30 mW

  • Pilot tone squelch

    Can be switched off

Transmitter: AF Characteristics

Jump to...
  • Compander system

    Sennheiser HDX

  • AF frequency response

    Mic: 80 - 18,000 Hz
    Line: 25 - 18,000 Hz

  • Signal-to-noise ratio

    (1 mV, peak deviation) >= 110 dBA

  • Total harmonic distortion (THD)

    <= 0.9 %

  • Max. input voltage

    3 V eff

  • Input impedance

    40 kOhm, unbalanced / 1 Mohm

  • Input capacitance

    Switchable

  • Setting range for input sensitivity

    60 dB, adjustable in 3 dB steps

Transmitter: Overall Device

Jump to...
  • Temperature Range

    14 Degree F to 131 Degree F (-10 Degree C to +55 Degree C)

  • Power supply

    2 AA Batteries, 1.5 V or BA 2015 accupack

  • Nominal voltage

    3 V battery / 2.4 V rechargeable battery

  • Current consumption

    At nominal voltage: typ. 180 mA
    With transmitter switched off: <= 25 micro A

  • Operating time typically

    8 h

  • Dimensions

    Approx. 3.22 x 2.51 x 0.94" (82 x 64 x 24mm)

  • Weight

    Approx. 5.64 oz (160g) (include batteries)

ME 4 Lavalier

Jump to...
  • Transducer principle

    pre-polarized condensor microphone

  • Pick-up pattern

    Cardioid

  • Sensitivity (free field, no load)

    40 mV/Pa (1 kHz)

  • Max. SPL at 1 kHz

    120 dB

  • Frequency response

    50 to 18,000 Hz

  • Equivalent noise level A-weighted

    31 dB (DIN IEC 651)

  • Connector

    3.5 mm jack

  • Cable length

    Approx. 1.60 m

  • Supply voltage

    7.5 V

  • UPC Code

    615104366442

About Sennheiser ew 100 G4-ME4

Enhance your audio recording and transmission experience with the ew 100 G4-ME4 Wireless Lavalier Set. This professional-grade set, designed for those who sing, speak, or play instruments, offers a robust bodypack transmitter and a high-quality ME 4 lav cardioid mic. Operating within twelve UHF frequency ranges, this set provides a stable UHF range and a tuning bandwidth of up to 42 MHz, ensuring clear and uninterrupted audio transmission.

The bodypack transmitter and unobtrusive ME 4 cardioid microphone are designed for easy, hands-free operation on any stage, making them ideal for live performances, broadcast, and film production. The system operates within a frequency range of 566-608 MHz, offering fast, simultaneous setup of up to 12 linked systems.

The receiver of this wireless lavalier set is menu-driven with a backlit LCD display, showing essential information such as current frequency, frequency bank and channel number, RF level metering, AF level metering, lock status, pilot tone evaluation, muting function, and battery status of the associated transmitter. An auto-lock feature is included to prevent accidental alteration of settings.

The receiver also features an integrated guitar tuner and sound check mode. It provides a balanced XLR-3M audio output and an unbalanced 1/4" audio output, ensuring compatibility with a variety of audio equipment. The receiver has two DATA ports to set up a multichannel system and two BNC-type input sockets for connecting antennas.

The transmitter is also menu-driven with a backlit LCD display, showing the current frequency, frequency bank and channel number, AF level metering, transmission status, lock status, pilot tone transmission, muting function, and battery status. It incorporates the Sennheiser HDX compander system and a defeatable pilot tone squelch for enhanced audio quality.

This wireless lavalier set is powered by two 1.5 V AA size batteries or one Sennheiser BA 2015 rechargeable accupack, offering flexibility and convenience for users. With its durable and reliable design, the ew 100 G4-ME4 Wireless Lavalier Set is a perfect choice for professionals seeking a comprehensive wireless audio solution.

Sennheiser ew 100 G4-ME4 Features

  • Engineered for professional live sound: Rugged all-in-one wireless system for presenters and moderators
  • Robust bodypack transmitter and unobstrusive clip-on microphone ME 2 Lavalier-II (omni-directional) or ME 4 (cardioid) with high speech intelligibility for daily use on stage
  • True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Fast frequency allocation for up to 12 receivers via new linking functionality
  • Up to 20 compatible channels
  • Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
  • Transmission Range: up to 100 meters / 330'
  • High RF output power (up to 30 mW) depending on country regulations

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Capture pristine audio with this Sennheiser wireless lavalier microphone system, ideal for interviews.
  • Enjoy exceptional sound quality and reliable performance with the ME 4 cardioid lavalier microphone.
  • Achieve clear and consistent audio for film, broadcast, or stage with this wireless microphone set.
  • Experience freedom of movement with a bodypack transmitter offering up to 8 hours of battery life.
  • Ensure seamless connectivity with a true diversity receiver minimizing dropouts for uninterrupted audio.
  • Confidently record with a wide frequency range (566-608 MHz) minimizing interference for clear sound.

What's in the box:

  • EM 100 G4 True Diversity Receiver
  • SK 100 G4 Bodypack Transmitter
  • ME 4 Lavalier Cardioid Microphone
  • GA 3 Rackmount Set
  • Power Supply
  • 2x AA Batteries
  • 2x Rod Antennas
  • RJ 10 Cable
  • Quick Guide
  • Safety Guide
  • Manufacturer Declaration Sheet
  • Frequency Supplement Sheet
  • Sennheiser 2 Year Limited Warranty
