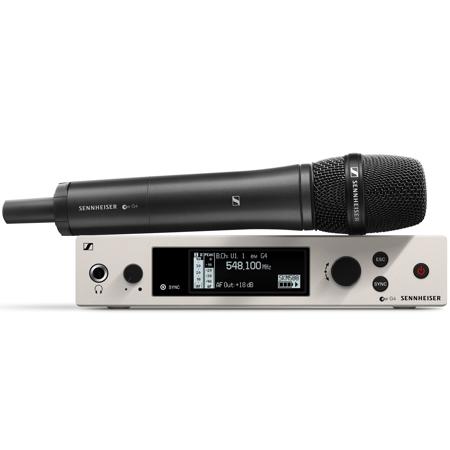

Sennheiser ew 500-G4-935 Wireless Vocal Set with Handheld Transmitter, MMD 935-1 Microphone Head, AW+: 470 - 558 MHz

The pro's choice. Renowned sound engineers rely on ew 500 G4's flexibility, especially when handling multi-channel settings on the world's music stages. Up to 88 MHz bandwidth, up to 32 channels. Ethernet connection for Wireless Systems Manager (WSM) control software included for advanced frequency coordination in multi-channel setups.

The pinnacle of the evolution series, powered by Sennheiser's renowned e 900 capsules e 935, e 945, and e 965 on a lightweight black aluminum handheld transmitter, ready to take the world's biggest live stages.

Architect's Specification
A wireless RF transmission system consisting of a stationary receiver and a handheld vocal radio microphone with a microphone head.

The system operates within ten UHF frequency ranges, with a switching bandwidth of up to 72 MHz: 470 - 558 MHz, 52 - 558 MHz, 558 - 608 MHz, 558 - 626 MHz, 606 - 678 MHz, 626 - 698 MHz, 718 - 790 MHz, 790 - 865 MHz, 806 - 810 MHz, 925 - 937.5 MHz; receiving frequencies are 2,880 per range and are tunable in 25 kHz steps. The system features 20 fixed frequency banks with up to 32 compatible frequency presets and 6 user banks with up to 32 user programmable frequencies.

The receiver is menu-driven with a backlit OLED display showing the current frequency, frequency bank and channel number, metering of RF level, metering of AF level, lock status, pilot tone evaluation, muting function, and battery status of the associated transmitter. An auto-lock feature is provided to prevent settings from being accidentally altered. The receiver provides a sound check mode.

Some receiver parameters such as receiving frequency, receiver name and pilot tone setting are synchronizable with the associated transmitter via an integrated infrared interface.

The receiver features a balanced XLR-3M audio output with a maximum output of +18 dBu along with an unbalanced 1/4" (6.3 mm) audio output with a maximum output of +12 dBu. A headphone output with headphone volume control are provided and utilize a 1/4" (6.3 mm) stereo jack socket. The receiver has an Ethernet port (RJ-45) for remote network-based monitoring and control using the Sennheiser Control Cockpit or the Sennheiser Wireless System Manager software. Two BNC-type input sockets are provided for connecting the antennas.

Nominal/peak deviation is +/-24 kHz/ +/-48 kHz. Squelch threshold is defeatable (off) or adjustable from 5 - 25 dBmicroV in steps of 2 dB.

The receiver incorporates the Sennheiser HDX compander system and a defeatable pilot tone squelch. Sensitivity is < 2 microV for 52 dBA eff S/N with HDX engaged at peak deviation. Adjacent channel rejection is >= 75 dB (typical). Intermodulation attenuation is >= 70 dB (typical); blocking is >= 75 dB. Four selectable equalizer presets are provided: "Flat", "Low Cut" (-3 dB at 180 Hz), "Low Cut/High Boost" (-3 dB at 180 Hz/+5.5 dB at 10 kHz) and "High Boost" (+5.5 dB at 10 kHz). Signal-to-noise ratio at 1 mV and peak deviation is >= 115 dBA. Total harmonic distortion (THD) is <= 0.9 %. The audio output level is adjustable within a 48 dB range in steps of 3 dB.

The receiver operates on 12 V power supplied from the NT 2-3 CW mains unit (for 100 - 240 V AC, 50/60 Hz). Power consumption is 350 mA. The receiver has a rugged metal housing; dimensions are approximately 202 x 212 x 43 mm (7.95" x 8.35" x 1.69"). Weight is approximately 980 grams (2.16 lbs). Operating temperature shall range from -10 Degree C to +55 Degree C (+14 Degree F to +131 Degree F).

The receiver is the Sennheiser EM 300-500 G4.

The radio microphone is menu-driven with a backlit LCD display showing the current frequency, frequency bank and channel number, metering of AF level, transmission status, lock status, pilot tone transmission, muting function, and battery status. An auto-lock feature is provided to prevent settings from being accidentally altered.

The radio microphone parameters are programmable in the radio microphone menu. Receiver parameters such as receiving frequency, receiver name and pilot tone setting are synchronizable with the radio microphone via an integrated infrared interface.

Nominal/peak deviation is +/-24 kHz/ +/-48 kHz. Frequency stability is <= +/-15 ppm. RF output power at 50 Ohm is switchable between 10 mW (typical, low) and 30 mW (typical, standard) and 50 mW (typical, high).

The radio microphone incorporates the Sennheiser HDX compander system and a defeatable pilot tone squelch. Audio frequency response ranges from 80 - 18,000 Hz. Signal-to-noise ratio at 1 mV and peak deviation is >= 115 dBA. Total harmonic distortion (THD) is <= 0.9 %. Input sensitivity is adjustable within a 48 dB range in steps of 6 dB.

Power is supplied to the radio microphone by two 1.5V AA size batteries or by one Sennheiser BA 2015 rechargeable accupack. Nominal voltage is 2.4 V, current consumption is typical 180 mA at nominal voltage; <= 25 microA when radio microphone is switched off. Operating time is typical 8 hours. The radio microphone has a rugged metal housing; dimensions are approximately 50 mm (1.97") in diameter and 265 mm (10.43") in length. Weight including the batteries is approximately 450 grams (0.99 lbs). Operating temperature ranges from -10 Degree C to +55 Degree C (+14 Degree F to +131 Degree F). A range of microphone heads are available for the radio microphone.

The radio microphone is the Sennheiser SKM 500 G4.
