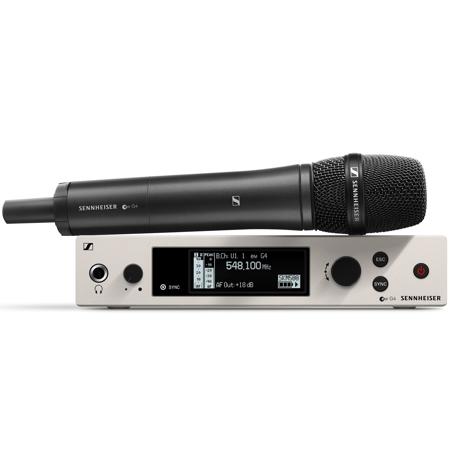

Sennheiser ew 500 Wireless G4 Handheld Microphone System with e945 Capsule AW+: 470 to 558 MHz

SKU: SEW5G4945AWP MFR: 509782
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Sennheiser wireless microphone system, perfect for live performances.
  • Enjoy a wide 470-558 MHz frequency range, ensuring reliable wireless connectivity for any stage or venue.
  • The handheld microphone system offers up to 8 hours of battery life, ideal for extended use without interruption.
  • This wireless microphone system's e945 capsule provides exceptional clarity, even in noisy environments.
  • Set up quickly with the included rackmount set; this wireless system is easy to use for both beginners and pros.
  • Benefit from the durable Sennheiser build, ensuring this wireless microphone system withstands rigorous touring.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Learn
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Sennheiser ew 500-G4-945 Specifications

Receiver: RF Characteristics

Receiver: RF Characteristics

Jump to...
  • Modulation

    Wideband FM

  • Frequency range

    470 - 558 MHz

  • Receiving frequencies

    Max. 2880 receiving frequencies, adjustable in 25 kHz steps
    20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
    6 frequency bank with up to 32 programmable channels

  • Switching bandwidth

    up to 72 MHz

  • Nominal/peak deviation

    +/-24 kHz / +/-48 kHz

  • Receiver principle

    True diversity

  • Sensitivity (with HDX, peak deviation)

    < 2.5 micro V for 52 dBA eff S/N

  • Adjacent channel selection

    Typically >= 75 dB

  • Intermodulation attenuation

    Typically >= 70 dB

  • Blocking

    >= 75 dB

  • Squelch

    5 to 25 dB MicroV in step of 2 dB

  • Pilot tone squelch

    Can be switched off

  • Antenna inputs

    2 BNC sockets

Receiver: AF Characteristics

Jump to...
  • Compander system

    Sennheiser HDX

  • EQ presets

    (switchable, act on line and monitor outputs)
    Preset 1: Flat
    Preset 2: Low Cut (-3 dB at 180 Hz)
    Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
    Preset 4: High Boost (+6 dB at 10 kHz)

  • Signal-to-noise ratio

    (1 mV, peak deviation) >= 115 dBA

  • Total harmonic distortion (THD)

    <= 0.9 %

  • AF output voltage

    (at peak deviation, 1 kHz AF) 6.3 mm jack socket
    (unbalanced): +12 dBu XLR socket
    (balanced): +18 dBu

  • Setting range "AF Out"

    48 dB (3 dB steps)

Receiver: Overall Device

Jump to...
  • Temperature range

    14 Degree F to 131 Degree F (-10 Degree C to +55 Degree C)

  • Power supply

    12 V DC

  • Current consumption

    350 mA

  • Dimensions

    Approx. 7.95 x 8.34 x 1.69" (202 x 212 x 43mm)

  • Weight

    Approx. 2.16 lb (980g)

Transmitter: RF Characteristics

Jump to...
  • Modulation

    Wideband FM

  • Frequency range

    470 - 558 MHz

  • Transmission frequencies

    Max. 2880 frequencies, adjustable in 25 kHz steps
    20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
    6 frequency banks with up to 32 programmable channels

  • Switching bandwidth

    up to 72 MHz

  • Nominal/peak deviation

    +/-24 kHz / +/-48 kHz

  • Frequency stability

    <= +/-15 ppm

  • RF output power at 50 Ohm

    switchable:
    Low: typ. 10 mW
    Standard: typ. 30 mW
    High: typ. 50 mW

  • Pilot tone squelch

    Can be switched off

Transmitter: AF Characteristics

Jump to...
  • Compander system

    Sennheiser HDX

  • AF frequency response

    80 - 18,000 Hz

  • Signal-to-noise ratio

    (1 mV, peak deviation) >= 115 dBA

  • Total harmonic distortion

    (THD)<= 0.9 %

  • Setting range for input sensitivity

    48 dB, adjustable in 6 dB steps

Transmitter: Overall Device

Jump to...
  • Temperature range

    14 Degree F to 131 Degree F (-10 Degree C to +55 Degree C)

  • Power supply

    2 AA batteries, 1.5 V or BA 2015 accupack

  • Nominal voltage

    3 V battery / 2.4 V rechargeable battery

  • Current consumption

    At nominal voltage: typ. 180 mA
    With transmitter switched off: <= 25 micro A

  • Operating time

    Typically 8 h

  • Dimensions

    Approx. diameter 1.96 x 10.4" (50 x 265mm)

  • Weight

    Approx. 0.99 lb (450g) (incl. batteries)

MMD 945-1

Jump to...
  • Transducer principle

    dynamic

  • Sensitivity

    1.8 mV/Pa

  • Sound pressure level

    154 dB SPL

  • Pick-up pattern

    supercardioid

  • UPC Code

    615104368934

Related Articles & Videos

The Best Wireless Microphones for Cameras

The Best Wireless Microphones for Cameras

Every good DP or cinematographer knows how vital sound is to film and video production. From whispering dialogue and creaking doors to the frenzied voices in epic crowd scenes, sound adds so many dimensions to moving images. ...
Read more

About Sennheiser ew 500-G4-945

Make your audio performances stand out with the high-quality ew 500 Wireless G4 Handheld Microphone System with e945 Capsule AW+: 470 to 558 MHz. This professional-grade wireless microphone system is a top choice among renowned sound engineers worldwide, thanks to its innovative design and reliable performance.

The ew 500 G4 system offers unparalleled flexibility, making it ideal for multi-channel settings on global music stages. With a bandwidth of up to 88 MHz and up to 32 channels, this system ensures clear and stable signal transmission. It also includes an Ethernet connection for the included Wireless Systems Manager (WSM) control software, facilitating advanced frequency coordination in multi-channel setups.

This system is the pinnacle of the evolution series, powered by Sennheiser's renowned e 900 capsules e 935, e 945, and e 965. The lightweight black aluminum handheld transmitter is designed to withstand the rigors of the world's biggest live stages.

The system operates within ten UHF frequency ranges, with a switching bandwidth of up to 72 MHz. It features 20 fixed frequency banks with up to 32 compatible frequency presets and 6 user banks with up to 32 user programmable frequencies. The receiver is menu-driven with a backlit OLED display, providing all the necessary information at a glance.

The receiver also features a balanced XLR-3M audio output and an unbalanced 1/4" (6.3 mm) audio output, along with a headphone output with volume control. It also has an Ethernet port for remote network-based monitoring and control using the Sennheiser Control Cockpit or the Sennheiser Wireless System Manager software.

The handheld radio microphone is menu-driven with a backlit LCD display, and it incorporates the Sennheiser HDX compander system for superior sound quality. The microphone operates on two 1.5V AA size batteries or one Sennheiser BA 2015 rechargeable accupack, ensuring long-lasting performance.

In summary, the ew 500 Wireless G4 Handheld Microphone System with e945 Capsule AW+: 470 to 558 MHz is a durable, reliable, and innovative solution for all your professional audio needs. Whether you're performing live, recording in a studio, or broadcasting, this system delivers exceptional sound quality and performance.

Sennheiser ew 500-G4-945 Features

  • True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Up to 32 compatible channels
  • Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
  • Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
  • High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Experience superior sound quality with this Sennheiser wireless microphone system, perfect for live performances.
  • Enjoy a wide 470-558 MHz frequency range, ensuring reliable wireless connectivity for any stage or venue.
  • The handheld microphone system offers up to 8 hours of battery life, ideal for extended use without interruption.
  • This wireless microphone system's e945 capsule provides exceptional clarity, even in noisy environments.
  • Set up quickly with the included rackmount set; this wireless system is easy to use for both beginners and pros.
  • Benefit from the durable Sennheiser build, ensuring this wireless microphone system withstands rigorous touring.

What's in the box:

  • EM 300-500 G4 True Diversity Receiver
  • SKM 500 G4 Handheld Transmitter
  • MMD 945-1 Microphone Head
  • MZQ 1 Microphone Clamp
  • 2x AA Batteries
  • Power Supply
  • GA 3 Rackmount Set
  • 2x Rod Antennas
  • Quick Guide
  • Safety Guide
  • Manufacturer Declaration Sheet
  • Sennheiser 2 Year Limited Warranty
